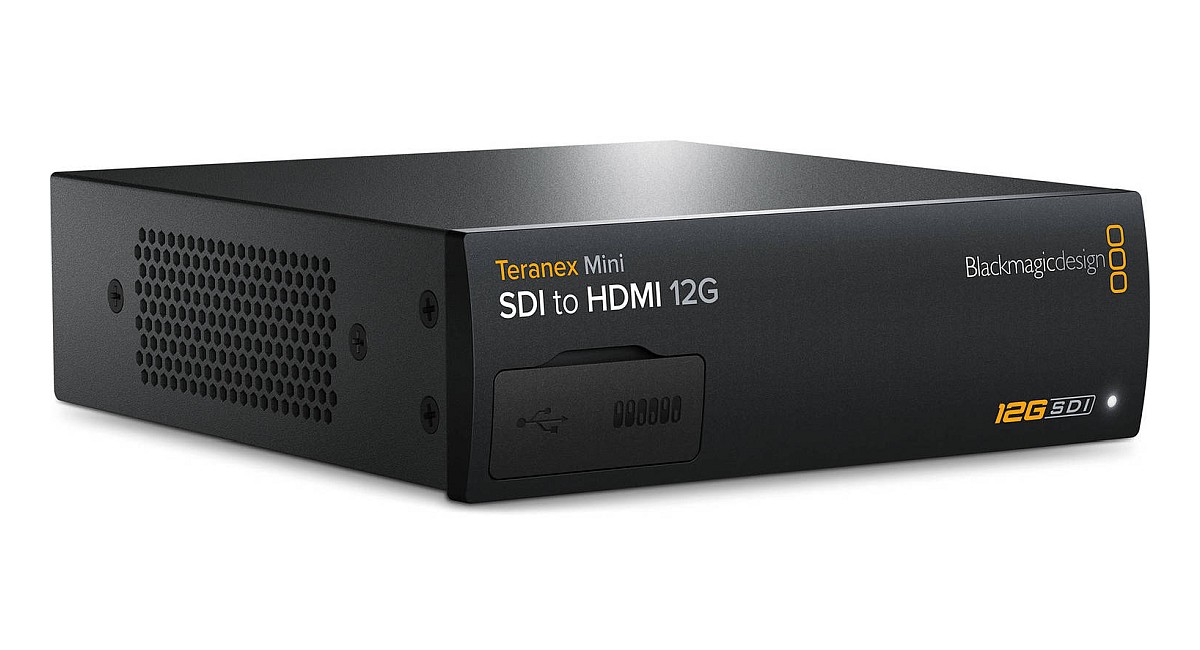

Blackmagic Design Teranex Mini SDI to HDMI 12G Konverter
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Fejlett nagy adatátviteli sebességű jelátalakító
• 4K DCI 4096x2160p
• 12G-SDI bemenet és loopout
• AES/EBU-ra kapcsolható XLR csatlakozók
• Ethernet port távvezérléshez vagy PoE-hez
• Intelligens hőelvezetés
• 3 egység 1U rack-re szerelhető 19"-os rack-ben
• Opcionális LCD intelligens előlap
• 4K DCI 4096x2160p
• 12G-SDI bemenet és loopout
• AES/EBU-ra kapcsolható XLR csatlakozók
• Ethernet port távvezérléshez vagy PoE-hez
• Intelligens hőelvezetés
• 3 egység 1U rack-re szerelhető 19"-os rack-ben
• Opcionális LCD intelligens előlap
Blackmagic Design Teranex Mini SDI to HDMI 12G Specifications |
|||
| Connections | |||
SDI Video Inputs |
1 x 12G-SDI SD/HD/2K/4K auto switching. | ||
SDI Video Outputs |
1 x 12G-SDI loop output. | ||
HDMI Video Outputs |
1 x HDMI 2.0 type A connector with support for 2160p60. | ||
Analog Audio Outputs |
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output. | ||
Digital Audio Outputs |
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output. | ||
Embedded Audio Support |
8 channels. | ||
Multi Rate Support |
270MB, 1.5G, 3G, 6G and 12G. | ||
Updates and Configuration |
USB or Ethernet. | ||
Reclocking |
Yes | ||
SDI Input Standards |
|||
Power Consumption |
4.5Watt (Typical) | ||
Operating Environment Temperature |
-10~40℃ | ||
Dimensions |
105mm x 66mm x 32mm (Antennas not included) | ||
Weight |
200g (Antennas included) | ||
| Receiver | |||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI | ||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 | ||
SDI Video Rates |
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SD | ||
SDI Video Sampling |
4:2:2 and 4:4:4 | ||
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. | ||
| SDI Color Precision | 4:2:2 and 4:4:4 | ||
| SDI Color Space | YUV and RGB. 33 point LUTs can be loaded via Teranex Utility. | ||
| HDMI Output Standards | |||
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL | ||
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p | ||
| HDMI Color Space | REC 601, REC 709 | ||
| HDMI Color Precision | YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility. | ||
| Software | |||
| Software Control | Mac™ and Windows™ software upgrade via USB or Ethernet. | ||
| Internal Software Upgrade | Via included updater application. | ||
| Settings Control | |||
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility. | ||
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons. | ||
| Power Requirements | |||
| Power Supply | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input. | ||
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet). | ||
| Power Consumption | 16 Watts | ||
| Operational Voltage Range | 100 - 240V AC | ||
• Blackmagic Design Teranex Mini SDI to HDMI 12G Konverter
• Szoftver SD kártya
• 3 év jótállás
• Szoftver SD kártya
• 3 év jótállás
