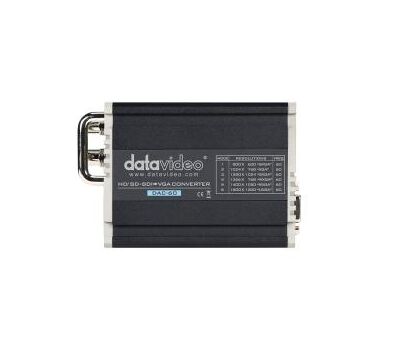

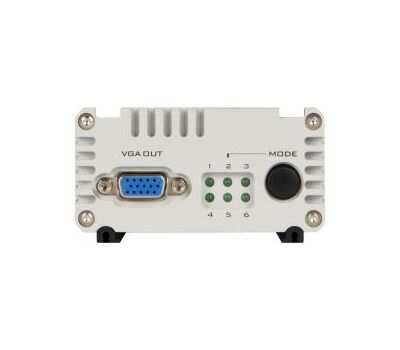

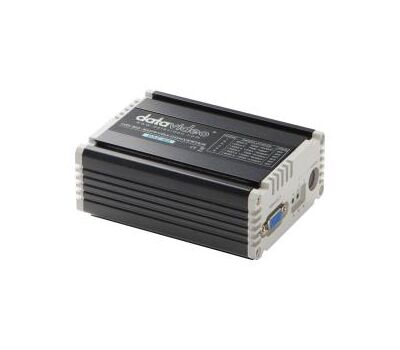

Datavideo DAC-60 SDI / VGA konverter
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
The Datavideo DAC-60 is a HD/SD-SDI to VGA converter. It's designed for use with equipment such as projectors, plasma TV, and LCD screens.
- Supports Brightness, Contrast, Hue and Saturation of Adjustment
- Supplied with a Windows application that connects via USB and enables adjustment of the colour, contrast or saturation
- Settings from the application are retained when the computer and power are removed
- SDI loop through is unaffected by the adjustments to the VGA signal
- Dual output available (SDI & VGA)
- Supports 3G/HD/SD-SDI format :
- SD - 720 x 480 i / 720 x 576 i
- HD - 1280 x 720 50p/60p/59.94p
- 1920 x 1080 50i/60i/59.94i
- 1920 x 1080 24p/25p/30p
- 3G - 1920 x 1080 50p/60p/59.94p Support 525i & 625i SD D1 format - Auto 3G/HD/SD-SDI detection
- VGA output formats:
800 x 600
1024 x 768
1280 x 1024
1366 x 768
1400 x 1050
1600 x 1200 - Update (5-9-2014): The firmware update brings more widescreen resolutions. Please refer to your distributor for the FW update:
- 800 x 600
- 1024 x 768
- 1280 x 800
- 1366 x 768
- 1600 x 900
- 1920 x 1200
- Datavideo DAC-60 SD/HD/3G-SDI to VGA Scaler and Converter
- Power Supply and Cord
- User Adjust Tool Software CD
- Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase
| Conversion | 3G/HD/SD-SDI to VGA |
|---|---|
| Video inputs | 1x 3G/HD/SD-SDI |
| Loop Through | Yes |
| Video Outputs | 1x VGA |
| Audio inputs | 2CH SDI Audio embedded |
| Audio Outputs | N/A |
| Supported Video Input Format | 480i (NTSC), 576i (PAL), 720p (50/59.94/60Hz), 1080i (50/59.94/60Hz), 1080p (23.98/24/25/29.97/ 30/50/59.94/60Hz) |
| Output Resolutions | Sel.: 800x600 (60Hz), 1024x768 (60Hz) 1280x800 (60Hz), 1280x1024 (60Hz), 1366x768 (60Hz), 1400x1050 (60Hz), 1600x1200 (60Hz), 1920x1080 (60Hz), 1920x1200 (60Hz) |
| Equalizer | N/A |
| Reclock | Yes |
| SDI Cable Drive | Yes |
| Power | DC 12V, 3.6 watts |
| Remarks | - Heavy duty design, robust metal casing - Low power consumption (30 ~ 50% less than regular converters) - Low heat dissipation, ideal for long hour operation in normal ventilated environment - Supports wide range of 3G video formats including 1080p 50/59.94/60Hz (DAC-8P/9P/50S/60/60) - Supports YUV and RGB color space (DAC-8P/9P/70) - Can be rackmounted using optional RMK-2 2RU Rackmount Kit - Can be used with DAC accessories: MB-4 DAC Series Battery Holder, and MB-5 DAC Series Tripod Mount |
