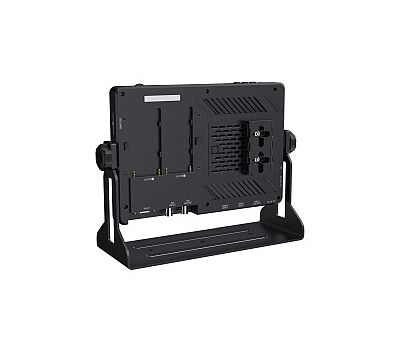

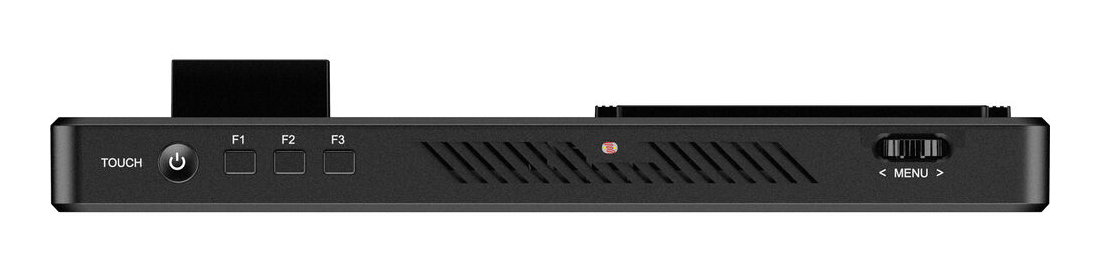

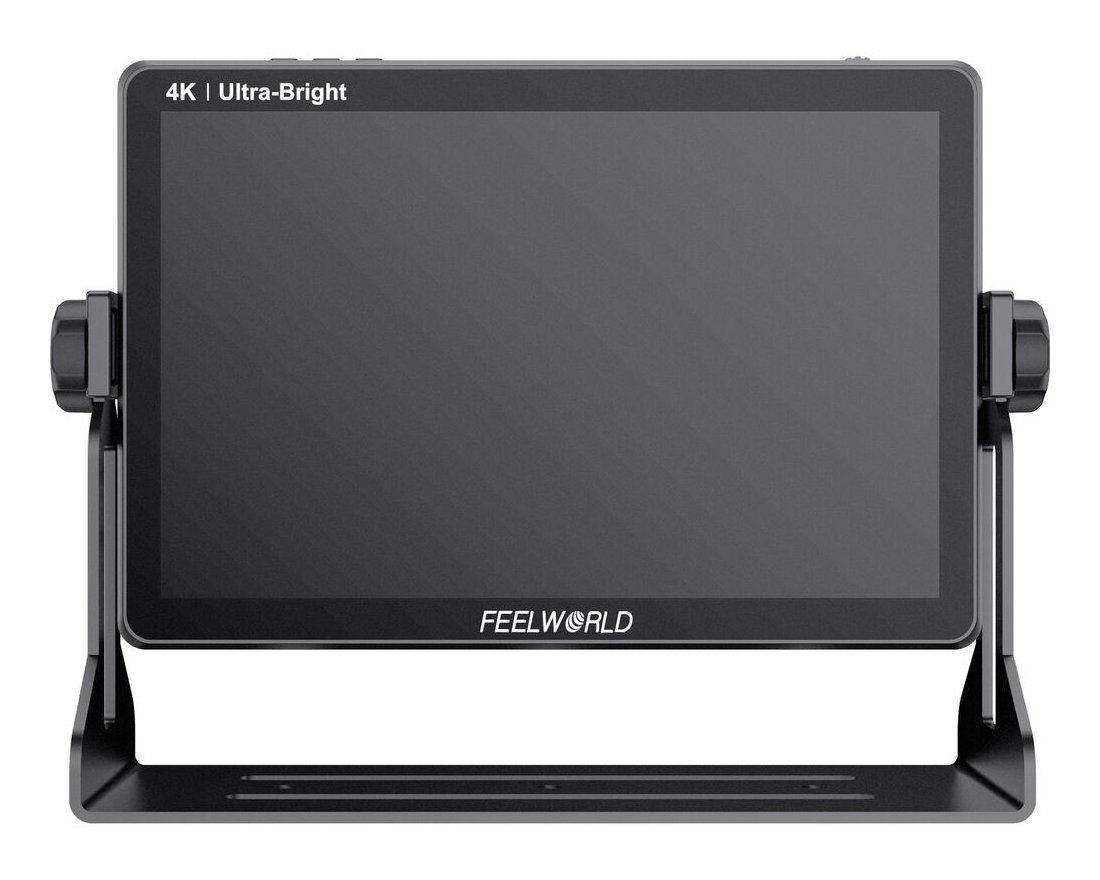

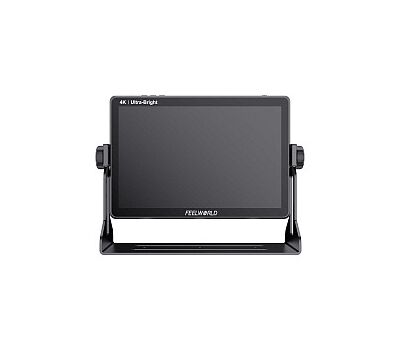

Feelworld LUT11S 2000 nit-es 4K SDI/HDMI Touch Screen monitor
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• 10,1" 1920 x 1200 IPS érintőképernyős LCD kijelző
• Fényerő: 2000 cd/m2
• Bemenetek: SDI, 2x HDMI
• Kimenetek: SDI, HDMI
• 3D-LUT, HDR
• Tally
• Waveform, Vector, Focus Peaking, Histogram, Embedded Audio
• Tápellátás: 7-24V DC és NP-F akkumulátor
• Fényerő: 2000 cd/m2
• Bemenetek: SDI, 2x HDMI
• Kimenetek: SDI, HDMI
• 3D-LUT, HDR
• Tally
• Waveform, Vector, Focus Peaking, Histogram, Embedded Audio
• Tápellátás: 7-24V DC és NP-F akkumulátor
• Feelworld LUT11S
• 1 év jótállás
• 1 év jótállás
A csomag akkumulátort és AC adaptert nem tartalmaz.
Feelworld LUT11S Specifications |
|||
| Display | |||
|
Screen Size
|
10.1” IPS | ||
| Resolution | 1920×1200 pixels | ||
| Pixel Pitch | 0.113(W) x 0.113(H) (mm) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 2000cd/m² | ||
| Contrast Ratio | 800:1 | ||
| Backlight | LED | ||
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) | ||

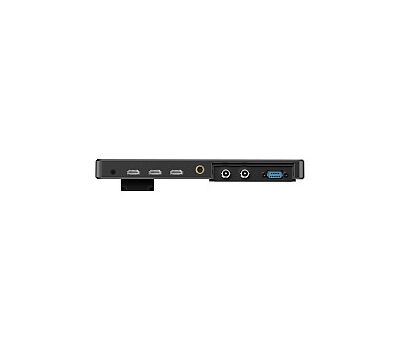

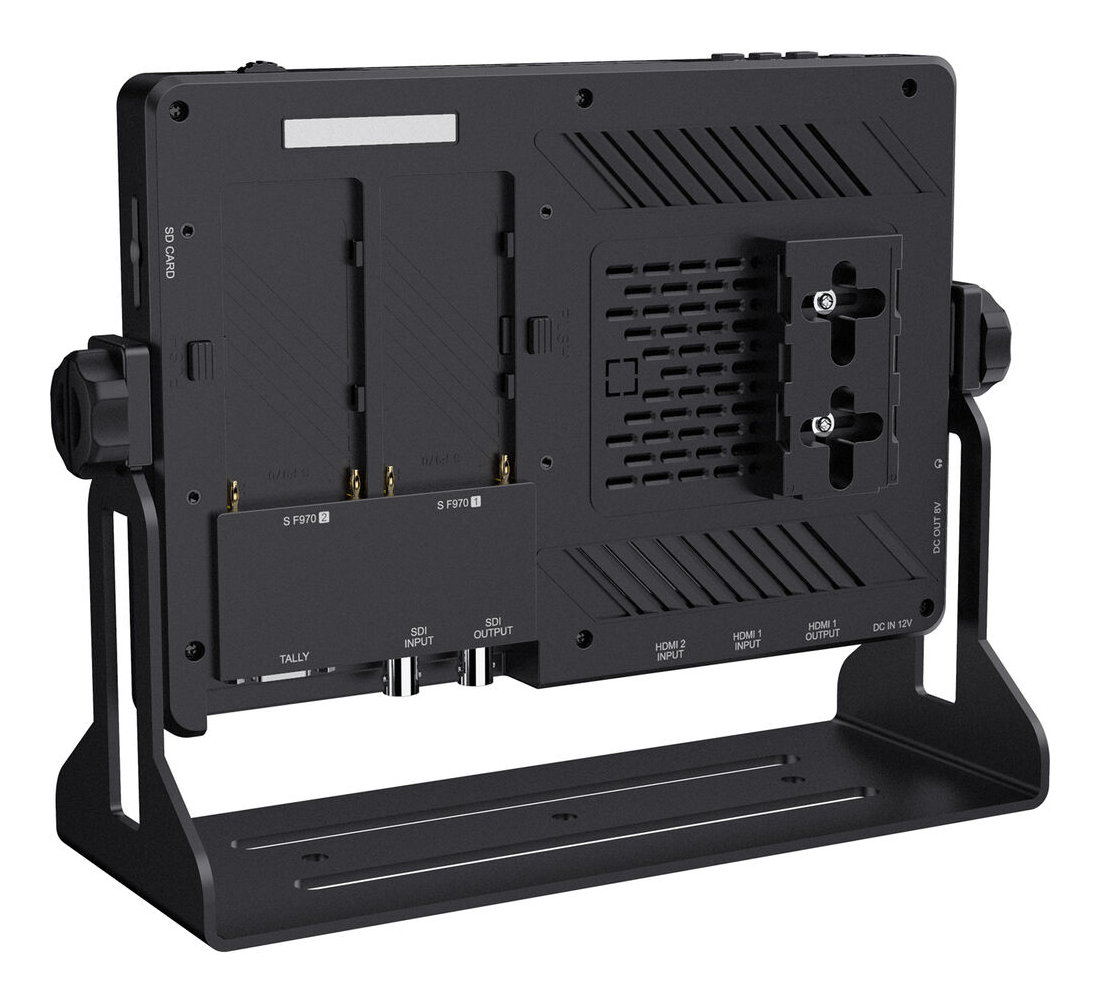

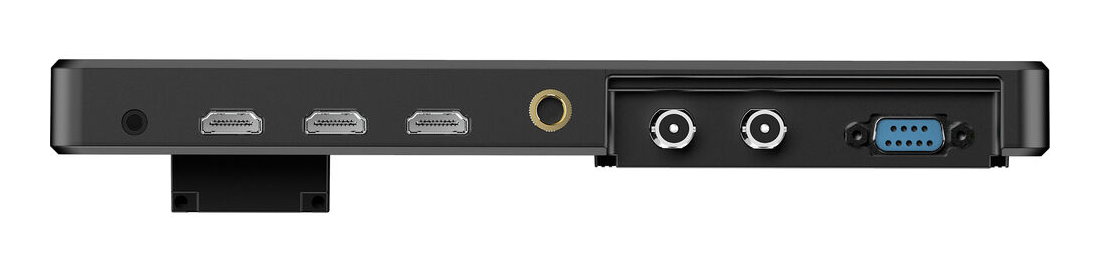

| Input | |||
| HDMI | 2×HDMI | ||
| SDI | 1×3G-SDI | ||
| Tally | 1 (9 Pin Connect) | ||
| Output | |||
| HDMI | 1 | ||
| 3G-SDI | 1 | ||
| DC | Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor | ||
| Audio | |||
| Audio | 3.5mm Stereo Headphone | ||
| Support formats | |||
| SDI Input | 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) |
||
| SDI Output | 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i(60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) |
||
| HDMI Input/Output | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 3840x2160p (60/50/30/29.97/25/24/23.98) 4096×2160p (60/50/30/29.97/25/24/23.98) |
||
| General | |||
| Input Voltage | DC7～24V | ||
| Power Consumption | ≤28W | ||
| Working Temperature | -10°C~50°C | ||
| Storage Temperature | -20°C~60°C | ||

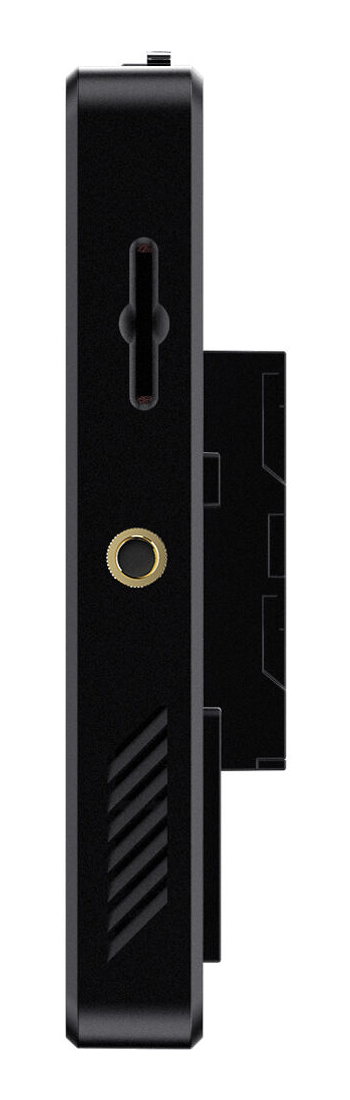

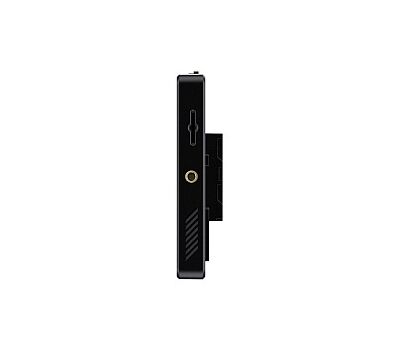

| Install Way | 1/4"-20 Thread Socket ( Left, Right, Bottom) | ||
| Unit Size | 242Lx156Hx23D(mm) | ||
| Unit Weight | 810g | ||
