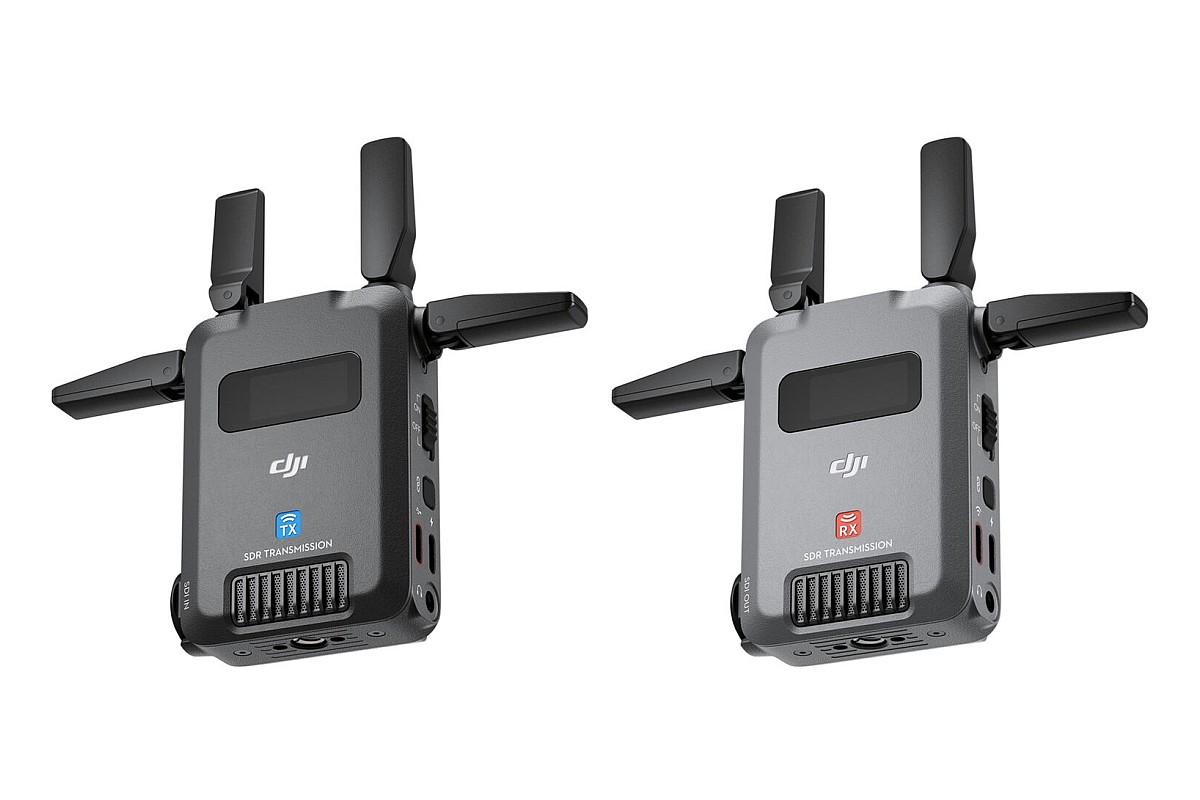

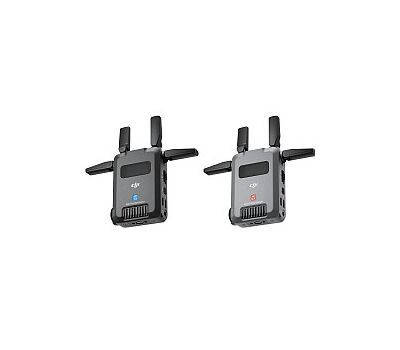

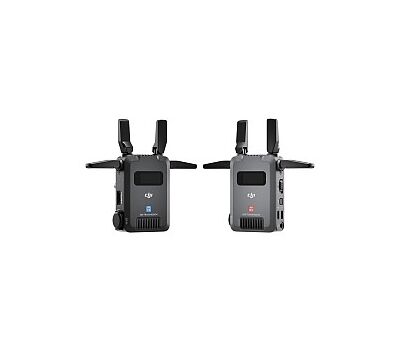

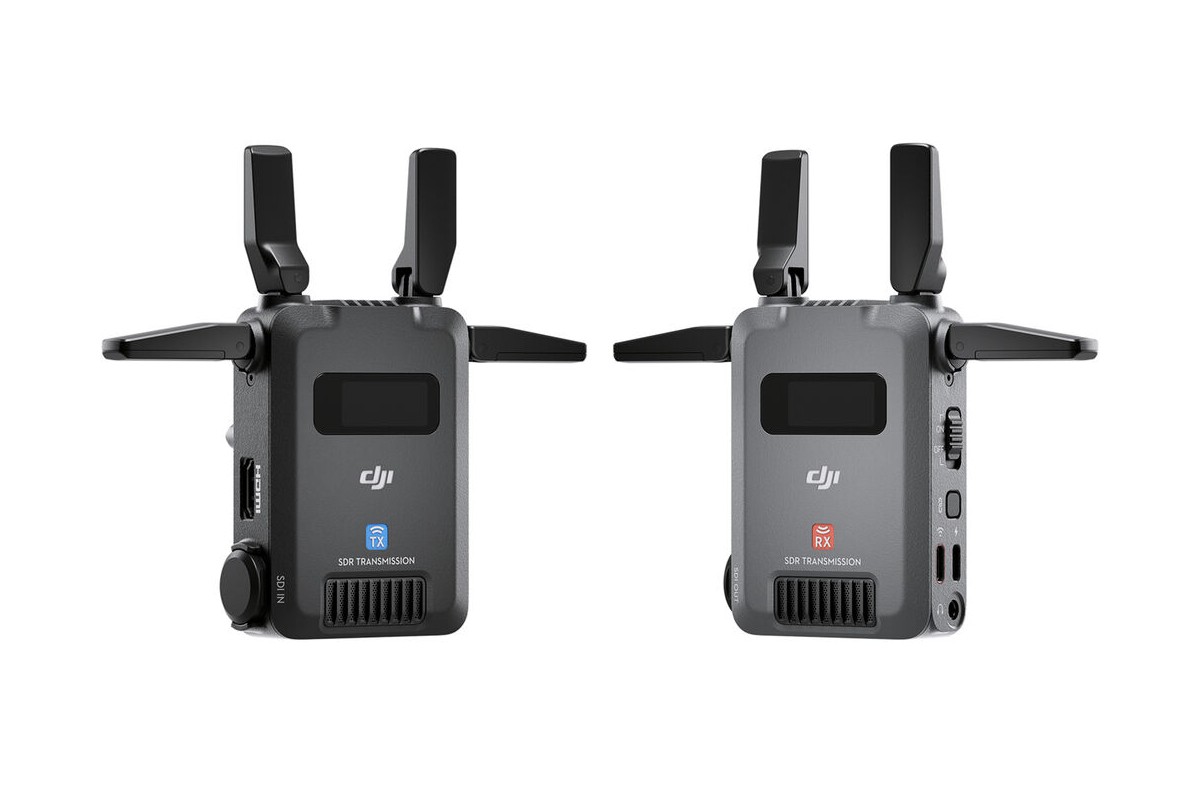

DJI SDR Transmission Combo HDMI/SDI jeladó-jelvevő szett
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
DJI SDR Transmission Combo Wireless Transmission System
- SDR Tri-Bandwidth technológia, stabil és interferencia-mentes
- Videó interfész:
- HDMI és 3G-SDI video be- és kimenet,
- RX USB-C videó kimenet - 1080p60 videó átvitele beágyazott audioval
- Működési frekvencia: 2,4 GHz, 5,8 GHz és DFS, automatikus frekvenciaugrás
- Átvitel táblagépre/telefonra vagy SDR-vevőre
- Vezeték nélküli SDR hatótávolság akár 3 km
- 35 ms késleltetés
- 20 Mb/s bitsebesség
- Broadcast & Control mód
- Broadcast módban korlátlan vevőegység csatlakoztatható
- RX és TX 3,5mm csatlakozóval: lehetővé teszi a független kommunikációt a két egység között
- Tápellátás: NP-F akkumulátor, USB-C
DJI SDR Transmission Combo HDMI/SDI jeladó-jelvevő szett - Vezeték nélküli videó
Video i/o:
- HDMI 1.3, 1.4
- 3G-SDI
- SDI és HDMI
Videó formátum:
- 1080p 50/60
Hatótáv:
- 2000 m felett
Hatótáv, m:
3000m
Késleltetés:
- 11-35 ms
Működési frekvencia:
- 2,4 GHz
- 5 GHz
Intercom funkció:
- Szeparált audio (intercom is)
Egyéb i/o:
- USB ki (RX, videó)
Szimultán használat:
- Nincs megadva
Csatlakoztatható RX:
- 5 db és felette
Megjelenítés iOS vagy Android eszközön:
- Támogatott
Akkumulátor:
- Sony NPF (L-sorozat)

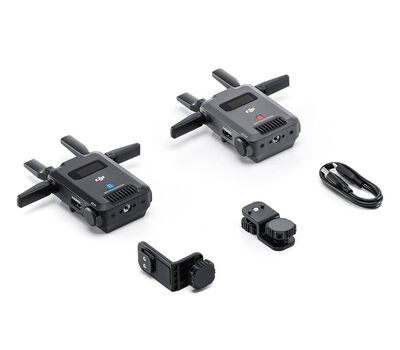

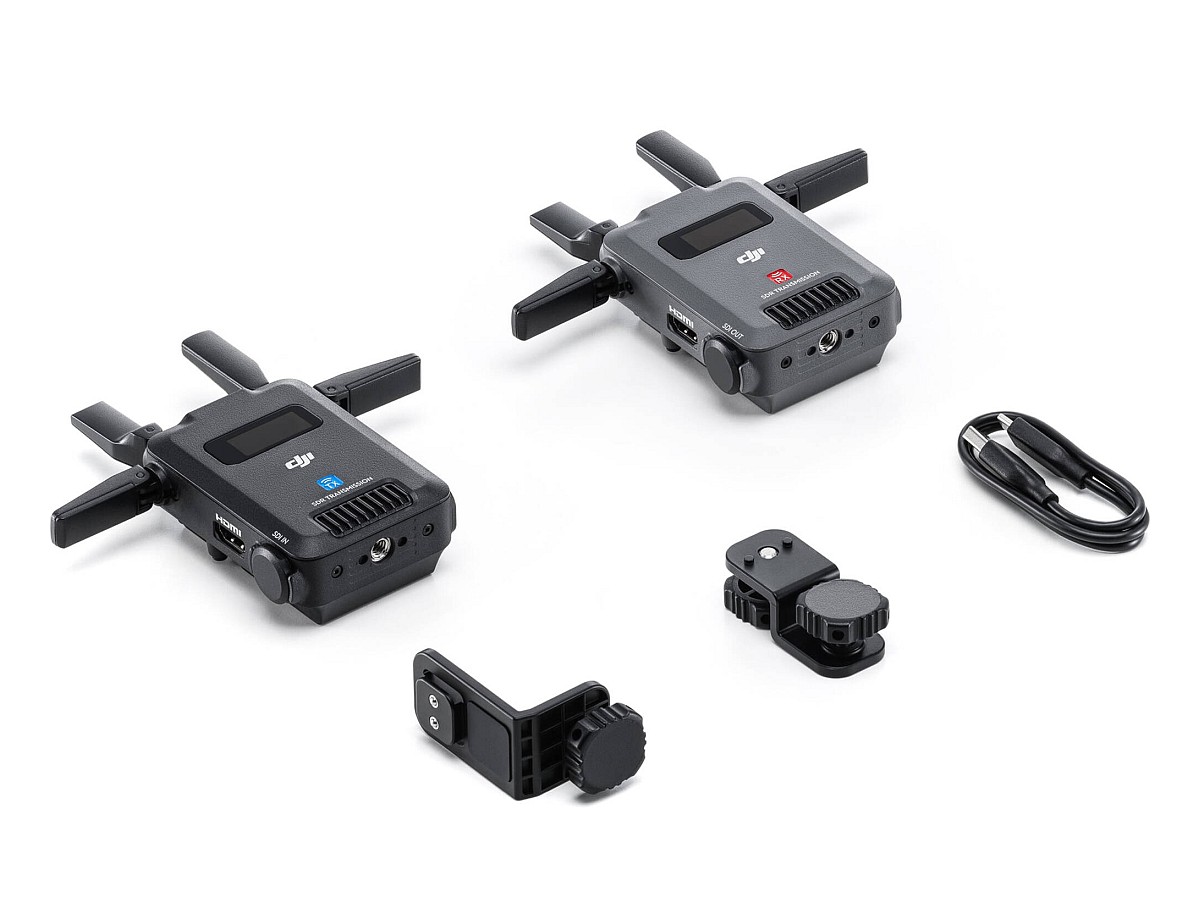

DJI SDR Transmission Combo szett csomag tartalma
- DJI SDR Transmission Combo jeladó
- DJI SDR Transmission Combo jelvevő
- Gimbal rögzítő adapter
- USB-A - USB-C kábel
Akkumulátor nem tartozék.
DJI SDR Transmission Combo szett csomag tartalma
| Transmitter | |
|
Weight
|
Approx. 145 g (including antennas) |
|
Dimensions
|
86.5×64×32 mm (L×W×H, excluding antennas) |
|
Ports
|
SDI Input Port HDMI Input Port 3.5mm Stereo Jack USB-C Firmware Update Port USB-C Power and Gimbal Communication Port |
|
Operating Frequency
|
SDR Operating Frequency Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.725-5.850 GHz DFS Frequency Band: 5.470-5.725 GHz 5.8 GHz is prohibited in some countries/regions. /Check local laws and regulations for more information. 5.600-5.650 GHz is not used./ Wi-Fi Operating Frequency 2.4000-2.4835 GHz 5.150-5.250 GHz |
|
Transmitter Power (EIRP)
|
SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.470-5.725 GHz: < 30 dBm (FCC) < 23 dBm (CE/MIC) 5.725-5.850 GHz: < 30 dBm (FCC) < 14 dBm (CE) ＜30 dBm (SRRC) Wi-Fi: 2.4000-2.4835 GHz: < 26 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz: < 26 dBm (FCC) < 23 dBm (SRRC/CE/MIC) |
|
Wi-Fi Protocol
|
802.11b/a/g/n/ac/ax Supports 2×2 MIMO Wi-Fi |
|
Max Bandwidth
|
SDR: 20 MHz Wi-Fi: 20 MHz |
|
Max Bitrate
|
SDR: 20 Mbps* Wi-Fi: 8 Mbps * Measured in Control mode, with Broadcast mode turned off." |
|
Power Consumption
|
8.2 W Measured at a room temperature of 25° C, when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
|
Power Supply
|
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol) USB-C Power Supply Type 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4 V |
|
Input Video Format
|
1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
|
Input Audio Format
|
SDI embedded, HDMI embedded |
|
Video Transmission System
|
SDR + Wi-Fi |
|
Video Transmission Latency
|
SDR: 80 ms* (including camera and screen display latency) 35 ms* (excluding camera and screen display latency) Wi-Fi: 110 ms** * Measured when shooting 1080p/60fps video with Broadcast mode turned off. ** Measured when shooting 1080p/60fps video. |
|
Video Coding Format
|
H.264 |
|
Max Transmission Distance
|
SDR: 3 km (FCC)* 2 km (CE/SRRC/MIC)* Wi-Fi: 200 m * Measured in Control mode, with Broadcast mode turned off." |
|
Operating Temperature
|
-10° to 40° C (14° to 104° F) |
| Receiver | |
|
Weight
|
Approx. 145 g (including antennas) |
|
Dimensions
|
86.5×64×32 mm (L×W×H, excluding antennas) |
|
Ports
|
SDI Output Port HDMI Output Port 3.5mm Stereo Jack USB-C Firmware Update and Video Output Port USB-C Power Port |
|
Operating Frequency
|
SDR Operating Frequency Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.725-5.850 GHz 5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. |
|
Transmitter Power (EIRP)
|
SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.725-5.850 GHz: < 30 dBm (FCC) < 14 dBm (CE) < 23 dBm (SRRC) |
|
Max Bandwidth
|
20 MHz |
| Max Bitrate | 20 Mbps Measured in Control mode, with Broadcast mode turned off. |
| Power Consumption | 8.3 W Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
| Power Supply | USB-C Power Supply Type 1: 9 V, 2 A (PD protocol) USB-C Power Supply Type 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4V |
| Output Video Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
| Output Audio Format | PCM |
| Video Transmission System | SDR |
| Video Transmission Latency | 80 ms (including camera and screen display latency) 35 ms (excluding camera and screen display latency) Measured when shooting 1080p/60fps video with Broadcast mode turned off. |
| Video Coding Format | H.264 |
| Max Transmission Distance | 3 km (FCC) 2 km (CE/SRRC/MIC) Measured in Control mode, with Broadcast mode turned off. |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
