Magewell Ultra Encode HDMI Plus

Az Ultra Encode HDMI Plus egy univerzális enkóder, amely a HDMI jelet képes átalakítani NDI|HX2/NDI|HX3, H.264/H.265 formátumokra és rögzíteni vagy WiFi hálózaton megosztani, széleskörű streaming protokoll támogatás mellett (RTMP, RTMPS, SRT, RTSP, RTP, HLS, TVU ISSP technológia)

   • Univerzális enkóder
   • HDMI jel átalakítása NDI|HX2/NDI|HX3, H.264/H.265 (HEVC) formátumokra
   • Rögzítés, streamelés
   • DCI 4K60 4:2:0
   • 2x USB-A port, PoE
   • Twitch/YouTube/Facebook Live

   • Magewell Ultra Encode HDMI Plus
   • Tápegység
   • HDMI kábel
   • USB-A to USB-B kábel
   • WiFi antenna
   • T-Bracket
   • 2 év jótállás

Magewell Ultra Encode HDMI Plus Specifications
Input Features
Video	Supports HDMI 1.4a, DVI-D Typical resolution/frame rate: 4096x2160/3840x2160 60fps 4:2:0 4096x2160/3840x2160 30fps 4:4:4/4:2:2 2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720x576 25p/50i (PAL SD) 720x480 29.97p/59.94i (NTSC SD) Color depth: 8/10/12-bit Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Custom EDID Audio HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate
Encoder
Video	Bitrate: NDI® HX3: up to 62.0Mbps, down to 1.5Mbps Others: up to 32.0Mbps, down to 256kpbs Dual-stream encoding: main stream and sub stream
Main stream Resolution/frame rate	4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5 2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 Sub stream Supports enabling/disabling sub stream
Resolution/frame rate	1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
H.264/H.265 (HEVC) Codec	System timecode or RP–188 standard timecode for SEI Message setting H.265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Image rotation: 0°, 90°, 180°, 270° Cropping Output 3D video
Audio	Encode up to 8 audio streams Supports up to 8 source channels Supports mapping between source channels and encoded audio channels Contains 1 x 8-channel stream and 7 x 2-channel streams Bitrate: 256/192/128/96/64/48/32/16 kbps Output source embedded audio and line in through LINE OUT
Live stream
Natively supports streaming to	Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event.
Supports streaming protocols	RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI®\|HX2/NDI® HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®\|HX2 sessions (if included) Supports 1 NDI®\|HX3 sessions exclusively Supports specifying a video stream and an audio stream for each streaming session Supports live stream scheduler
Record
Record	Supports setting and managing recording function and tasks Supports recording to local storage Supports format and performance test Automatically upload files to remote file storage platforms including FTP server, Google Drive, and Dropbox Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording Supports saving recording files in MP4, MOV or TS format Supports specifying a video stream and an audio stream for each recording task Supports customizing recording file name and prefix Supports splitting recording files by time MP4, MOV: up to 4 hours TS: no limit Supports exporting or downloading files through Web UI Supports recording scheduler
Web UI
Web UI	Access Web UI via PC and smartphone View real-time device status Preview encoded video Set input sources Customize encoding parameters Manage streaming destinations, start/stop streaming, view streaming status Manage recording tasks and recorded files Set up to 8 overlays for each stream, including text, picture, and clock Update firmware Supports registering Magewell Control Hub for centralized management Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
API
API	Provides APIs for 3rd party control system
Network Connections
Ethernet	1x RJ45 port, 10/100/1000 Mbps Base-T IEEE 802.3af PoE
Wi-Fi	802.11 a/b/g/n/ac, Station and AP modes supported 4G/5G USB modem (not supplied) USB Net
Input/Output Ports
Operating Environment Temperature	2 x HDMI ports 1 x Input 1 x Loop-through 1 x 3.5mm LINE IN 1 x 3.5mm LINE OUT 2 x USB Type-A
Storage
Storage	USB flash drive (not supplied): FAT32, NTFS, exFAT NAS (not supplied): NFS/CIFS
Indicators
Indicators	LEDs indicating the status of power, input signal, streaming, Ethernet, Wi-Fi connection NDI tally lights (preview-green, program-red)
Power Supply and Consumption	DC 5V/3A Max power consumption: 8.68W
Form Factor	106.6mm x 106.2mm x 25mm
Accessories	1 x 5V Power Adapter 1 x HDMI Cable 1 x USB Type A to Type B cable 1 x Wi-Fi Antenna 1 x T-bracke
Screw Mounting Hole	2 x M3 threaded hole A standard 1/4"-20 socket provided by T-bracket
Working Environment	Operating temperature: 0 to 50 deg C Storage temperature: –20 to 40 deg C Relative humidity: 5% to 90% non-condensing

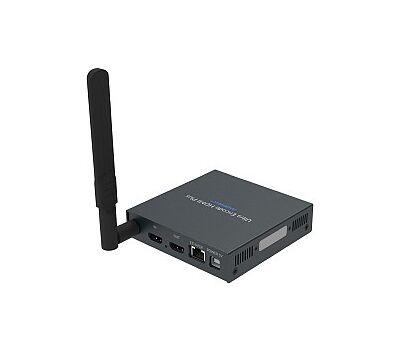

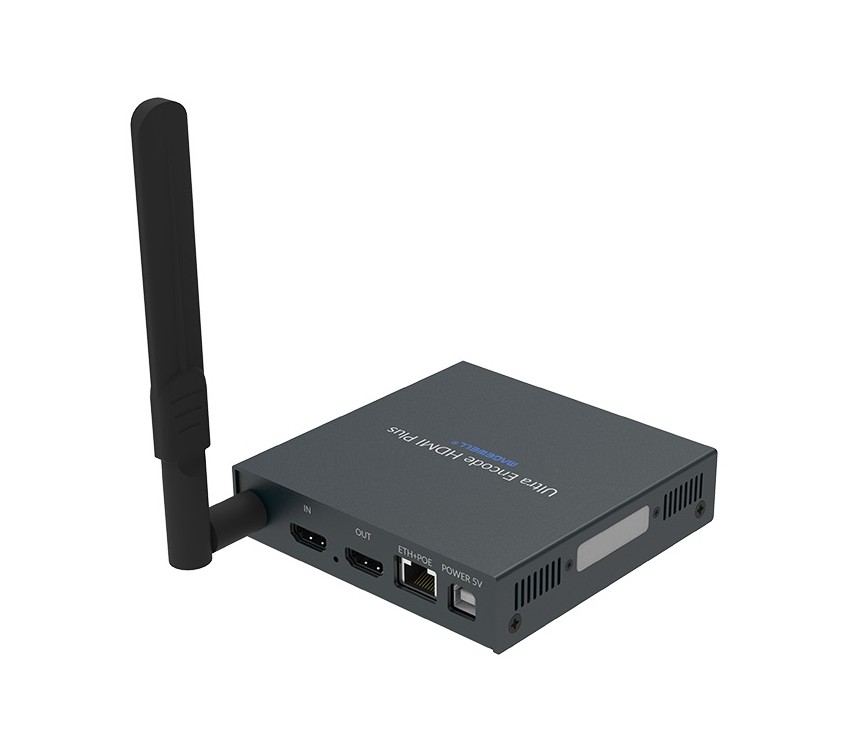

Magewell Ultra Encode HDMI Plus interfész - nagyobb kép

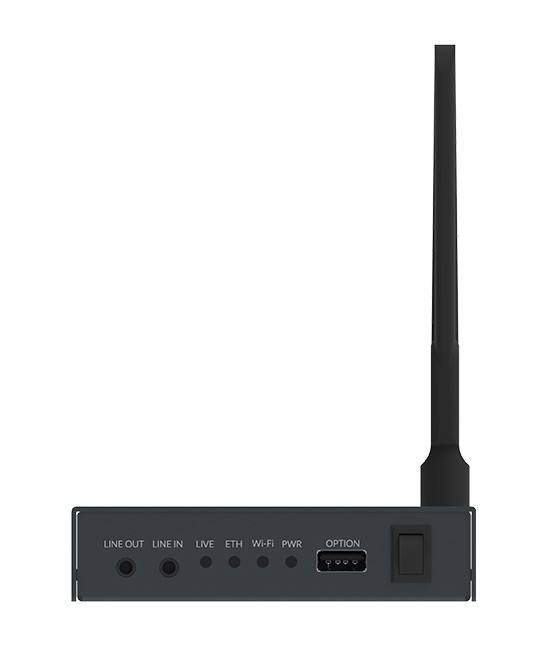

Magewell Ultra Encode HDMI Plus bemenet - nagyobb kép
