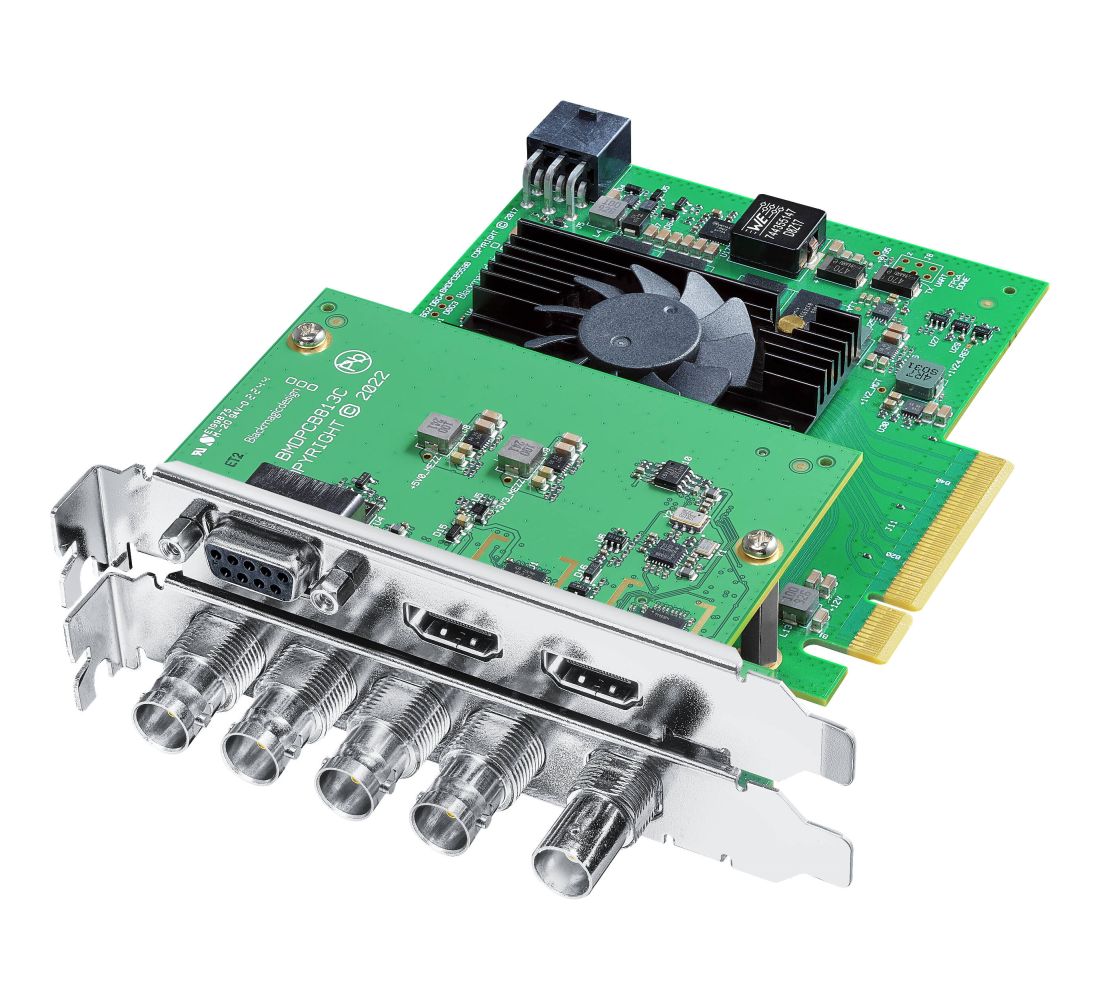

Blackmagic Design Decklink 8K Pro G2 Capture kártya
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
Blackmagic Design DeckLink 8K PRO G2 egy 12G-SDI Capture és Playback kártya, mely SD, HD, 2K, 4K és 8K felbontású videót kezel.
Blackmagic Design DeckLink 8K PRO G2 jellemzők
- Capture és Playback kártya
- Támogatott felbontás: SD/HD, 2K/4K/8K
- Videó interfész:
- 4× kétirányú 12G-SDI
- 1×HDMI 2.1 bemenet és kimenet
- Beágyazott audio átvitel
12G-SDI átvitellel 4K/8K esetén 64 audio csatorna támogatása - Számítógép interfész:
- PCI Express 8 sávos Gen3
- Kompatibilis 8 és 16 sávos PCI Express bővítőhelyekkel
- Támogatja a 8 és 10 bites YUV 4:2:2, valamint a 10 és 12 bites RGB 4:4:4 színmélységet.
- Akár 120 fps sebesség HD és 4K felbontásban, ill. akár 60 fps sebesség 8K felbontásban
Blackmagic Design DeckLink 8K PRO G2 Capture kártya
- Blackmagic Design DeckLink 8K PRO G2 kártya
- HDMI 2.1 Mezzanine kártya
- Tápkábel
- Távtartó- és csavarkészlet
| Blackmagic Design DeckLink 8K PRO G2 Capture | |
| Connections | |
| SDI Video Inputs | 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable |
| SDI Video Outputs | 4 x bi-directional 12G‑SDI Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable |
| SDI Audio Inputs | 16 Channels embedded in SD/HD/2K 64 Channels embedded in 4K/8K |
| SDI Audio Outputs | 16 Channels embedded in SD/HD/2K 64 Channels embedded in 4K/8K |
| HDMI Video Inputs | 1 x HDMI 2.1 |
| HDMI Video Outputs | 1 x HDMI 2.1 |
| HDMI Audio Inputs | 8 Channels embedded in TMDS. 32 Channels embedded in FRL |
| HDMI Audio Outputs | 8 Channels embedded in TMDS. 32 Channels embedded in FRL |
| Sync Input | Tri-Sync or Black Burst |
| Remote Control | 1 x RS‑422 Out |
| Computer Interface | PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots |
| Codecs | |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
| Software | |
| Software Included | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software |
| SDI Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI |
| 8K Video Standards | 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 |
| 8K DCI Video Standards | 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI |
| 3D SDI Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120 |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning |
| Audio Sampling | Television standard sample rate of 48 kHz at 24‑bit |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes |
| Color Space | REC 601, REC 709, REC 2020 |
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics |
| Multiple Rate Support | SDI video connections are switchable between SD/HD/2K/4K and 8K |
| HDMI 2.1 Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95, 1080p96, 1080p100, 1080p119, 1080p120 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48 2160p50, 2160p59.94, 2160p60, 2160p95, 2160p96, 2160p100*, 2160p119*, 2160p120* |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95 DCI, 4Kp96 DCI, 4Kp100 DCI*, 4Kp119 DCI*, 4Kp120 DCI* |
| 8K Video Standards | 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50*, 4320p59.94*, 4320p60* |
| 8K DCI Video Standards | 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI*, 8Kp59.94 DCI*, 8Kp60 DCI* |
| *Uncompressed only | |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit |
| HDMI Video Sampling | 4:2:2, 4:4:4 and 4:2:0* |
| HDMI Color Precision | 8, 10 and 12-bit* |
| *supported video sampling and colour precision are dependent on connected HDMI device capabilities, video resolution and frame rate. |
|
| HDMI Color Space | REC 601, REC 709, REC 2020 |
| HDR Support | Dolby Vision (up to Ultra HD and 4K DCI 60p), HDR static metadata packing, HLG and PQ transfer characteristics |
| HDMI Configuration | HDMI 2.1 supports Deep Color and HDR. Automatically configures to connected display |
| Multiple Rate Support | HDMI video connections are switchable between SD/HD/UHD and 4K |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
| Processing | |
| Colorspace Conversion | Hardware based real time on output |
| 3D Processing | Left eye/right eye dual stream capture and playback (SDI only) |
| Real Time Effects | DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects |
| Operating Systems | |
| Supported OS | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later Windows 10, 64-bit, Windows 11 Linux |
| Power Requirements | |
| Power Consumption | 30W |
| Environmental Specifications | |
| Operating Temperature | +5°C - +50°C |
| Storage Temperature | -20°C - +60°C |
| Relative Humidity | 0% - 90% non-condensing |
| Physical Specifications | |
| Size | 163mm |
| Weight | 295g |
