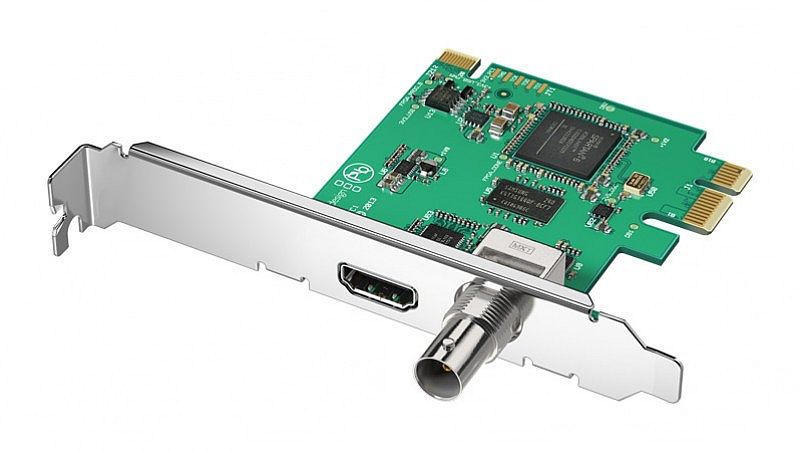

Blackmagic Design DeckLink Mini Recorder
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
SDI és HDMI bejárat PCI-E x1 kivitelben, MAC-es, Windowsos és Linuxos meghajtószoftverrel.
| DeckLink Mini Recorder | ||
| MŰSZAKI JELLEMZŐK | ||
| Csatoló felület: | PCI Express x1 (x1, x4, x8 és x16 csatlakozóban is működik) |
|
| Digitális videó bemenet: | - 1 x 10-bit SD/HD kapcsolható (BNC csatlakozó) -1 x HDMI (A típusú csatlakozó) |
|
| Digitális audió bemenet: | 8 csatorna csomagolt hang SD-ben és HD-ben | |
| Támogatott formátumok: | - SD: 625/25 PAL, 525/29.97 NTSC - HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 és 1080i60 |
|
| Mintavételezés (videó): | 4:2:2 | |
| Mintavételezés (audió): | TV sztenderdnek megfelelő 48 kHz és 24 bit | |
| SDI szabványok: | SMPTE 259M and 292M | |
| Színtér: | REC 601, REC 709 | |
| Színmélység: | 10 bit | |
| Másolásvédelem: | Másolásvédelemmel ellátott anyagok rögzítése nem támogatott! | |
| RENDSZERIGÉNY | ||
Támogatott operációs rendszer: |
- Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite vagy újabb - Windows 7 or Windows 8.x - Linux |
|
• Sony UWP-D27 Kétcsatornás mikroport szett
• 1x Sony URX-P41D
• 2x Sony UTX-B40
• 2x Sony ECM-V1BMP
• 2x Mikrofoncsipesz
• 2x Szélvédő
• 3x övcsipesz
• Vakusín adapter a vevőhöz
• 2x XLR-ről 3,5 mm-es zárható kimeneti kábelek
• 3.5 mm-es kábel 3,5 mm-es reteszelő kábelre
• Jótállás: 1 év
• 1x Sony URX-P41D
• 2x Sony UTX-B40
• 2x Sony ECM-V1BMP
• 2x Mikrofoncsipesz
• 2x Szélvédő
• 3x övcsipesz
• Vakusín adapter a vevőhöz
• 2x XLR-ről 3,5 mm-es zárható kimeneti kábelek
• 3.5 mm-es kábel 3,5 mm-es reteszelő kábelre
• Jótállás: 1 év
Sony UWP-D27 Kétcsatornás mikroport szett Specifications |
|||
| Key Specs | |||
Wireless Technology |
Analog UHF | ||
| Included Transmitters | 2 x Bodypack with Microphone | ||
Diversity |
True Diversity | ||
Max Operating Range |
330' / 100.6 m | ||
Receiver Type |
Camera-Mount |
||
Microphone Type |
Lavalier | ||
Polar Pattern |
Omnidirectional | ||
System |
|||
| Wireless Technology | Analog UHF | ||
Number of RF Channel Frequencies |
2772 | ||
Included Transmitters |
2 x Bodypack with Microphone | ||
Diversity |
True Diversity | ||
| RF Frequency Band | 470.125 to 541.875 MHz | ||
| RF Bandwidth | 72 MHz | ||
| Frequency Step Size | 25 kHz | ||
| RF Channel Scanning | Auto-Scan | ||
| Max Operating Range | 330' / 100.6 m | ||
| Max Transmitters per Band | 16 | ||
| Built-In Recorder | No | ||
Latency |
None | ||
Modulation |
FM | ||
SNR |
96 dB | ||
THD |
<0.9 % | ||
Receiver |
|||
| Receiver Type | Camera-Mount
|
||
| Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) | ||
| Antenna | 2 x 1/4 Wave External, Fixed (Top-Mount) | ||
| Number of Audio Channels |
2
|
||
| Audio I/O | 2 x 1/8" / 3.5 mm TRS Female Balanced Output (Locking) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input (Locking) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking) |
||
| Gain Range | -12 to +12 dB (3 dB Steps) | ||
| Audio Output Level | -60 to -20 dBV | ||
| Frequency Response | 23 Hz to 18 kHz | ||
| USB/Lightning Connectivity | 1 x USB-C Female (Bus Power) | ||
| Power Requirements | Battery, Bus Power (USB) |
||
| Battery Type | 2 x AA (Not Included) | ||
| Approx. Battery Life | 4.5 Hours (Alkaline) | ||
| DC Input Power | 5 VDC (USB Bus Power) | ||
Display & Indicators |
OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Peak, RF Level | ||
| Housing | Metal |
||
| Operating Temperature | 32 to 122°F / 0 to 50°C | ||
| Storage Temperature | -4 to 131°F / -20 to 55°C | ||
Dimensions |
2.5 x 2.8 x 1.4" / 63 x 70 x 35 mm (without Antennas) | ||
Weight |
5.6 oz / 159 g (without Batteries) | ||
| Transmitter | |||
| Transmitter Type | Bodypack |
||
| RF Output Power | 5 / 30 mW | ||
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Male Unbalanced Input (Lockable) | ||
| Muting | Mute Switch | ||
| Audio Input Level | +60 dBV (Mic Level) +4 dBu (Line Level) |
||
| Auto-Level Control | Yes | ||
| Gain Range | 0 to 21 dB (3 dB Steps) | ||
| Frequency Response | 23 Hz to 18 kHz | ||
| Sync Method | NFC | ||
| Antenna | 1 x 1/4 Wave Internal, Fixed (Beltpack) | ||
| Power Requirements | Battery, Bus Power (USB) |
||
| Battery Type | 2 x AA (Not Included) | ||
| Approx. Battery Life | 8 Hours (Alkaline) | ||
| USB/Lightning I/O | 1 x USB-C (Bus Power) | ||
| Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) | ||
| Housing | Metal | ||
| Operating Temperature | 32 to 122°F / 0 to 50°C | ||
| Storage Temperature | -4 to 131°F / -20 to 55°C | ||
| Dimensions | 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas) | ||
| Weight | 5.3 oz / 149 g (without Batteries) | ||
| Microphone | |||
| Microphone Type | Lavalier | ||
| Sound Field | Mono | ||
| Capsule | Electret Condenser | ||
| Polar Pattern | Omnidirectional | ||
| Frequency Range | 40 Hz to 20 kHz | ||
| Sensitivity | -43 dB at 1 kHz | ||
| Output Connector | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) | ||
| Cable Length | 3.9' / 1.2 m | ||
| Operating Temperature | 32 to 122°F / 0 to 50°C | ||
| Storage Temperature | -4 to 131°F / -20 to 55°C | ||
| Length | 0.8" / 19.5 mm | ||
| Diameter | 0.3" / 6.8 mm | ||
| Weight | 0.6 oz / 16.2 g | ||
