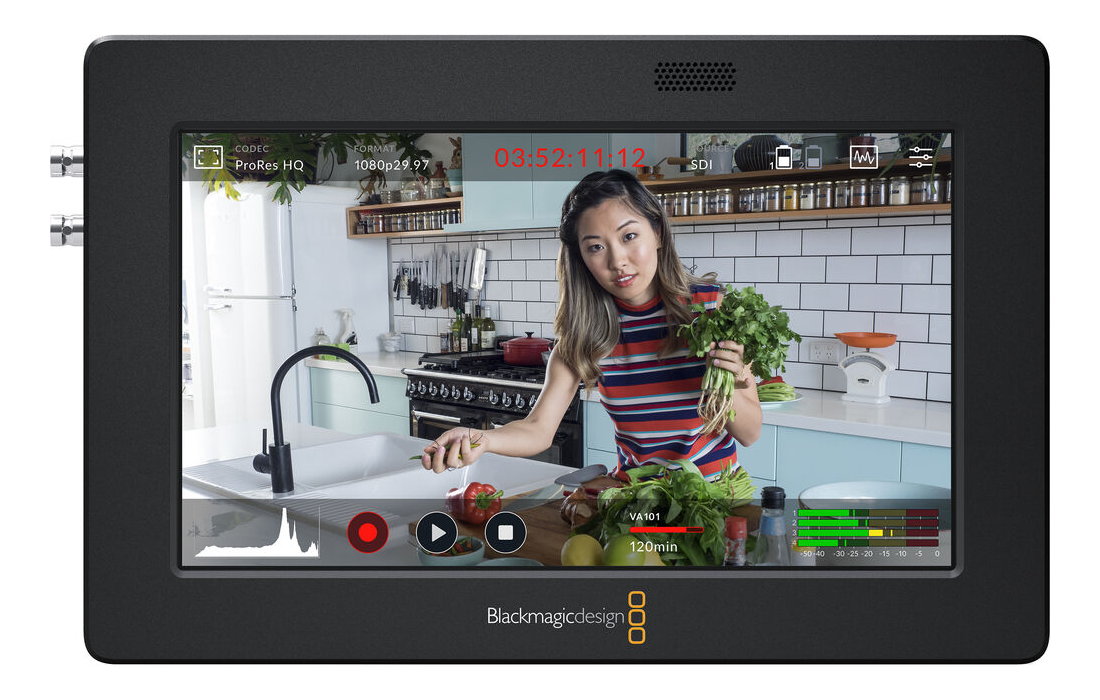

Blackmagic Design Video Assist 5" 3G Rekorder monitor
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Felbontás: 1920 x 1080
• 5" LCD érintőképernyő
• Video bemenetek: HDMI és 3G-SDI
• Akár 1080p60 videó rögzítése
• USB Type-C kimenet
• Tárolás 1 x SDXC/SDHC memóriakártyára
• Loop-Through videokimenetek
• Waveform, Vectorscope, Histogram, 3D LUT
• Focus Peaking, False Color, Zebra

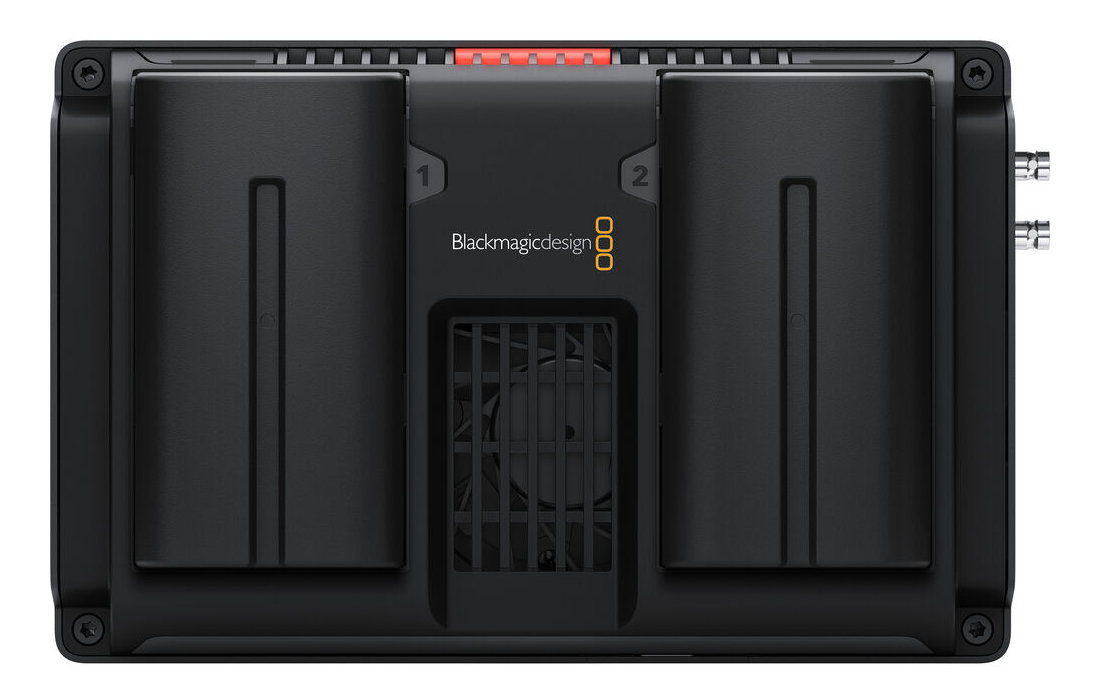

• Kettős Sony L-sorozatú akkumulátor foglalat
• 5" LCD érintőképernyő
• Video bemenetek: HDMI és 3G-SDI
• Akár 1080p60 videó rögzítése
• USB Type-C kimenet
• Tárolás 1 x SDXC/SDHC memóriakártyára
• Loop-Through videokimenetek
• Waveform, Vectorscope, Histogram, 3D LUT
• Focus Peaking, False Color, Zebra
• Kettős Sony L-sorozatú akkumulátor foglalat
• Blackmagic Design Video Assist 5" 3G Rekorder monitor
• Tápegység
• Jótállás: 1 év
Akkumulátor nem tartozék.
• Tápegység
• Jótállás: 1 év
Akkumulátor nem tartozék.
Blackmagic Design Video Assist 5" 3G Specification |
||||

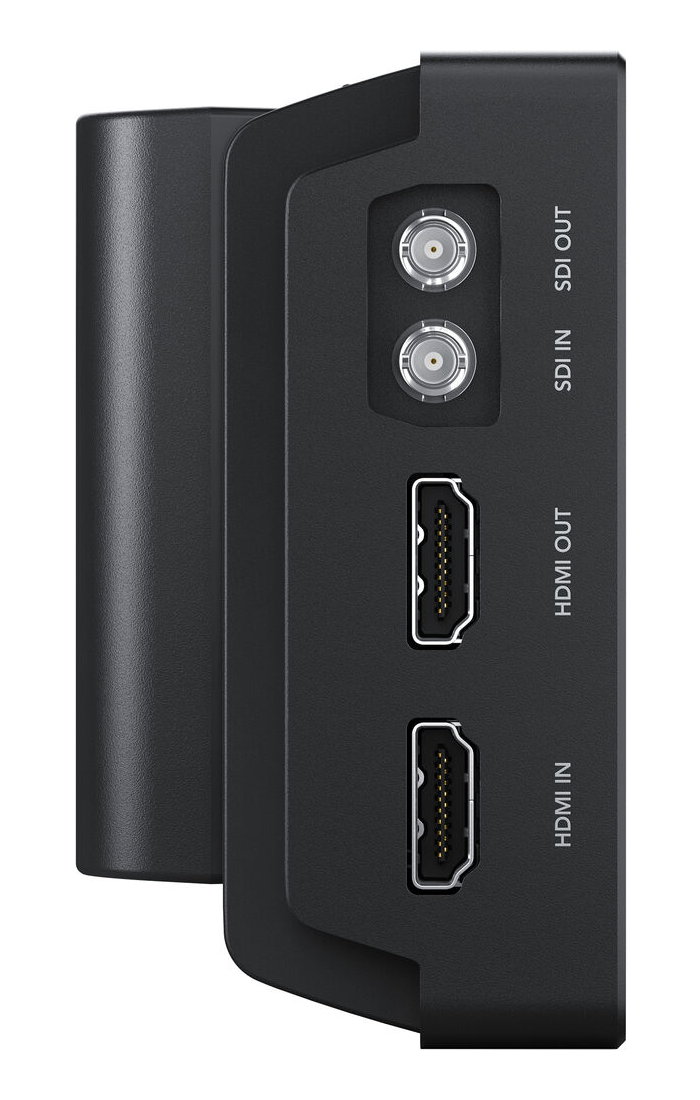

Connections |
||||
SDI Video Inputs |
1 x Micro BNC |
|||
SDI Video Outputs |
1 x Micro BNC |
|||
SDI Rates |
270Mb, 1.5G, 3G |
|||
HDMI Video Inputs |
1 |
|||
HDMI Video Outputs |
1 |
|||
Analog Audio Inputs |
None, embedded audio only |
|||
Analog Audio Output |
1 x 3.5mm headphone jack |
|||
Built in Speaker |
Mono |
|||
Screen Dimensions |
5 inch 1920 x 1080. |
|||
Screen Brightness |
300nits |
|||
SDI Audio Inputs |
16 channels embedded via SDI |
|||
SDI Audio Outputs |
16 channels embedded via SDI |
|||
HDMI Audio Inputs |
8 channels embedded via HDMI |
|||
HDMI Audio Outputs |
8 channels embedded via HDMI |
|||
Remote Control |
None |
|||

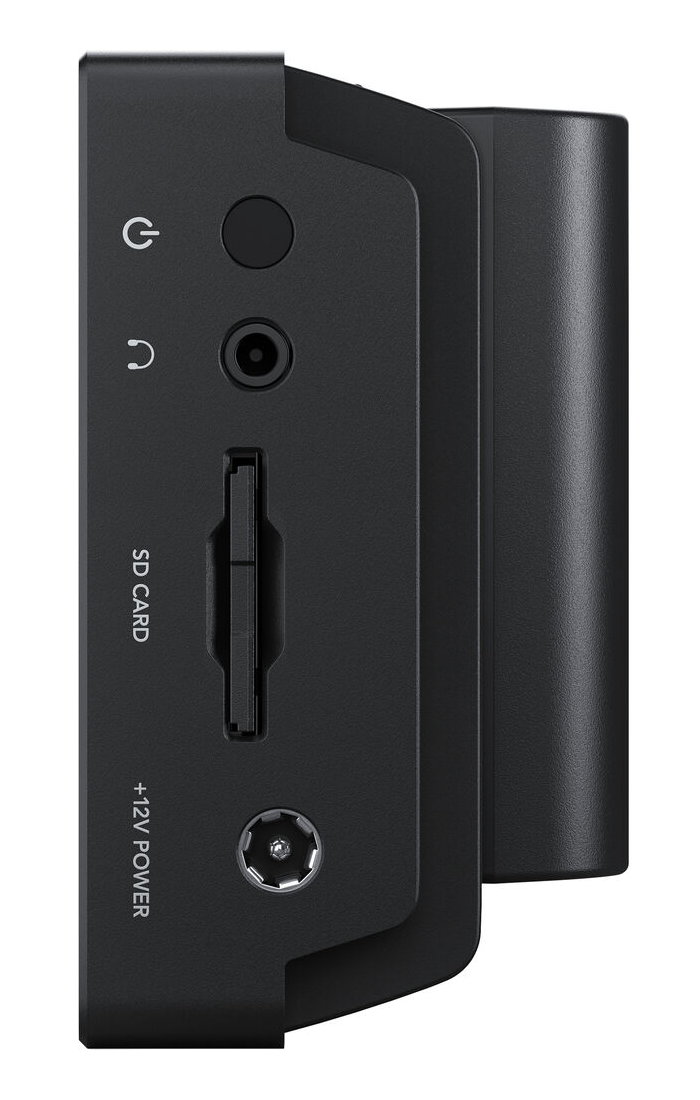

SD Interface |
1 x UHS-I SD slot |
|||
Storage Type |
SDXC UHS-I and SDHC UHS-I SD cards Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards |
|||
Computer Interface |
1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control |
|||
SDI Video Standards |
||||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
|||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
|||
SDI Metadata Support |
HD RP188 |
|||
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
|||
Video Sampling |
4:2:2 YUV |
|||
Color Precision |
10-bit |
|||
Color Space |
REC 601, REC 709 |
|||
Multiple Rate Support |
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s |
|||
HDMI Video Standards |
||||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|||
HDMI Color Precision |
10-bit |
|||
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
|||
Media |
||||
Media |
1 x UHS-I SD for HD recording |
|||
Media Type |
SDXC UHS-I and SDHC UHS-I SD cards |
|||
Supported Codecs |
||||
| ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF |
||||
Control |
||||
Recorder Control |
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus |
|||
External Control |
SDI and HDMI start/stop, timecode run |
|||
Software |
||||
Software Included |
Blackmagic OS |
|||
Scopes |
||||
Scopes |
Waveform, RGB Parade, Vector, Histogram |
|||
Viewing Modes |
Scopes with picture in picture or picture overlay and opacity control |
|||
Operating Systems |
||||
Operating Systems |
Mac 13.0 Ventura, Mac 14.0 Sonoma or later Windows 11 |
|||
Power requirements |
||||
Power Supply |
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included) |
|||
Environmental Specifications |
||||
Operating Temperature |
0° to 40° C |
|||
Storage Temperature |
-20° to 45° C |
|||
Relative Humidity |
0% to 90% non‑-condensing |
|||
