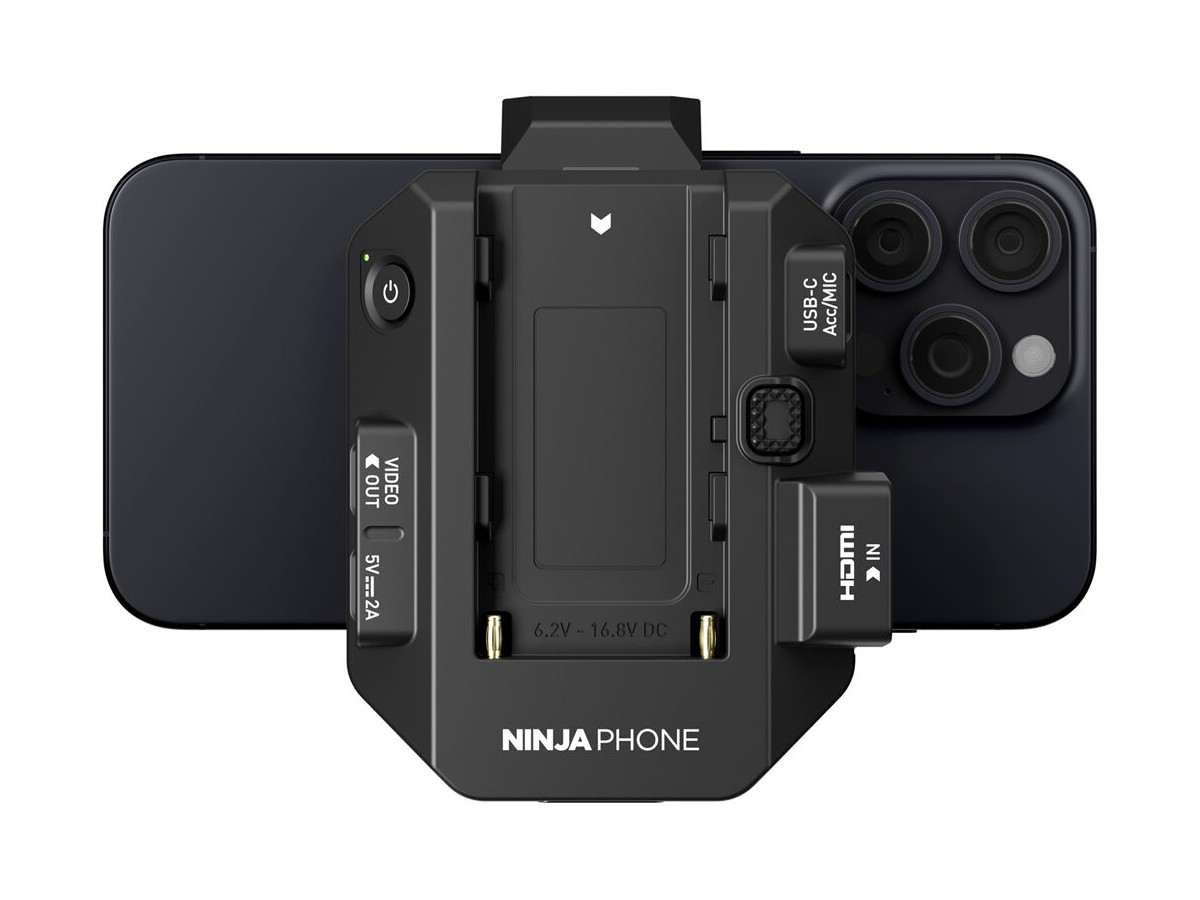

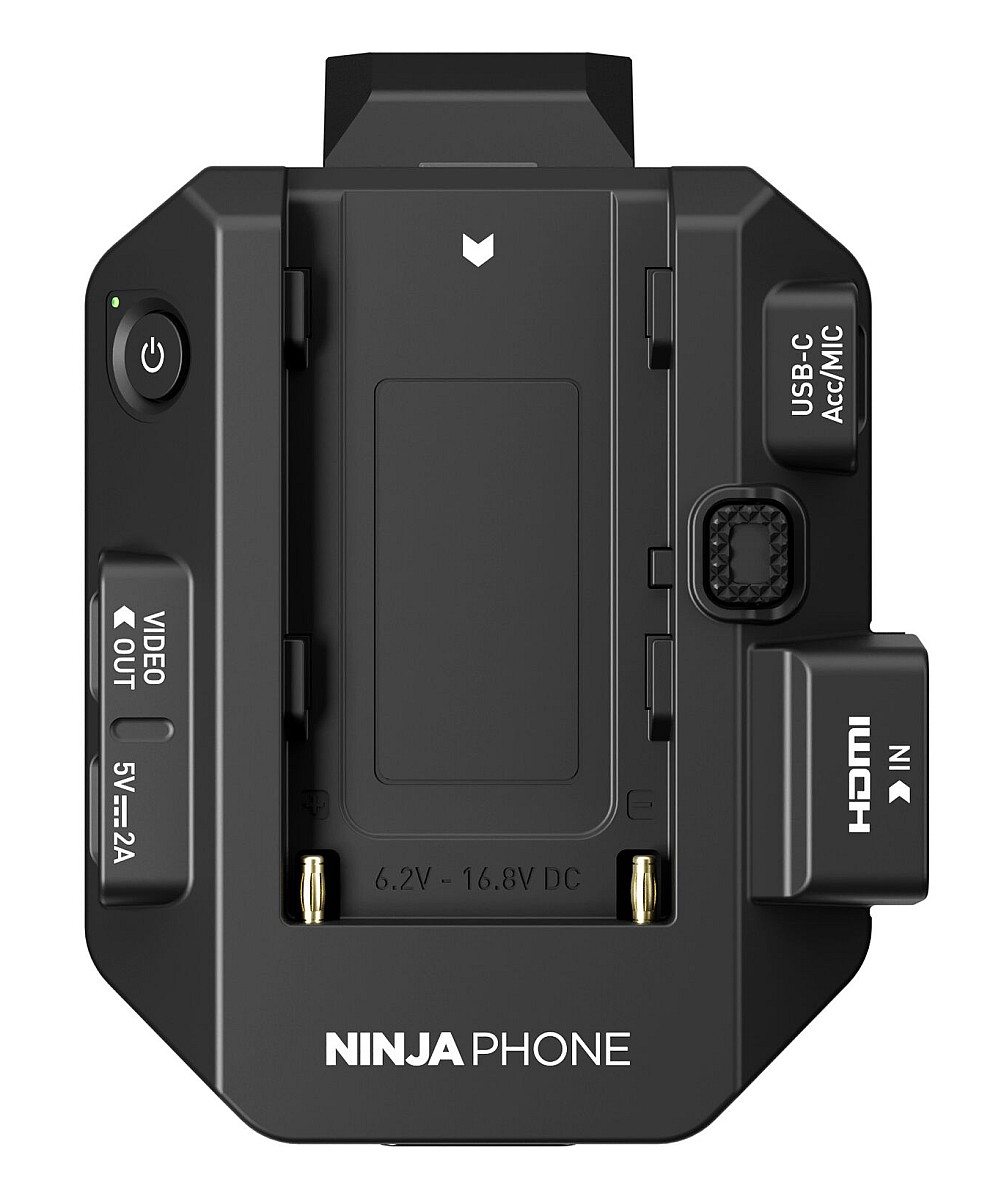

Atomos Ninja Phone videós társprocesszor
A Ninja Phone segítségével az iPhone hozzácsatlakoztatható a professzionális HDMI-kamerához videó monitorozás,
rögzítés és streaming érdekében.
Atomos Ninja Phone videós társprocesszor
• Felvétel professzionális HDMI kamerákról

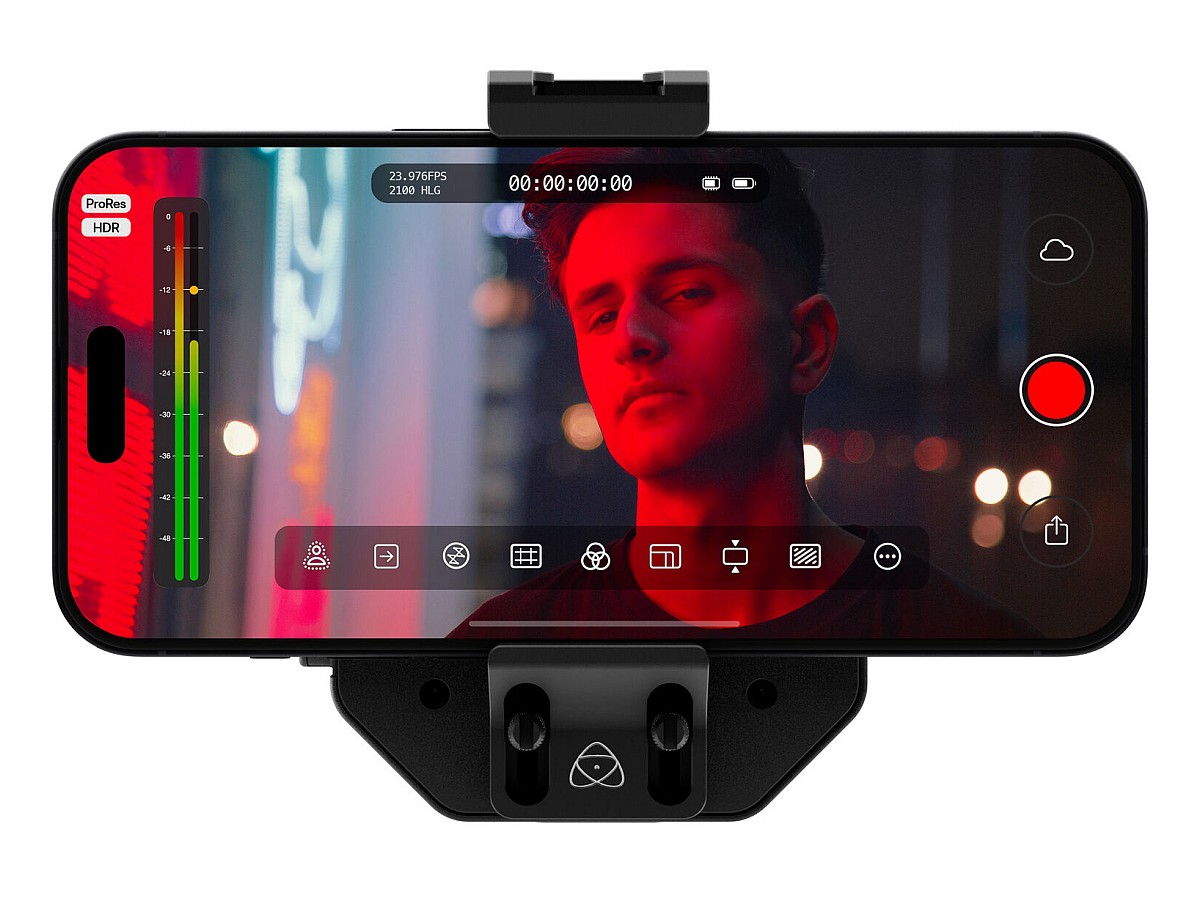

• Videó monitorozása az iPhone 15/16 Pro kijelzőjén
• 10-bites minőség, késleltetés nélküli jeltovábbítás
• Kódolás: Apple ProRes vagy H.265
• iPhone 5G és Wi-FI a streaminghez
• Tápellátás: NP-F akkumulátor, akkumulátor-eliminátor, USB-C
• 16:9 vagy 9:16 arányú felvételek rögzítése
• Ingyenes Ninja Phone iPhone alkalmazás
• USB-C videokábel
• USB-C tápkábel
Atomos Ninja Phone Specifications |
|||
Video |
|||
Video Input Format |
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps
720p 60 / 59.94 / 50fps |
||
Video CODEC |
ProRes* HQ / ProRes* 422 / ProRes* LT / ProRes* Proxy / H.265 Main 10 / H.265 8b / H.264 8b |
||
Video Input Port |
HDMI-A |
||
Video Output Port
|
USB 3.1 Gen1 ProRes* HQ / ProRes* 422 / ProRes* LT / ProRes* Proxy / H.265 Main 10 / H.265 8b / H.264 8b 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98fps 720p 60 / 59.94 / 50fps *iPhone only |
||
Audio |
|||
HDMI |
2 Channel 48KHz PCM |
||
USB-C Mic |
Matches Microphone Sample Rate Locks Audio to Video |
||
Power |
|||
USB Power In |
USB-C 5V 3A – Ninja Phone charges phone and accessories when attached |
||
Accessory Port |
USB-C 5V/1A + USB 3.0 Data |
||
Battery Compatibility |
NP-F550 / F750 / F970 – Ninja Phone charges phone and accessories when attached 2.4W (without charging iPhone) 4W (with iPhone 15 Pro |
||
Power Consumption |
10W (with iPad Air Gen5) |
||
Operating Environment Temperature |
0℃~40℃ Recommended 35℃ operating with iPhone |
||
| Dimensions | |||
Height |
110.7mm |
||
Width |
85.4mm |
||
Depth |
42.4mm |
||
Weight |
|||
Ninja Phone |
149g / 5.2 ounces |
||
iPhone 15 Pro |
187g / 6.6 ounces |
||
iPhone 15 Pro Max |
221g / 7.81 ounces |
||
Silicon |
|||
Chip |
AtomIC 5 |
||
Mounting |
|||
Aluminium |
1/4″/20 with guide pins |
||
| Screen | |||
iPhone Monitor Specs |
Super Retina XDR display 6.7‑inch (diagonal) all‑screen OLED display 2796‑by‑1290-pixel resolution at 460 ppi Dynamic Island Always-On display ProMotion technology with adaptive refresh rates up to 120Hz HDR display True Tone Wide color (P3) Haptic Touch 2,000,000:1 contrast ratio (typical) 1000 nits max brightness (typical); 1600 nits peak brightness (HDR); 2000 nits peak brightness (outdoor) Fingerprint-resistant oleophobic coating Support for display of multiple languages and characters simultaneously |
||
Screen Weather Proofing |
|||
iPhone Splash, Water, and Dust Resistant |
Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529 | ||
iPhone Silicon |
|||
A17 Pro |
New 6‑core CPU with 2 performance and 4 efficiency cores
New 6‑core GPU New 16‑core Neural Engine |
||
iPhone Recording |
|||
Video recording w/Ninja Phone |
Video formats recorded: HEVC, H.264, and ProRes 1080p HD video recording at 25 fps, 30 fps, or 60 fps 720p HD video recording at 30 fps ProRes video recording up to HDp60 Internal Log video recording |
||
iPhone Connectivity |
|||
Wireless |
5G (sub‑6 GHz and mmWave) with 4×4 MIMO
Gigabit LTE with 4×4 MIMO and LAA Wi‑Fi 6E (802.11ax) with 2×2 MIMO Bluetooth 5.3 *Ninja Phone has no wireless connectivity |
||
Nem található bejegyzés
63.205 Ft
