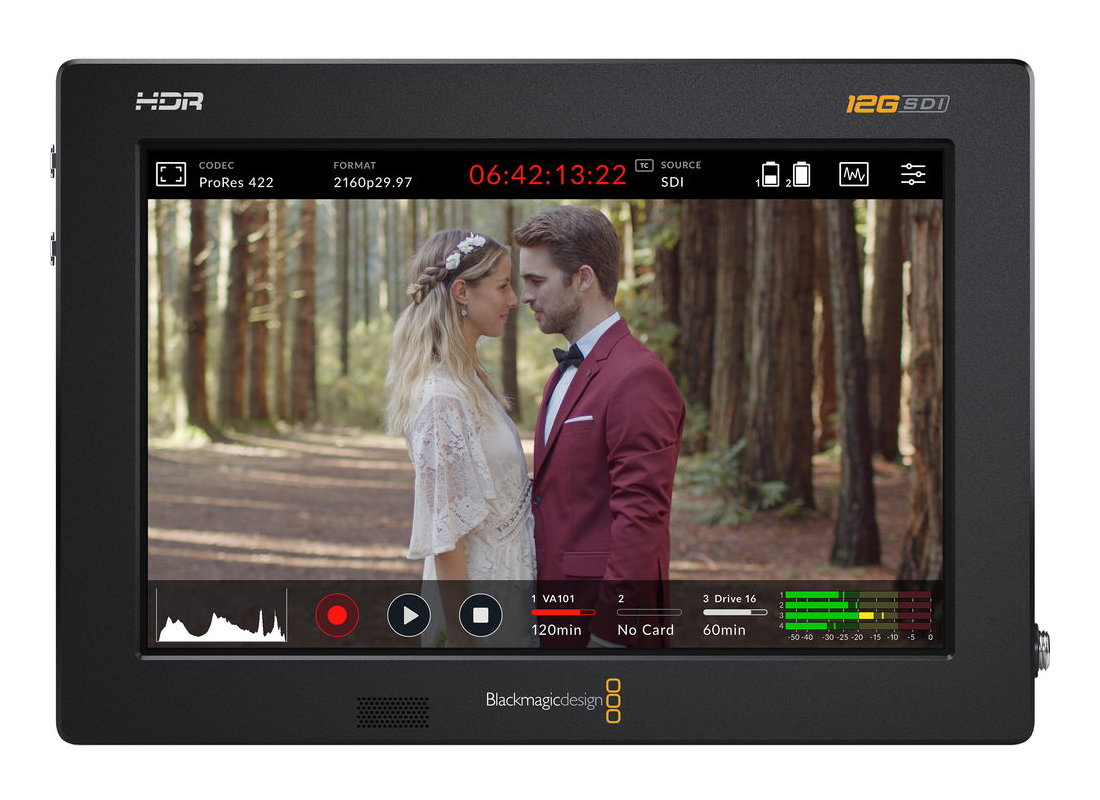

Blackmagic Design Video Assist 7" 12G HDR Rekorder monitor
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Felbontás: 1920 x 1200
• 7" LCD érintőképernyő
• Video interfész: HDMI és 12G-SDI
• Akár DCI vagy UHD 4K HDR videó rögzítése
• 10 bites, 4:2:2 ProRes és DNxHD kódolás
• USB Type-C kimenet
• 2500 cd/m2 fényerő
• Tárolás 2 x SDXC/SDHC memóriakártyára
• Két szimmetrikus Mini-XLR audio bemenet
• Waveform, Vectorscope, Histogram, 3D LUT

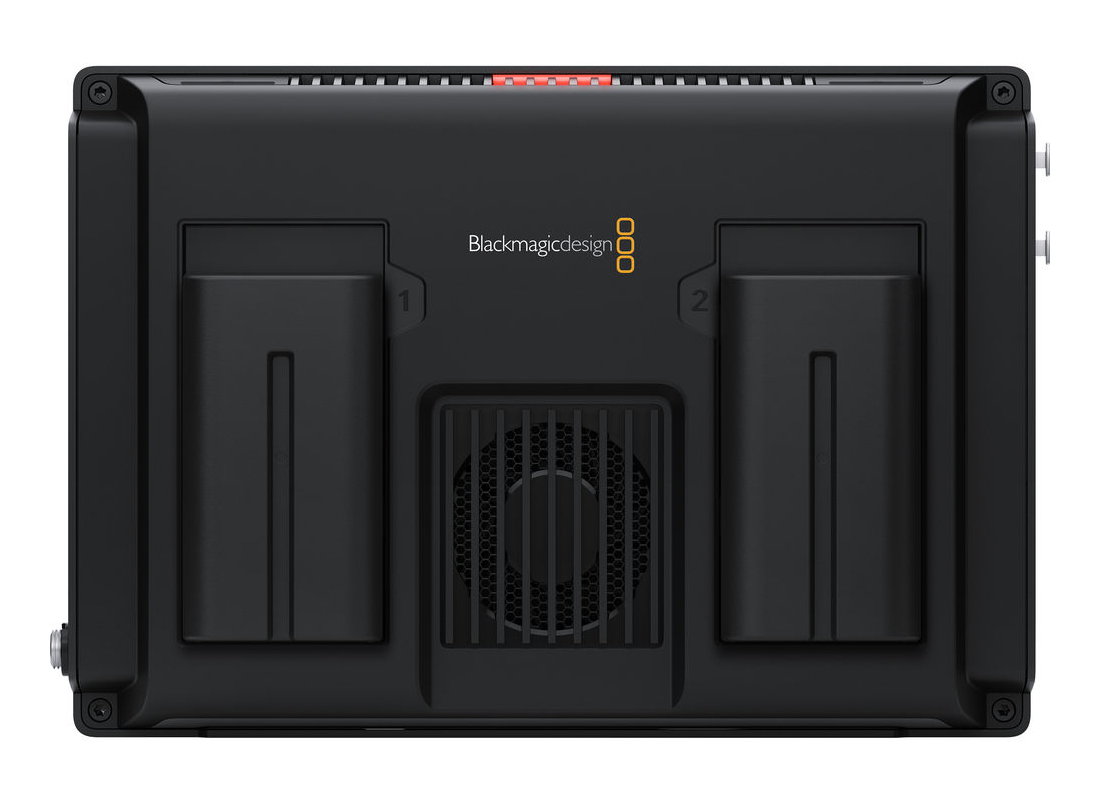

• Kettős Sony L-sorozatú akkumulátor foglalat
• 7" LCD érintőképernyő
• Video interfész: HDMI és 12G-SDI
• Akár DCI vagy UHD 4K HDR videó rögzítése
• 10 bites, 4:2:2 ProRes és DNxHD kódolás
• USB Type-C kimenet
• 2500 cd/m2 fényerő
• Tárolás 2 x SDXC/SDHC memóriakártyára
• Két szimmetrikus Mini-XLR audio bemenet
• Waveform, Vectorscope, Histogram, 3D LUT
• Kettős Sony L-sorozatú akkumulátor foglalat
• Blackmagic Design Video Assist 7" 12G HDR Rekorder monitor
• Tápegység
• Jótállás: 1 év
• Tápegység
• Jótállás: 1 év
Blackmagic Design Video Assist 7" 12G HDR Specification |
||||

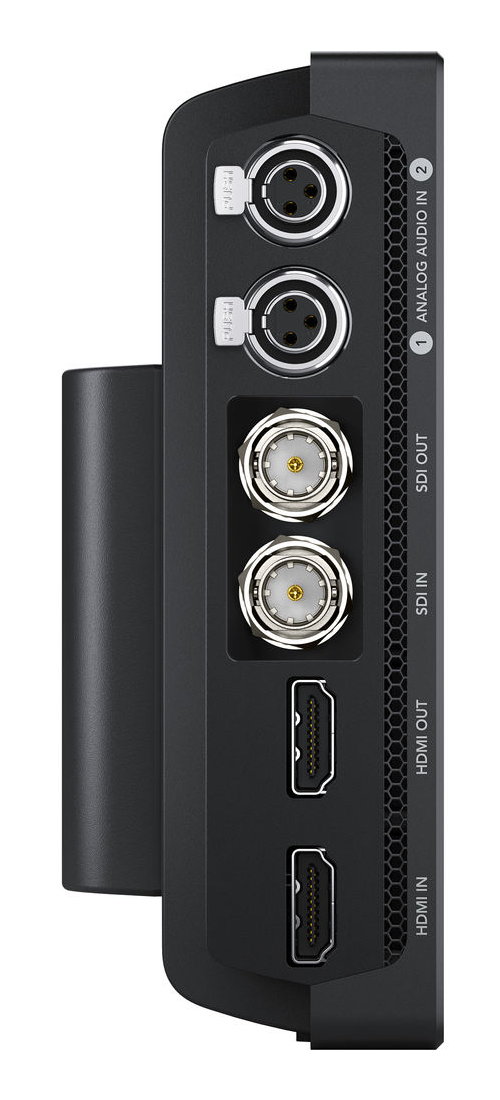

Connections |
||||
SDI Video Inputs |
1 |
|||
SDI Video Outputs |
1 |
|||
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G |
|||
HDMI 2.0a Video Inputs |
1 |
|||
HDMI 2.0a Video Outputs |
1 |
|||
Analog Audio Inputs |
2 x balanced mini XLR with phantom power |
|||
Analog Audio Output |
1 x 3.5mm headphone jack |
|||
Built in Speaker |
Mono |
|||
Screen Dimensions |
7 inch 1920 x 1200 |
|||
Screen Brightness |
2500nits |
|||
Screen Color |
P3 wide color gamut |
|||
SDI Audio Inputs |
16 channels embedded via 12G-SDI |
|||
SDI Audio Outputs |
16 channels embedded via 12G-SDI |
|||
HDMI Audio Inputs |
8 channels embedded via HDMI 2.0a |
|||
HDMI Audio Outputs |
8 channels embedded via HDMI 2.0a |
|||
Remote Control |
1 x 2.5mm LANC for Record Start and Stop |
|||

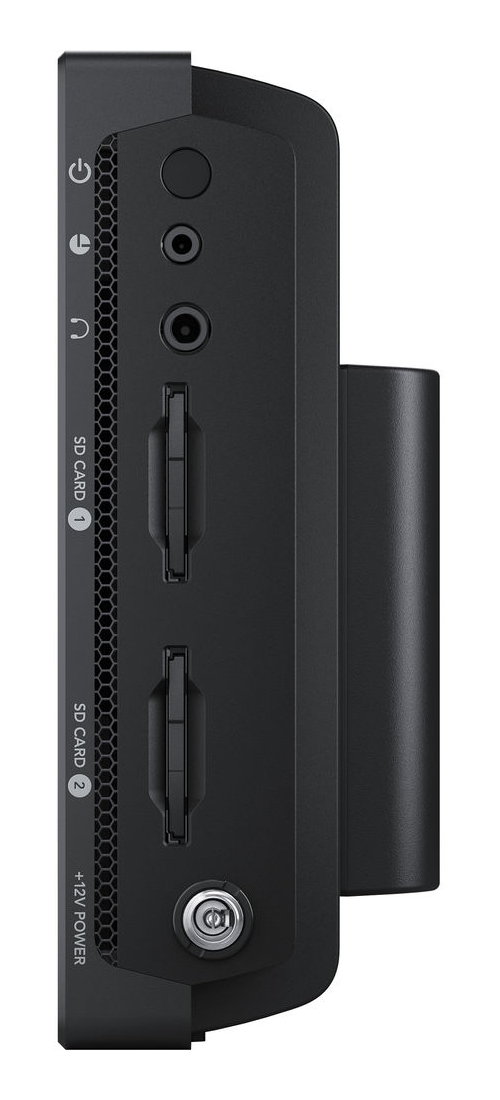

SD Interface |
Dual UHS-II SD slots |
|||
Storage Type |
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. |
|||
Computer Interface |
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control |
|||
SDI Video Standards |
||||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|||
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
|||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
|||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084 |
|||
SDI Metadata Support |
HD RP188 |
|||
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
|||
Video Sampling |
4:2:2 YUV |
|||
Color Precision |
10-bit |
|||
Color Space |
REC 601, REC 709, REC 2020 |
|||
HDR Support |
HDR10, Hybrid Log Gamma |
|||
Multiple Rate Support |
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s |
|||
SDI RAW |
Blackmagic RAW |
|||
HDMI Video Standards |
||||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|||
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
|||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|||
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
|||
HDMI Color Precision |
10-bit |
|||
HDR Support |
HDR10, Hybrid Log Gamma |
|||
Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
|||
Media |
||||
Media |
2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording. |
|||
Media Type |
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. |
|||
Supported Codecs |
||||
| Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF |
||||
Control |
||||
Recorder Control |
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus |
|||
External Control |
LANC, SDI and HDMI start/stop and timecode run |
|||
Blackmagic RAW
- Supported Cameras |
||||
Canon |
Canon EOS C300 Mark II |
|||
FUJIFILM |
FUJIFILM GFX100 FUJIFILM GFX100 II FUJIFILM GFX100S FUJIFILM GFX100S II FUJIFILM X-H2s FUJIFILM X-H2 FUJIFILM X-M5 FUJIFILM X-T5 FUJIFILM X-T50 FUJIFILM X-S20 |
|||
Leica |
Leica SL2-S |
|||
Nikon |
Nikon Z 6 Nikon Z 7 Nikon Z 6II Nikon Z 7II |
|||
Panasonic |
Panasonic AU-EVA1 Panasonic LUMIX BGH1 Panasonic LUMIX BS1H Panasonic LUMIX GH5S Panasonic LUMIX GH6 Panasonic LUMIX GH7 Panasonic LUMIX G9II Panasonic LUMIX S1 Panasonic LUMIX S1H Panasonic LUMIX S5 Panasonic LUMIX S5D Panasonic LUMIX S5II Panasonic LUMIX S5IIX |
|||
SIGMA |
SIGMA fp SIGMA fp L |
|||
Z CAM |
Z CAM E2 Z CAM E2-M4 Z CAM E2-F6 Z CAM E2-S6 |
|||
Software |
||||
Software Included |
Blackmagic OS |
|||
Scopes |
||||
Scopes |
Waveform, RGB Parade, Vector, RGB Histogram |
|||
Viewing Modes |
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules. |
|||
Operating Systems |
||||
Operating Systems |
Mac 13.0 Ventura, Mac 14.0 Sonoma or later Windows 11 |
|||
Power requirements |
||||
Power Supply |
1 x External 12V power supply. Compatible with Sony NP-F style batteries. (batteries not included) |
|||
Environmental Specifications |
||||
Operating Temperature |
0° to 40° C |
|||
Storage Temperature |
-20° to 45° C |
|||
Relative Humidity |
0% to 90% non‑-condensing |
|||
