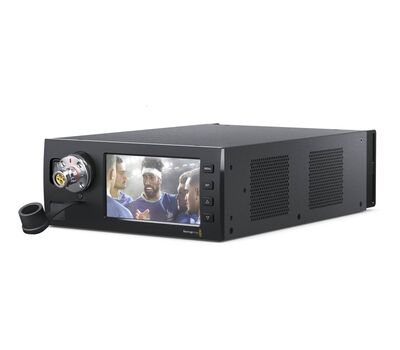

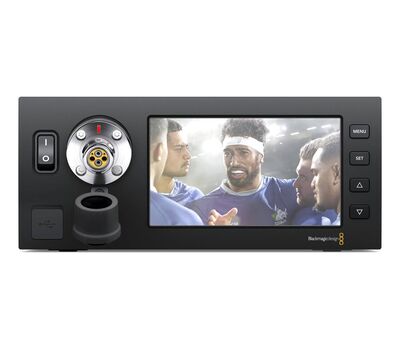

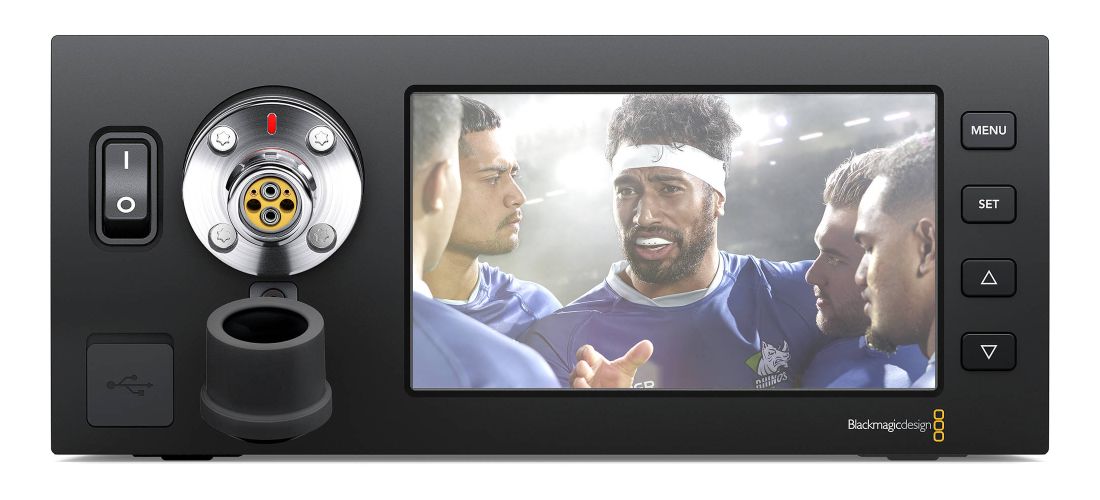

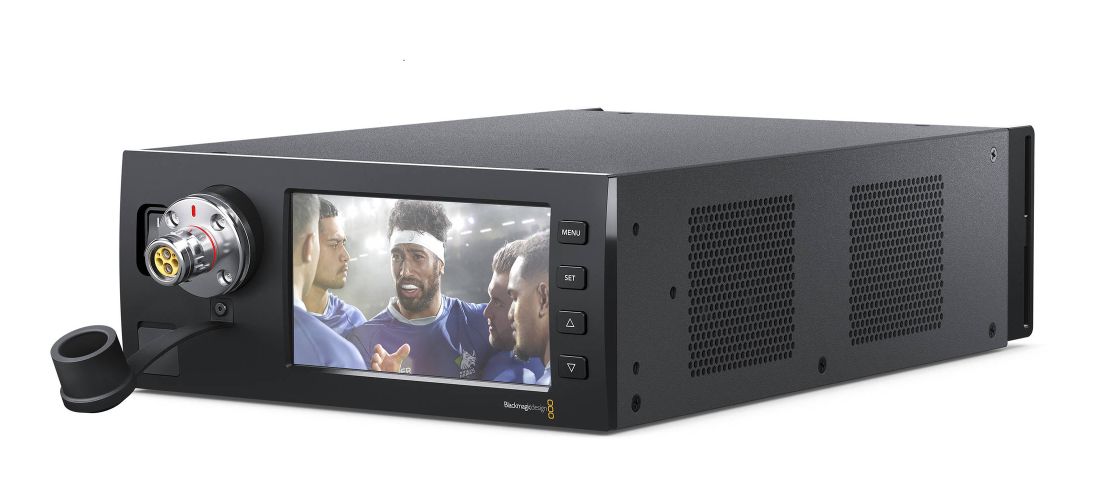

Blackmagic Studio Fiber Converter
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
A Blackmagic Studio Fiber Converter egy bidirectional optikai konverter, mely használható például a Blackmagic Camera Fiber Converter-rel. Telepíthető közvetítőkocsiba, stúdióba, külső helyszínekre és egyetlen SMPTE kábelen keresztül képes kommunikálni egy kamerához csatlakoztatott Blackmagic Camera Fiber Converter-rel, az SDI videó-, hang- és kameravezérlő csatlakozások egyetlen optikai kábelre alakítva átvihetők.
- Blackmagic Studio Fiber Converter
| Blackmagic Studio Fiber Converter | |||

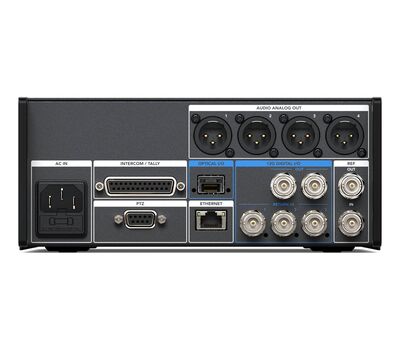

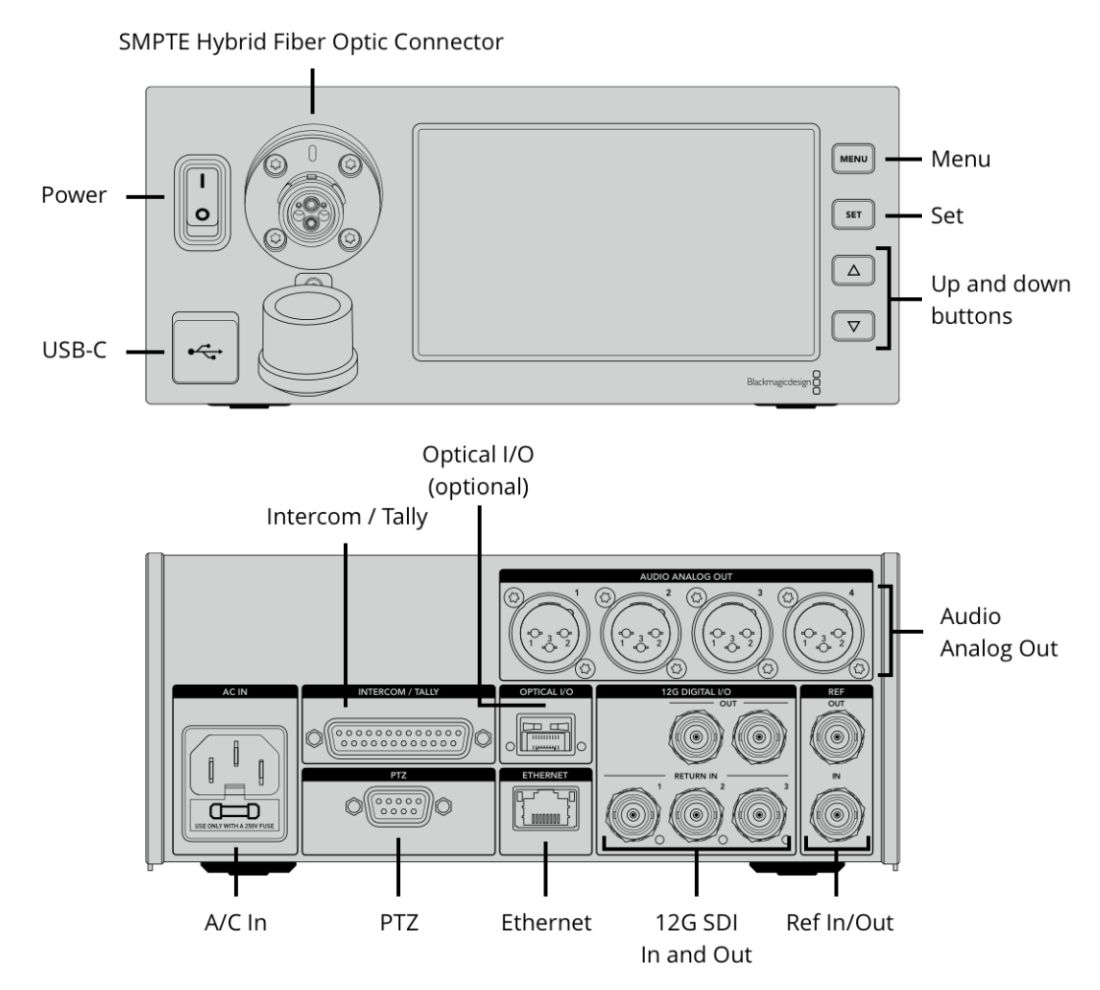

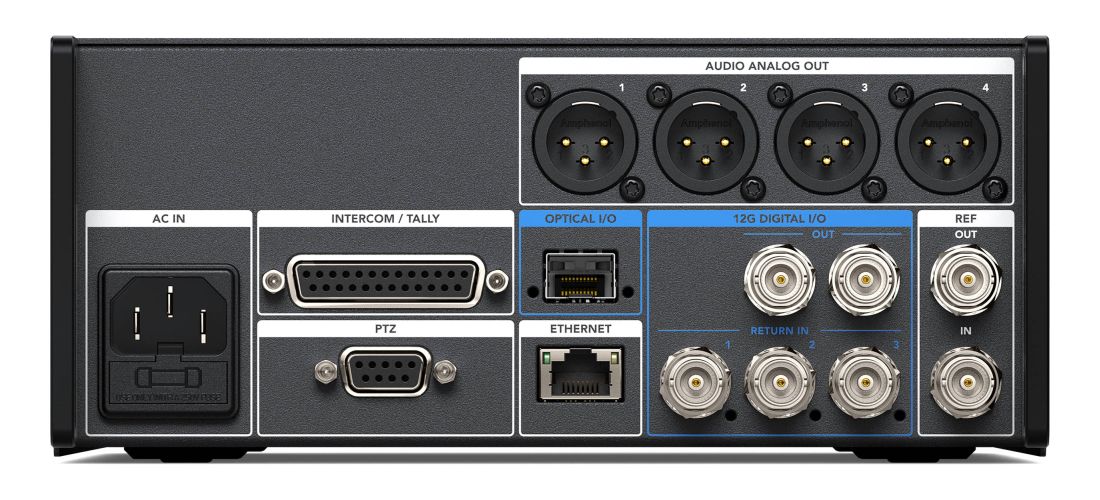

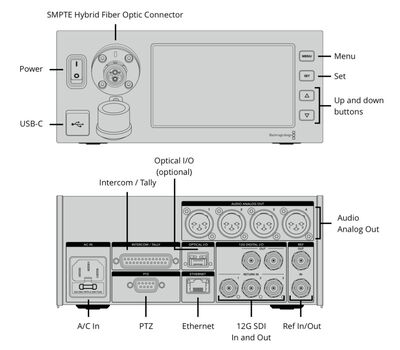

| Connections | |||
| Optical Fiber Input | 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector | ||
| SDI Video Input | 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1 |
||
| SDI Video Output | 2x 12G SDI for Ultra HD up to 60p | ||
| Talkback Audio | SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support |
||
| Balanced XLR Audio Outputs | 4x camera analogue audio outputs | ||
| Optical Fiber Outputs | 1x Optical I/O via 10 Gb-E (not currently active) |
||
| Computer Interface | 1x USB-C connector | ||
| Standards | |||
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
||
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
||
| SDI Compliance | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M | ||
| Audio Sampling | Television standard sample rate of 48Khz, 24 bit A/D conversion |
||
| Video Sampling | 4:2:2 | ||
| Color Precision | 10-bit | ||
| Color Space | REC 709, REC 2020 | ||
| Multiple Rate Support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI | ||
| Software | |||
| Software Included | Camera Utility for firmware update | ||
| Operating Systems | |||
| Mac | Mac 13.0 Ventura, Mac 14.0 Sonoma or later |
||
| Windows | Windows 10 and 11 | ||
| Power Requirements | |||
| Power Supply | 100 - 240V AC input | ||
| Physical Specifications | |||
| Dimensions | 21×8.8×37.2 cm | ||
| Net Weight | 2.8 kg | ||
| Environmental Specifications | |||
| Operating Temperature | 0°C to 40°C | ||
| Storage Temperature | -20°C to 45°C | ||
| Relative Humidity | 0% to 90% non‑condensing | ||
