Datavideo PTC-280 NDI|HX 4K PTZ kamera
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Felbontás akár UHD 4K
• NDI® | HX technológia
• 1/2,5" CMOS szenzor, 8,51MP
• 12x optikai, 16x digitális zoom
• H.264/H.265 videótömörítés
• AAC, MP3 és PCM audió tömörítés
• Vezérlés: DVIP, RS-422, VISCA/Pelco-P/D
• RTSP, RTMP protokollok Dual Stream funkcióval
• Szimultán kimenetek: HDMI 2.0, IP, 3G-SDI
• Power over Ethernet
• PTZ View Assist
• Tally Light
• NDI® | HX technológia
• 1/2,5" CMOS szenzor, 8,51MP
• 12x optikai, 16x digitális zoom
• H.264/H.265 videótömörítés
• AAC, MP3 és PCM audió tömörítés
• Vezérlés: DVIP, RS-422, VISCA/Pelco-P/D
• RTSP, RTMP protokollok Dual Stream funkcióval
• Szimultán kimenetek: HDMI 2.0, IP, 3G-SDI
• Power over Ethernet
• PTZ View Assist
• Tally Light
• 1x Datavideo PTC-280
• 1x Távvezérlő
• 1x Tápegység
• 1x Ceiling Mount Bracket
• 1 év jótállás
• 1x Távvezérlő
• 1x Tápegység
• 1x Ceiling Mount Bracket
• 1 év jótállás
Datavideo PTC-280 Specifications |
|||
| Video format/Resolution |
HDMI: 2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 SDI: (2160p 60/59.94/50 YUV 4:2:0 only) |
||
Image Sensor |
1/2.5" CMOS |
||
Effective Pixels (approx.) |
8.51Mega Pixels |
||
S/N Ratio |
≥55dB |
||
Min. Illumination |
0.5 Lux @ (F1.8, AGC ON) |
||
Electronic Shutter |
1/30s ~ 1/10000s |
||
Zoom Ratio |
12x Optical Zoom, 16x Digital Zoom |
||
Gamma Control |
Off / Normal |
||
Iris Control |
Auto / Manual |
||
Digital Noise Reductions |
2D/3D |
||
On-Screen Display (OSD) |
English/Simplified Chinese/Traditional Chinese |
||
White Balance |
Auto, Indoor, Outdoor, OnePush, Manual, VAR |
||
AGC / Gain Control |
Yes |
||
Mirror / Flip Image |
Yes |
||
Focus Mode |
Auto/Manual |
||
Panning / Tilting Range |
Pan: 300° Tilt: +130° to -15° |
||
Panning / Tilting Speed |
Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s |
||
Preset |
255 |
||
Focal Length |
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
||
Field of View (Horizontal, Wide) |
71° |
||
Image Compensation |
Back light compensation |
||

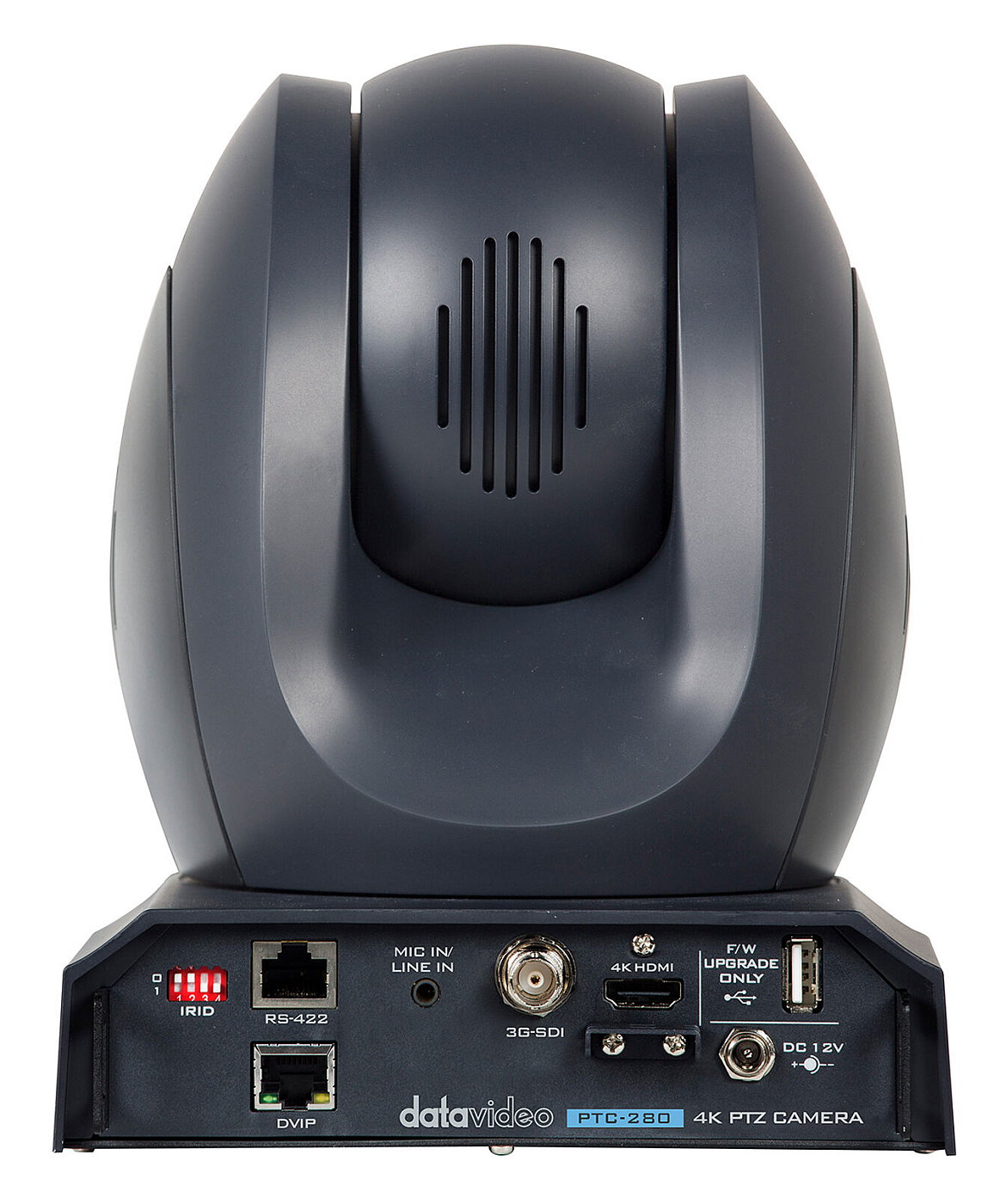

Video Output |
HDMI 2.0 x1 3G-SDI x1 10/100/1000M RJ45 (PoE) x1 |
||
Audio Input |
3.5 mm x1 |
||
Tally LED |
Yes |
||
Lens Filter |
N/A |
||
Control Protocol |
Pelco-D, Pelco-P, VISCA, VISCA over IP NDI, DVIP |
||
Remote Control Interface |
IR Web UI RS-422 DVIP |
||
Video Compression Format |
H.264/H.265/MJPEG |
||
Audio Compression Format |
AAC |
||
Audio Bitrate |
96Kbps, 128Kbps, 256Kbps |
||
HD IP Interface |
---- |
||
Streaming Protocols |
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast |
||
First Stream Supported Resolution |
3840x2160 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
||
Second Stream Supported Resolution |
1280x720 1024x576 720x576 (50Hz) 720x480 (60Hz) 720x408 640x360 480x270 320x240 |
||
Video Bitrate |
32Kbps ~ 50Mbps (Single Stream) |
||
Video Bitrate Mode |
VBR, CBR |
||
Encoding Frame rate |
50Hz: 1-50fps 60Hz: 1-60fps |
||
POE |
IEEE 802.3at |
||
F/W Update |
Via Web UI or USB 2.0 |
||
IR Control |
Yes |
||
Camera Control Unit |
RMC-180 series/ RMC-300C /PTZ View Assist APP |
||
Tripod Mount |
1/4-20 UNC |
||
Dimension (LxWxH) |
173 (W) x 219 (H) x 189.08 (D) |
||
Weight |
2.8 kg |
||
Operating Temp. Range |
0~40 °C |
||
Power |
DC 12V 12W |
||
