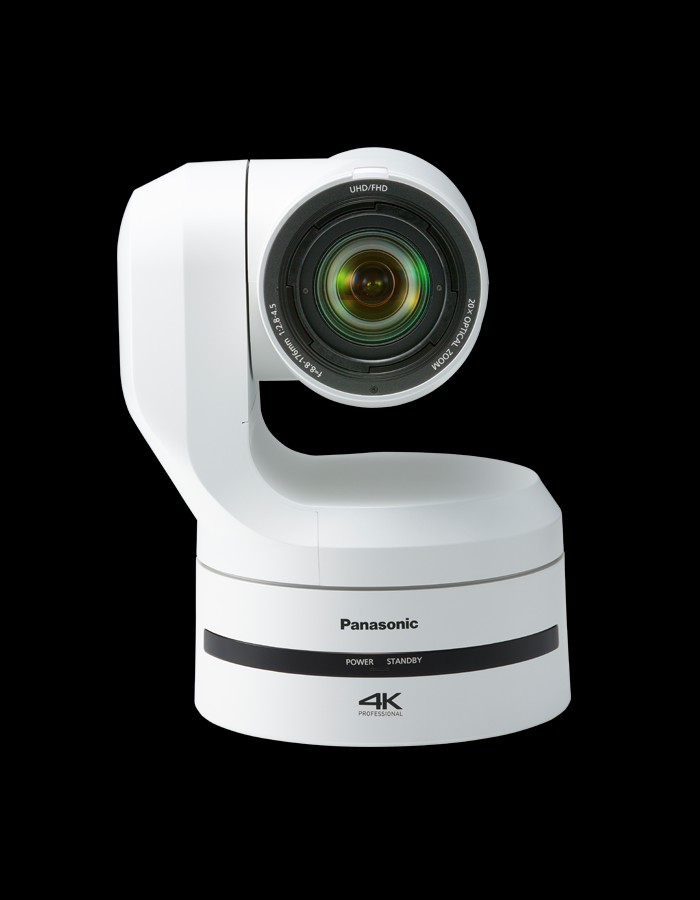

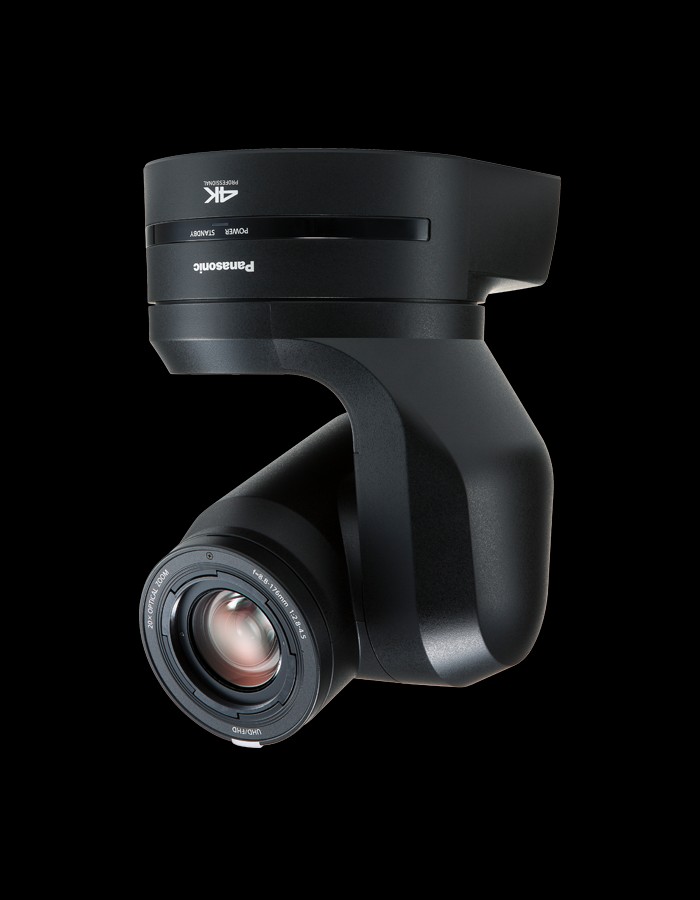

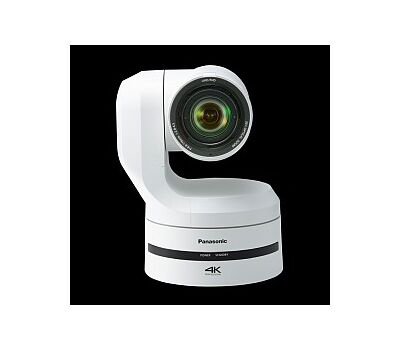

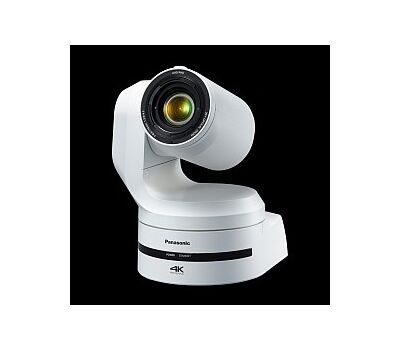

Panasonic AW-UE150A PTZ Kamera
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
Panasonic AW-UE150A PTZ Kamera
• UHD 4K 60p és HD szimultán kimenet, 1"-os MOS érzékelő
• 12G-SDI, HDMI, fiber és IP átvitel
• V-Log kimenet és UHD Crop a v2.28 frissítéssel
• 20x optikai, 24x UHD és 32x HD iZoom
• Akár 180°/sec Pan/Tilt sebesség
• Élő közvetítés RTMP-n keresztül
Panasonic AW-UE150A PTZ Kamera - PTZ kamera
Érzékelő mérete:
- 1"
Érzékelő effektív felbontása:
20.18 MP
Támogatott formátum:
- HD (1280x720)
- Full HD (1920 x 1080)
- 4K UHD (3840 x 2160)
Képkocka sebesség HDMI/SDI:
- 24 (23,98)
- 25
- 30 (29,97)
- 50
- 60 (59,94)
- Interlaced (i) videó.támogatás
Objektív (optikai zoom):
- 20x
Digitális zoom:
32x
Legnagyobb látószög (W):
75.1°
Legszűkebb látószög (T):
4°
35mm eq. gyújtótávolság (W):
24.5 mm
35mm eq. gyújtótávolság (T):
490 mm
Legnagyobb rekesznyílás (W):
f/2.8
Legnagyobb rekesznyílás (T):
f/4.5
Videó kimenet:
- 3G-SDI (FullHD p60-ig)
- 12G-SDI (4K60-ig)
- HDMI 2.0 (4K60-ig)
- LAN (NDI, NDI|HX)
- LAN (RTSP, RTMP, SRT)
- Optikai csatlakozó
Streaming:
- RTMP
- RTSP
- SRT
- NDI
NDI:
- High-Bandwidth NDI® (SpeedHQ)
- HX|2
Vezérlő interface, WiFi:
- IP/LAN
- RS-422
Vezérlő protokoll:
- Panasonic AW
Hálózati kapcsolat:
- Ethernet N/A
TC, Genlock, FreeD, Tally:
- Genlock/Sync
- Tally
Pan szögelfordulás:
350°
Tilt lefelé:
-30°
Tilt felfelé:
+210°
Pan sebesség min.:
0.08 °/s
Preset Pan sebesség:
- N/A °/s
Preset Tilt sebesség:
- N/A °/s
Preset-ek max. száma:
100
Preset szám IR távirányítóról:
- Igen
Audio:
- Mic/line in (egyben, 1db jack, Web UI-n szabályozható)
Auto tracking - célkövetés:
- Auto-tracking
Tracking range:
- N/A m
Egyéb jellemzők:
- Tripod mount 1/4” (1/4-20 UNC)
• Panasonic AW-UE150A PTZ Kamera
• Tartókonzol
• 4 x M4 csavar
• Jótállás: 1 év
• Tartókonzol
• 4 x M4 csavar
• Jótállás: 1 év
| Panasonic AW-UE150A PTZ kamera Specifications | |||
| General | |||
| Power Requirements |
12 V DC (10.8 V to 13.2 V) | ||
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) | ||
| Current Consumption |
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) | ||
| Ambient Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) | ||
| Ambient Operating Humidity |
20 % to 90 % (no condensation) | ||
| Storage Temperature |
-20 °C to 50 °C (-4 °F to 122 °F) | ||
| Mass | Approx. 4.2 kg (9.24 lb) (excluding mount bracket) | ||
| Dimensions (W x H x D) (mm) |
213 mm x 267 mm x 219 mm (excluding protrusions, direct ceiling mount bracket) |
||
| Dimensions (W x H x D) (inch) |
8-3/8 inches x 10-1/2 inches x 8-5/8 inches (excluding protrusions, direct ceiling mount bracket) |
||
| Finish | AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black |
||
| Controller Supported*1 |
AW-RP150GJ | ||
| Camera Unit | |||
| Imaging Sensors |
1" type 4K MOS×1 | ||

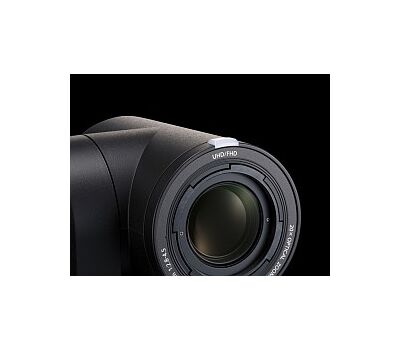

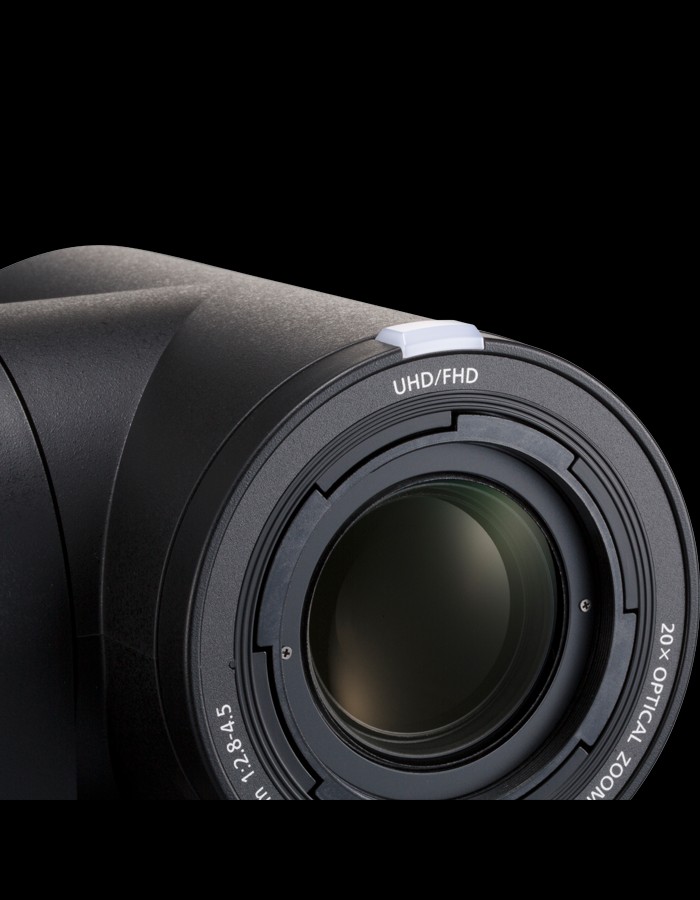

| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
||
| Zoom | Optical zoom: 20x i.Zoom: UHD 24x, FHD 32x Digital zoom: 10x |
||
| Conversion Lens |
Not supported | ||
| Angle of View Range |
Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
||
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | ||
| Focus | Switching between auto and manual | ||
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
||
| Color Separation Optical System |
1MOS | ||
| Standard Sensitivity |
F9, 2000 lx (When normal mode is selected) | ||
| Minimum Illumination |
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) | ||
| S/N | 60 dB or more | ||
| Horizontal Resolution |
1600 TV lines Typ (Center area) | ||
| Gain Selection | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
||
| Frame Mix*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | ||
| Electronic Shutter Speed |
59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
||
| Syncro Scan | 59.94p/59.94i : 60.00 Hz to 7200 Hz 29.97p : 30.00 Hz to 7200 Hz 23.98p/24p : 24.00 Hz to 7200 Hz 50p/50i : 50.00 Hz to 7200 Hz 25p : 25.00 Hz to 7200 Hz |
||
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG | ||
| White Balance | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
||
| Chroma Amount Variability |
OFF, -99 % to 99 % | ||
| Scene File | Scene1, Scene2, Scene3, Scene4 | ||
| Output Format | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
||
| Synchronization System |
Internal / External synchronization (BBS / Tri-level sync) | ||
| Input | |||

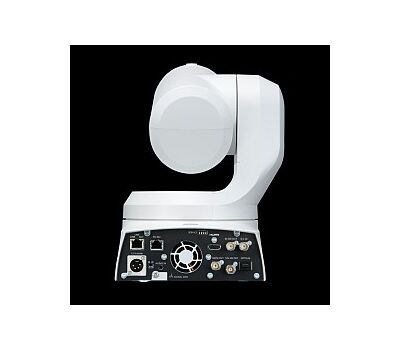

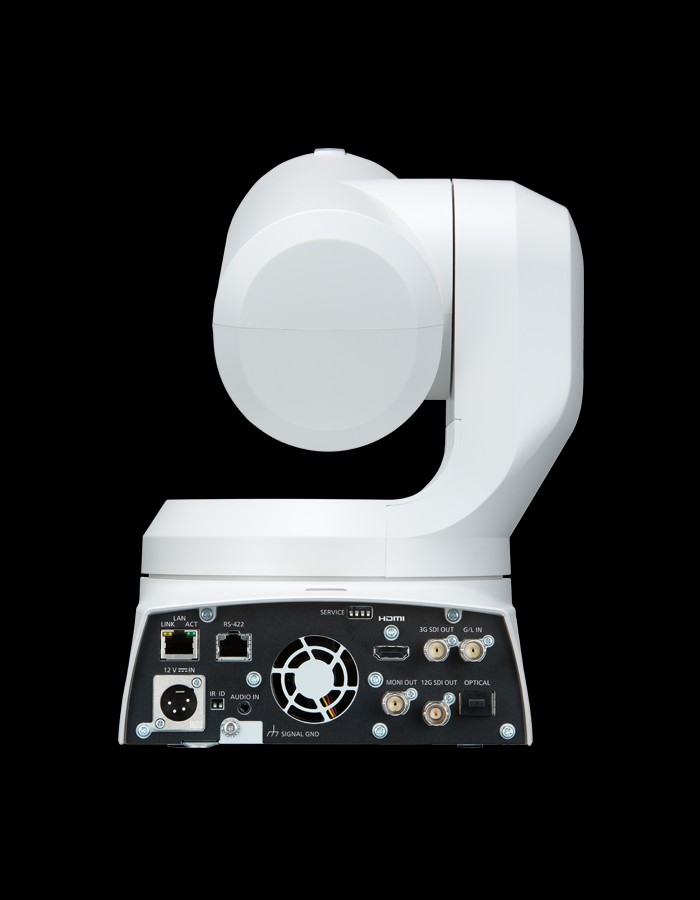

| Input Connector |
DC 12 V IN, G/L IN (BNC) BBS (Black Burst Sync), tri-level sync supported |
||
| Output | |||
| Video Output | HDMI HDMI 2.0 standard 4:2:2/10bit HDCP is not supported. Viera Link is not supported. 12G-SDI OUT SMPTE 2082-1 standard / 75 Ω (BNC x 1) 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) Level-A/Level-B supported MONI OUT SMPTE292 / 75 Ω (BNC x 1) Optical Fiber SFP+ standard Single Fiber The signal sent is the same as 12G-SDI OUT. This unit does not support input by optical signals. |
||
| Input/Output | |||
| nput / Output Connector |
LAN LAN connector for IP control (RJ-45) RS-422 CONTROL IN RS-422A (RJ-45) MIC/LINE input φ3.5 mm stereo mini jack Input impedance: High impedance During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) During LINE input Input level: Approx. -10 dBV ±3 dBV |
||
| Pan-Tilt Head Unit |
|||
| Camera/Pan- Tilt Head Control |
IP connecting cable LAN cable*6*7 : (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft) AW protocol connecting cable LAN cable*6 (category 5e or above, straight cable) max. 1000 m (3280 ft) |
||
| Installation Method |

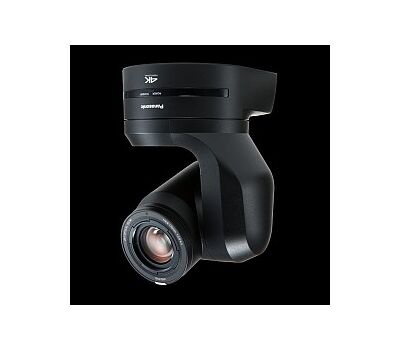

Stand-alone (Desktop) or suspended (Hanging)*8 | ||
| Pan/Tilt Operation Speed |
Minimum speed 0.08°/s Maximum speed 60°/s or higher*9 Maximum speed is 180°/s in high-speed mode |
||
| Panning Range | ±175° | ||
| Tilting Range | -30° to 210°*10 | ||
| Quietness | NC35 or less | ||
| Supported operating systems and web browsers*11 | |||
| Supported operating systems and web browsers |
Windows Microsoft(R) Windows(R) 7, 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome iPhone / iPad iOS 11.4.1 Google Chrome |
||
| IP Streaming | |||
| Image Streaming Mode |
JPEG (MJPEG), H.264, H.265 | ||
| Image Resolution |
3840×2160, 1920×1080, 1280×720, 640×360, 320×180 | ||
| Image Transmission setting ( JPEG) |
Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
||
| Image Transmission Setting (H.264) |
Frame Rate [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps) [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps) Max Bit Rate HD :512kbps/768kbps/1024kbps/1536kbps/ 2048kbps/3072kbps/4096kbps/6144kbps/ 8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/ 20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/ 76800kbps UHD : 12800kbps/25600kbps/51700kbps/76800kbps |
||
| Image Transmission Setting (H.265) |
Image Transmission Type: Unicast port (AUTO) Unicast port (MANUAL) Multicast port Frame Rate [60Hz] 30fps [50Hz] 25fps Max Bit Rate 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps |
||
| Audio Compression Type |
AAC-LC, 48 kHz / 16 bit / 2ch | ||
| Supported Protocol |
IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP |
||
| Other Function | |||
| NDI support*12 | NDI | HX | ||
| Tally LED display color |
red / green | ||
| Note | *1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF,1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6 of an STP (shielded twisted pair) cable isrecommended. *7: Category 6 or more is used when sending 4K images. *8: To ensure safety, the unit must be secured using the mount bracket supplied. *9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10: Depending on the pan or tilt position, the camera may be reflected in the image. *11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. *12: Contact your local Panasonic vendor for further information. |
||
