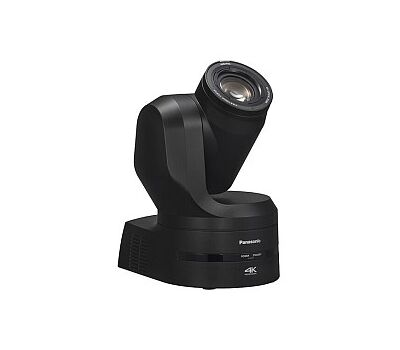

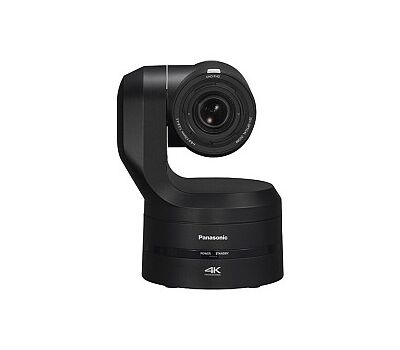

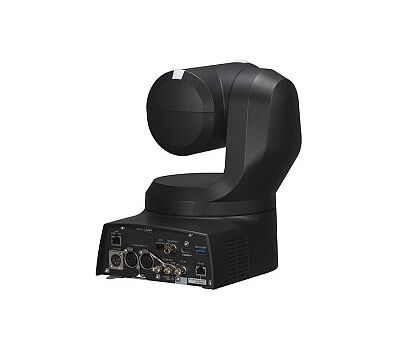

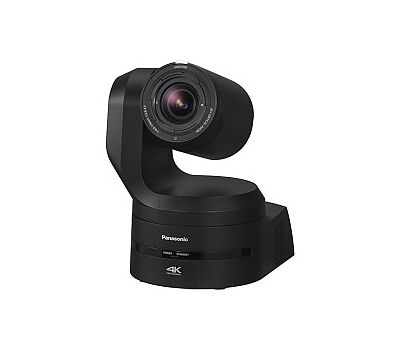

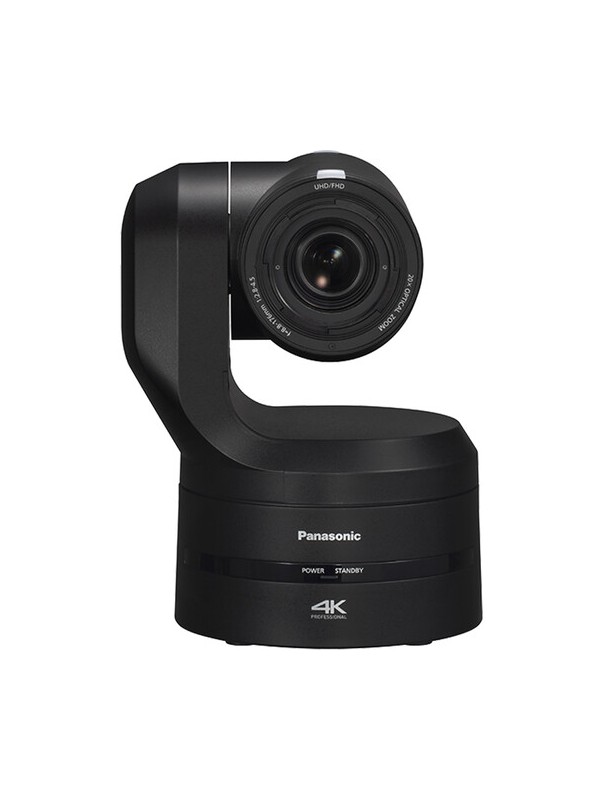

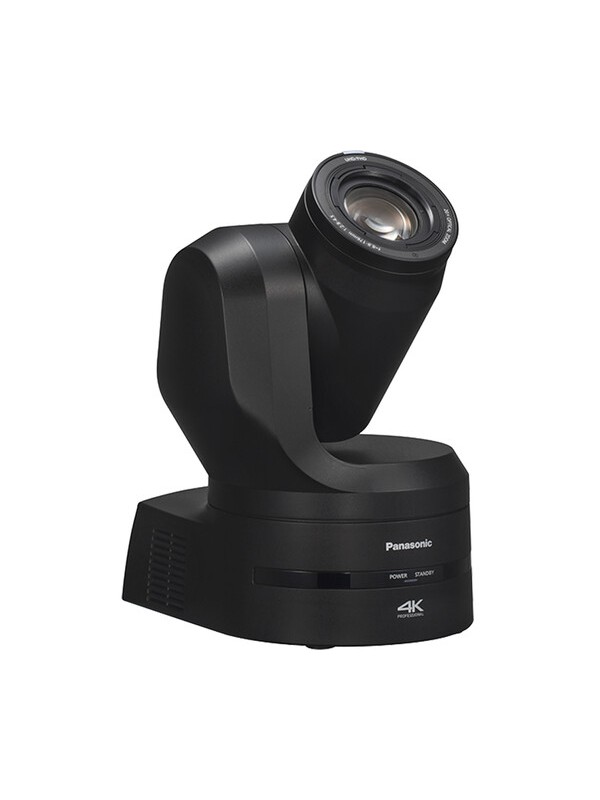

Panasonic AW-UE160 PTZ kamera
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
Panasonic AW-UE160 PTZ kamera
• UHD 4K60 és HD szimultán kimenet, 1"-os MOS szenzor
• 12G-SDI, HDMI, fiber és IP átvitel
• Továbbfejlesztett autofókusz
• 20x optikai zoom
• Akár 180°/sec Pan/Tilt sebesség
• Élő közvetítés RTMP-n keresztül
Panasonic AW-UE160 PTZ kamera - PTZ kamera
Érzékelő mérete:
- 1"
Érzékelő effektív felbontása:
9.62 MP
Támogatott formátum:
- HD (1280x720)
- Full HD (1920 x 1080)
- 4K UHD (3840 x 2160)
Képkocka sebesség HDMI/SDI:
- 24 (23,98)
- 25
- 30 (29,97)
- 50
- 60 (59,94)
- 100
- 120
- Interlaced (i) videó.támogatás
Objektív (optikai zoom):
- 20x
Digitális zoom:
32x
Legnagyobb látószög (W):
75.1°
Legszűkebb látószög (T):
4°
35mm eq. gyújtótávolság (W):
24.5 mm
35mm eq. gyújtótávolság (T):
490 mm
Legnagyobb rekesznyílás (W):
f/2.8
Legnagyobb rekesznyílás (T):
f/4.5
Videó kimenet:
- 3G-SDI (FullHD p60-ig)
- 12G-SDI (4K60-ig)
- HDMI 2.0 (4K60-ig)
- LAN (NDI, NDI|HX)
- LAN (RTSP, RTMP, SRT)
- Optikai csatlakozó
Streaming:
- RTMP
- RTSP
- SRT
- NDI
NDI:
- High-Bandwidth NDI® (SpeedHQ)
- HX|2
Vezérlő interface, WiFi:
- IP/LAN
- RS-422
Vezérlő protokoll:
- Panasonic AW
Hálózati kapcsolat:
- Ethernet N/A
TC, Genlock, FreeD, Tally:
- Genlock/Sync
Pan szögelfordulás:
350°
Tilt lefelé:
-30°
Tilt felfelé:
+210°
Pan sebesség min.:
0.08 °/s
Preset Pan sebesség:
- N/A °/s
Preset Tilt sebesség:
- N/A °/s
Preset-ek max. száma:
100
Preset szám IR távirányítóról:
- Igen
Audio:
- XLR bemenet
- XLR bemenet (2x)
Auto tracking - célkövetés:
- Auto-tracking
- AI auto-tracking
Tracking range:
- N/A m
Egyéb jellemzők:
- Tripod mount 1/4” (1/4-20 UNC)
• Panasonic AW-UE160 PTZ kamera
• Cable Cover
• Mounting Hardware
• Jótállás: 1 év
• Cable Cover
• Mounting Hardware
• Jótállás: 1 év
| Panasonic AW-UE160 PTZ kamera Specifications | |||
| Output Format (UHD/FHD SDI) | 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) *2160/60p will be supported in version upgrade. HD1080/119.88p*, 1080/100p*, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI. | ||
| Output Format (HDMI) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native)
*2160/60p will be supported in version upgrade.
HD |
||
| Output Format (Fiber(Only Video)) | 4K 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
2160/24p(Native), 2160/23.98p(Native)*2160/60p will be supported in version upgrade. HD |
||
| Supported Protocol | Network Protocol: ICMP, ARP, GARP, MLD Transmission Protocol: TCP/IP, UDP/IP Application Protocol:
IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1XIPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX version 2, High bandwidth NDI External Device Cooperation Protocol: FreeD, TSL5.0, SNMP |
||
| Power Requirements | 12VDC±10%(10.8V to 13.2V) | ||
| Ambient Operating Temperature | 0 °C to +40 °C (32 °F to +104 °F) | ||
| PoE++ | IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported)) | ||
| Storage Temperature | -20 °C to +50 °C (-4 °F to +122 °F) | ||
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | ||
| Mass | Approx. 4.6kg (10.14lbs) (excluding mount bracket) | ||

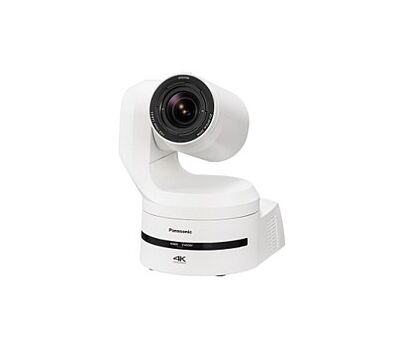

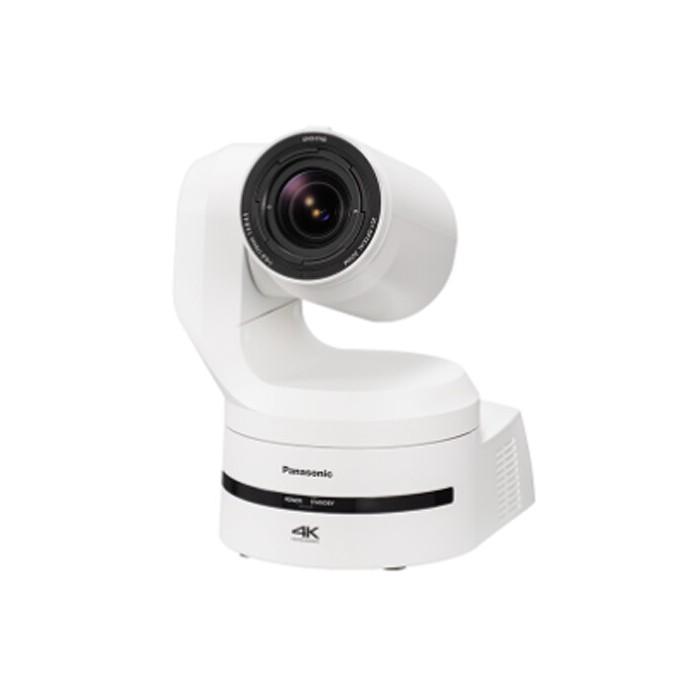

| Finish | AW-UE160W : Pearl White AW-UE160K : Black |
||
| Controller Supported | AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250 IP only. Other ROP will be compatible in the future. Digext Certification operation of AW-RP150 and AW-RP60 are not guaranteed. |
||
| Lens | Motorized Optical 20x Zoom F2.8 to F4.5(f=8.8 mm to 176.0 mm, 35mm equivalent:24.5 mm to 490.0 mm) | ||
| Imaging Sensors | 1" type * 4K MOSx1 *Effective size Effective Pixels: Approx. 9,620,000 pixels |
||
| Camera Unit | - | ||
| Optical Filter | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
||
| Optical Filter | Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as "night mode") | ||
| Focus | Switching between auto and manual | ||
| Conversion Lens | Not Supported | ||
| Angle of View Range | Horizontal: 75.1°(wide) to 4.0°(tele) Vertical: 46.7°(wide) to 2.3°(tele) Diagonal: 82.8°(wide) to 4.6°(tele) |
||
| Focus Distance | Entire zooming range: 1000 mm, Wide end: 100 mm | ||
| Standard Sensitivity | F11/2,000lux (Normal), F14/2,000lux (Low Light) | ||
| Color Separation Optical Systems | 1MOS | ||
| Horizontal Resolution |
1,600 TV Typ (center area, UHD Mode, Wide) | ||
| Gain Selection | Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 1080/119.88p, 1080/100p, 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set. | ||
| Electronic Shutter Speed |
60p: 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000 59.94p/59.94i: 50p/50i: 29.97p: 25p: 23.98p: 24p: 59.94p･120fps: 50p･100fps: |
||
| Syncro Scan | 60p: 60.00Hz to 7,200Hz 59.94p/59.94i: 60.00Hz to 7,200Hz 50p/50i: 50.00Hz to 7,200Hz 29.97p: 30.00Hz to 7,200Hz 25p: 25.00Hz to 7,200Hz 23.98p: 24.00Hz to 7,200Hz 59.94p･120fps: 120Hz to 7,200Hz 50p･100fps: 100Hz to 7,200Hz |
||
| White Balance | ATW､3200K, 5600K AWB-A､AWB-B VAR (selectable between 2000 K and 15000 K by designating a value) *ATW Speed 3-stage variables. |
||
| Gamma | HD / NORMAL / CINEMA1 / CINEMA2 *HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75) R BLACK GAMMA (-20~+20)B BLACK GAMMA (-20~+20) |
||
| Chroma Amount Variability |
OFF, -100% to 40% | ||
| Scene File | Scene 1 to 8 | ||
| HDMI | 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4 HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
||
| Synchronization System |
Internal/External synchronization (BBS/Tri-level sync) | ||
| G/L In | BBS (Black Burst Sync), tri-level sync supported) | ||
| AUDIO INPUT 1/2 | XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)3-pin XLR female connectors, 2ch, balanced input・During MIC input Input level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage:47 V±2 V Input impedance: Approx. 10kΩ・During LINE input Input level : 0 dBu ( or +4dBu/-20dBu) Input impedance: Approx. 10kΩ・Input volume variable range: -40 dB ~ 0dB ~ +20 dB (1dBstep)・Embedded audio output level: -12dBFS/-18dBFS/-20dBFS ・Sampling frequency: 48 kHz ・Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP) | ||

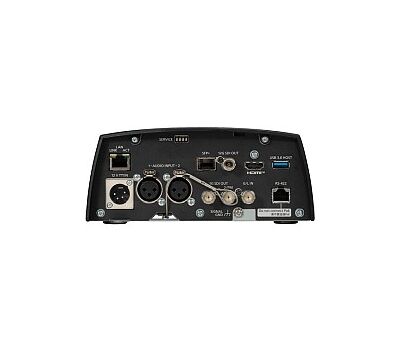

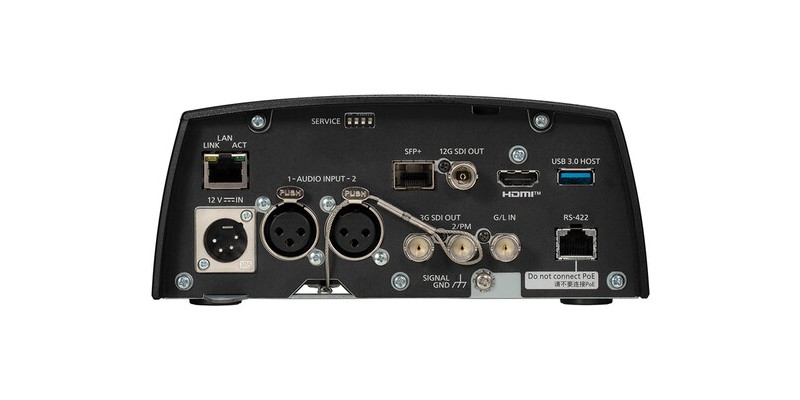

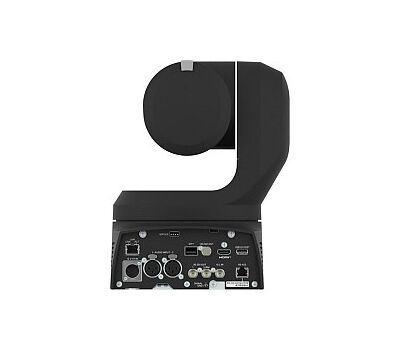

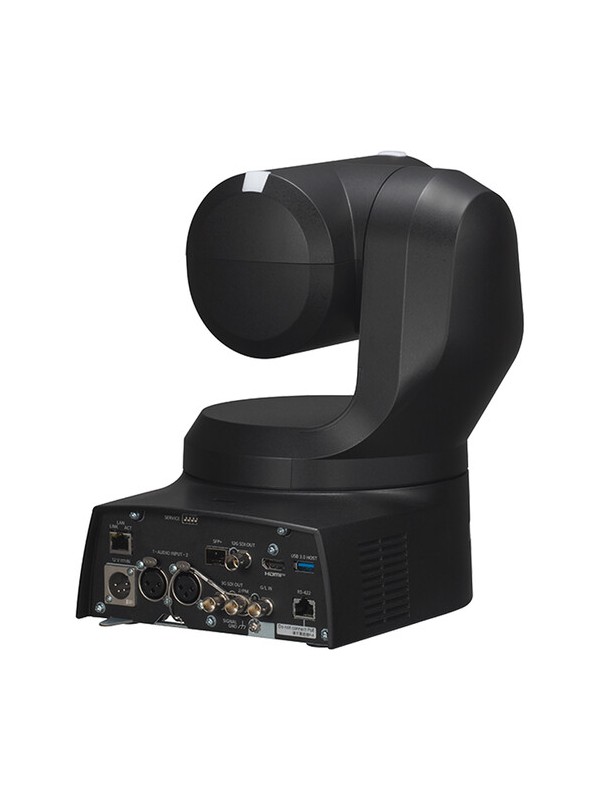

| Input | DC 12 V IN, G/L IN(BNC) | ||
| 12G SDI OUT | SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1) Level-A/Level-B supported |
||
| 3G SDI OUT1 | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported | ||
| 3G SDI OUT2/PM | SMPTE424M /SMPTE292M / 75 Ω(BNC×1) *Level-A/Level-B supported | ||
| SFP+ | SFP+ standard (Single Fiber) *This unit does not support input by optical signals |
||
| LAN | LAN connector for IP control (RJ-45) | ||
| USB | USB3.0 HOST(5G mobile router with USB tethering support) *Limited power supply to USB Wifi dongle |
||
| RS-422 | CONTROL IN RS422A (RJ-45) | ||
| IP Connecting Cable | If you have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable) max. 100 m (328 ft) If you don't have PoE++ ethernet hub LAN cable *1( category 5e or above､straight cable) max. 100 m (328 ft) 1 STP(Shielded Twisted Pair) is recommended 2 Category 6 or above is used for 4K video transmission. |
||
| AW Protocol Connecting Cable | LAN cable* (category 5e or above, straight cable) max. 1000 m (3280 ft) *STP (Shielded Twisted Pair) is recommended |
||
| Pan/Tilt Operation Speed | Speed range: 0.08 °/s ~180°/s( Normal mode) 3 speed modes installed: Normal: ~60°/s, Fast1: ~90°/s, Fast2: ~180°/s |
||
| Quietness | NC35 or less *When standing still, NC25 or less | ||
| Tilting Range | -30°~ 210° *Depending on the pan or tilt position, the camera may be reflected in the image. |
||
| Panning Range | ±175° | ||
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) *To ensure safety, the unit must be secured using the mount bracket supplied. |
||
| Windows | Windows®10 Microsoft Edge Google Chrome |
||
| Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360 | ||
| Mac | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
||
| Android | Android OS Google Chrome |
||
| Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI|HX Ver2, High Bandwidth NDI | ||
| Image Transmission setting (JPEG) | Frame rate : Max. 30fps No bit rate specified JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate Image quality: Fine/Normal |
||
| Image Transmission Setting (H.264) | Transmission Type : Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission mode :CBR, VBR Frame Rate [60Hz] 30fps / 60fps [50Hz] 25fps / 25fps Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps /12288kbps/14336kbps/20480kbps/24576kbps /51200kbps/76800kbps |
||
| iPhone / iPad / iPod touch | iOS, Safari, iPadOS | ||
| Image Transmission Setting (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port ransmission Mode: CBR,VBR Frame Rate [60Hz] 30fps / 60fps [50Hz] 25fps / 25fps Max to Min Bit Rate: 2048kbps/4096kbps/8192kbps/10240kbps/ 12288kbps/14336kbps/20480kbps/24576kbps /51200kbps/76800kbps |
||
| Audio Compression Type | AAC-LC, 48kHz/16bit/2ch | ||
| Output Format | Video Format (Full x1, MONI x1.Crop x1, all of these same format) 1080/60p, 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native), 1080/24p, 1080/23.98p(Native), 720/59.94p, 50p・Audio Specification INPUT1/INPUT2 PCM/48khz/24bit/1ch x2 |
||
| Output Format (High bandwidth NDI) | 4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p |
||
| Image Resolution (NDI|HX Ver.2) | 3840x2160, 1920x1080, 1280x720 | ||
| Image Streaming Setting | High Bandwidth NDI Transmisiion Type: TCP /UDP, Unicast/Multicast Bit Rate: Max. 250Mbps NDI|HX version.2: Transmission Type: TCP/UDP, Unicast/Multicast Frame Rate: [60Hz] 5fps/15fps/30fps/60fps [50Hz] 5fps/12.5fps/25fps/50fps Max Bit Rate: 512kbps/768kbps/1024kbps/1536kbps /2048kbps/3072kbps/4096kbps /6144kbps/8192kbps/10240kbps/12288kbps /14336kbps/16384kbps/20480kbps/24576kbps |
||
| Audio Compression Type 2 | High Bandwidth NDI: AAC, 48kHz, 2ch NDI|HX Ver.2: AAC-LC, 48kHz/16bit/2ch |
||
| Number of Output (TX) | Video: 3 line (Full x1, MONI x1.Crop x1) Audio: 2 line Auxiliary data: No output |
||
| Number of Input (RX) | Video: 1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu) Audio: No input Auxiliary data: No input |
||
| Cropping | Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available | ||
| Image Stabilization | Hybrid method of OIS 2-axis + Roll direction correction MENU switching: select between OFF / O.I.S.(STABLE) / O.I.S.(PAN/TILT) / HYBRID(STABLE) / HYBRID(PAN/TILT) |
||
| Power LED | ON/OFF control | ||
| Tripod Screw Penetration Measures | Possible | ||
| Privacy Mode | The lens surface faces downward when standing by (ON/OFF) | ||
| Input Format | Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p, 1080/59.94i, 50i, 1080/29.97p(Native), 25p(Native) 1080/24p, 1080/23.98p(Native), 720/59.94p, 50p |
||
| HDR/SDR | HLG/BT.2020 compatible, SDR/BT.709 compatible | ||
| F Number Display | Displayed on the AW-RP150 and AW-RP60 sides | ||
| NDI | High Bandwidth NDI, NDI|HX Ver.2 included as standard | ||
| IP menu display | supported *Non-synchronous with SDI-OUT | ||
| VR (FreeD) (IP/RS422) | supported | ||
| Yellow Tally | supported | ||
| PTP | supported | ||
| 5G/WiFi 6 | Compatible with recommended products only | ||
| WFM display | Output with video superimposed from 3G/SDI OUTPUT2 | ||
| Return Video Output | Output return video input from ST 2110 via SDI_OUT2 | ||
| Horizontal Level Gauge | ON/OFF control in OSD MENU or Web GUI | ||
| Wireless Remote Controller | AW-RM50AG（Size "AA" dry battery x 2, obtained separately） | ||
| Dimensions (W x H x D) | 213.0 mm x 277.0 mm x 240.0 mm (8.39inches x 10.91inches x 9.45inches) [excluding protrusions, cable cover, ceiling mount bracket] |
||
| Supported Format | ST 2110: 10/20/21/30 PTP: ST 2059-2 NMOS: IS-04/IS-05 |
||
| Output Format (ST 2110) | HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p |
||
| SFP+(ST 2110) | Compatible protocol: -ST 2110-10/-20/-21/-30 -PTP ST 2059-2 -NMOS IS-04/IS-05 Output number: Video x3 (Full, Crop, Monitor), Audio x2 Input number: Video x1 (RETURN) Video format: FHD *Same as system format |
||
| Zoom | Optical Zoom: 20x i.Zoom: UHD 24x, FHD 32x Digital Extender Zoom: 1.4x, x |
||
