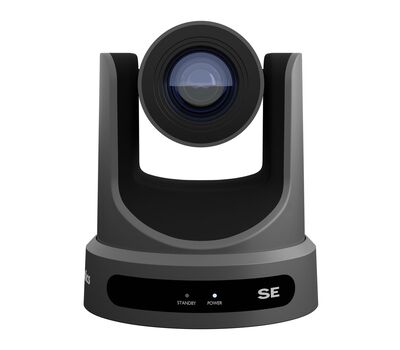

PTZOptics Move SE Auto Tracking PTZ Robotkamera
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
PTZOptics Move SE Auto Tracking PTZ Robotkamera
• 1080p60 max. felbontás
• 1/2,8" Sony CMOS érzékelő
• Választható optikai zoom: 12x, 20x, 30x
• HDMI, 3G-SDI, USB, IP kimenetek
• RS-232, RS-485 és IP vezérlés
• H.265/H.264/MJPEG tömörítés
• Auto-Tracking, Tápellátás: PoE, DC
PTZOptics Move SE Auto Tracking PTZ Robotkamera - PTZ kamera
Érzékelő mérete:
- 1/2,8"
Érzékelő effektív felbontása:
2.07 MP
Támogatott formátum:
- HD (1280x720)
- Full HD (1920 x 1080)
- Full HD (de 4K nem)
Képkocka sebesség HDMI/SDI:
- 30 (29,97)
- 50
- 60 (59,94)
- Interlaced (i) videó.támogatás
Objektív (optikai zoom):
- 12x
- 20x
- 30x
Digitális zoom:
16x
Legnagyobb látószög (W):
60.7°
Legszűkebb látószög (T):
2.3°
35mm eq. gyújtótávolság (W):
31.1 mm
35mm eq. gyújtótávolság (T):
900 mm
Legnagyobb rekesznyílás (W):
f/1.8
Legnagyobb rekesznyílás (T):
f/2.8
Videó kimenet:
- 3G-SDI (FullHD p60-ig)
- HDMI 1.0-1.2a (FHD p60-ig)
- USB 3.0
- LAN (NDI, NDI|HX)
- LAN (RTSP, RTMP, SRT)
Streaming:
- RTMP
- RTSP
- SRT
- NDI
- Direct streaming támogatás
NDI:
- HX|2
Vezérlő interface, WiFi:
- IP/LAN
- RS-232
- RS-485
Vezérlő protokoll:
- Visca
- NDI
- Pelco-D, Pelco-P
- ONVIF
Hálózati kapcsolat:
- Ethernet 100 Mbit
TC, Genlock, FreeD, Tally:
- Tally
Pan szögelfordulás:
340°
Tilt lefelé:
-30°
Tilt felfelé:
+90°
Pan sebesség min.:
1.7 °/s
Preset Pan sebesség:
- N/A °/s
Preset Tilt sebesség:
- N/A °/s
Preset-ek max. száma:
255
Preset szám IR távirányítóról:
- Igen
Audio:
- Line-in (külön, 3,5 mm jack)
- Line out
Auto tracking - célkövetés:
- Auto-tracking
Tracking range:
- N/A m
Egyéb jellemzők:
- 2D&3D zajcsökkentés
- Tripod mount 1/4” (1/4-20 UNC)
• PTZOptics Move SE Robotkamera
• IR távvezérlő
• Tápegység
• Jótállás: 5 év
• IR távvezérlő
• Tápegység
• Jótállás: 5 év
| PTZOptics Move SE PTZ Camera | |||
| Image Sensor & Lens | |||
|
Video Sensor
|
1/2.8’’, CMOS, Effective Pixel: 2.07M
|
||
|
Resolution and Frame Rate
|
1080p-60/50/30/25/59.94/29.97,
1080i-60/50/59.94, 720p-60/50/59.94 |
||
|
Digital Zoom
|
Off (1920x1080), 2X (960x540), 3X (640x360),
4X, (480x270), 8X (240x135), 16X (128x72) |
||
|
Lens
|
12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
||
| Field of View |
12x:
Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide),
Vertical: 1.28° (tele) ~ 34.1° (wide) |
||
| Display Field of View | 12x: 85.2° 20x: 69.6° 30x: 69.6° |
||
| Video Based Auto-Tracking | Supported | ||
|
Min. Lux
|
0.5 Lux @ (F1.8, AGC ON)
|
||
|
Shutter
|
1/30s ~ 1/10000s
|
||
|
White Balance
|
Auto, Indoor, Outdoor, One Push, Manual, VAR
|
||
|
Backlight Compensation
|
Supported
|
||
|
Digital Noise Reduction
|
2D & 3D Digital Noise Reductions
|
||
|
Video Signal Noise Reduction
|
>=55dB | ||
| Pan/Tilt Movement | |||
|
Horizontal Rotation Range
|
±170° | ||
| Pan Movement |
1.7° ~ 100°/s
|
||
|
Tilt Movement
|
+90° to -30°
|
||
|
Tilt Speed
|
1.7° ~ 69.9°/s
|
||
|
Presets
|
255 Presets
|
||
|
Image Flip, Mirror and Freeze
|
Supported
|
||
|
Preset Accuracy
|
0.1°
|
||
| USB Specifications | |||
| Operating System | Windows 7 / 8.1 / 10 / 11 / Mac OS, Linux, Android | ||
| Color System/Compression | YUY2 / MJPEG | ||
| Video Format | YUY2: Max resolution: 1920x1080@30 MJPEG: Max resolution: 1920x1080@60 |
||
| USB Audio | Supported | ||
| UVC Version | UVC 1.1 ~ 1.5 | ||
| UVC Control | Supported | ||
| IP Video Specifications | |||
| Video Compression | H.264, H.265, MJPEG | ||
| Video Stream | First Stream, Second Stream | ||
| First Stream Resolutions | 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360 |
||
| Second Stream Resolutions | 1280x720, 720x480, 720x408, 640x480, 640x360, 480x320, 320x240 |
||
| Video Bitrate | First Stream: 32kbps ~ 102400kbps Second Stream: 32kbps ~ 20480kbps |
||
| Bit Rate Type | Constant Bit Rate (CBR), Variable Bit Rate (VBR) | ||
| Frame Rate | 50Hz: 1 ~ 50 fps 60Hz: 1 ~ 60 fps |
||
| Audio Comppression | AAC | ||
| Audio Bit Rate | 96kbps, 128kbps | ||
| Supported Protocols | TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI|HX, SRT, Multicast, etc. |
||

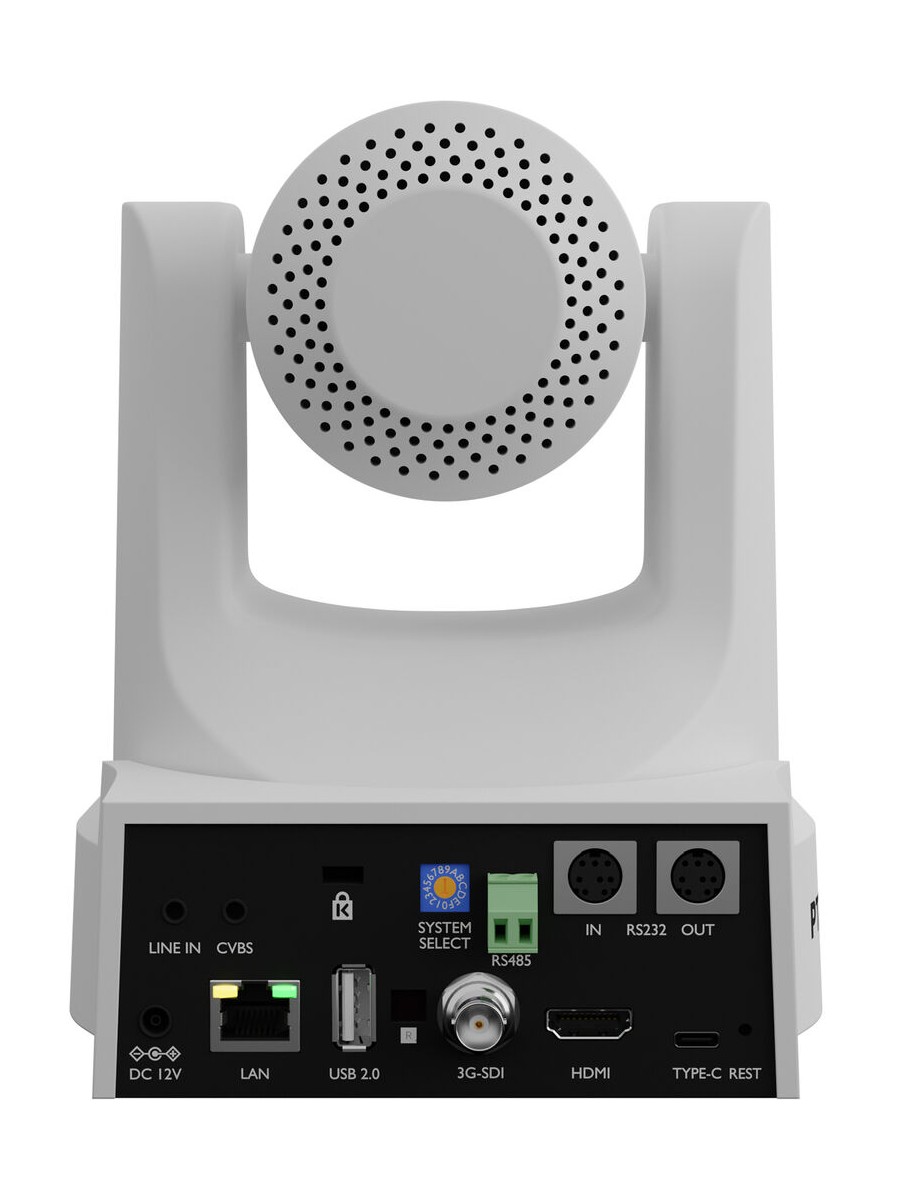

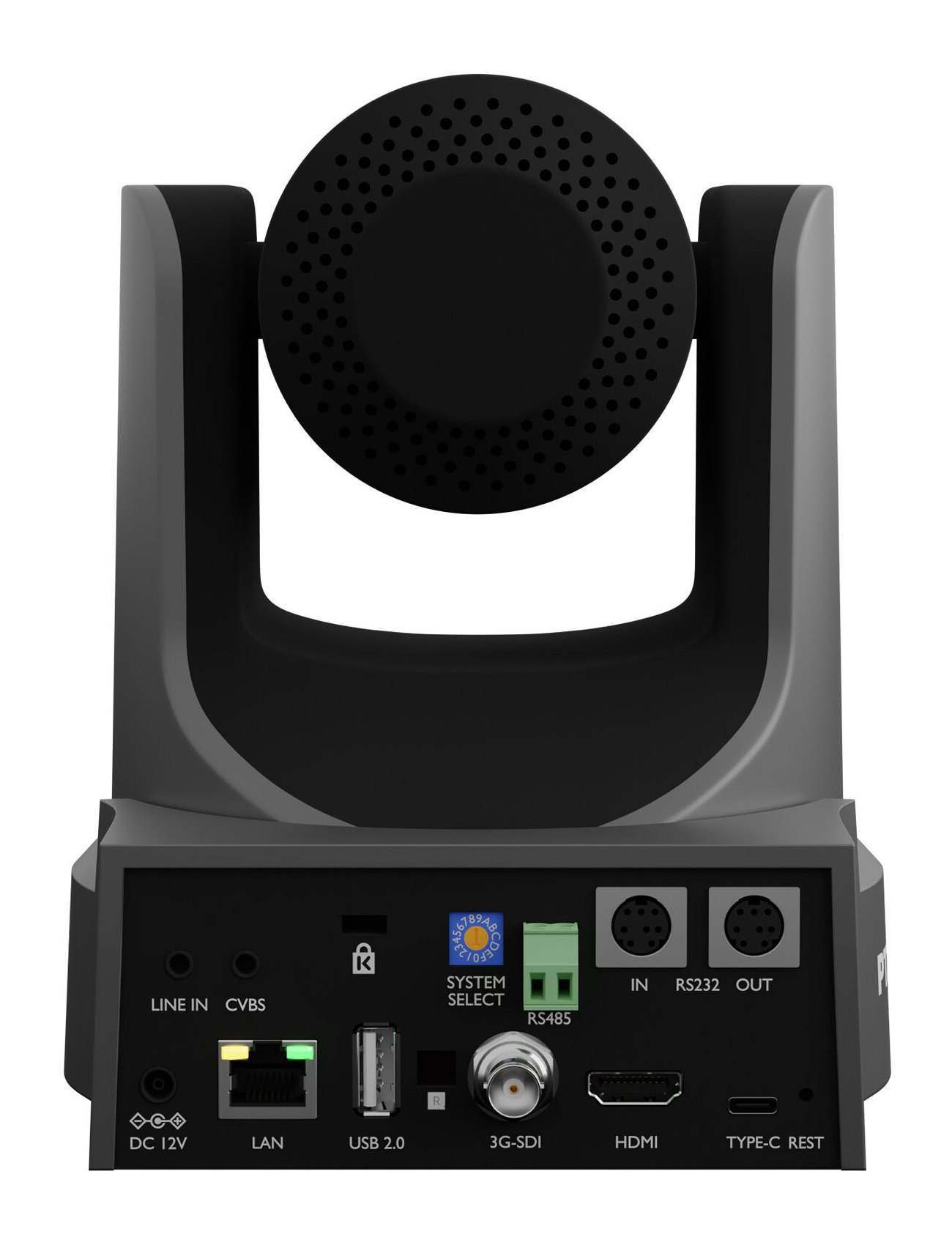

| Input/Output Interfaces | |||
|
HD Video Output
|
1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
1x HDMI: version 1.3 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, 1x USB 3.0 Type C |
||
|
Audio Interface
|
1x 3.5mm Line level Input
|
||
|
Communication Interface
|
1x 8 pin Mini-din RS232 input, Max distance: 30m,
protocol: VISCA / Pelco-D / Pelco-P 1x 8 pin Mini-din RS232 output, Max distance: 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 2 pin Phoenix port, RS485 input / output, Max distance: 1200m, protocol: VISCA / Pelco-D / Pelco-P |
||
|
IR
|
4x IR Addresses, Max distance: 9m
|
||
|
Power Jack
|
JEITA type (DC IN 12V)
|
||
| Power Options | |||
|
Power Supply
|
DC 12V
|
||
|
Input Power
|
2A (Max)
|
||
| PoE | Supported | ||
| Physical Specifications | |||
|
Material
|
Aluminum, Plastic
|
||
|
Color
|
White and Gray
|
||
|
Dimensions (W x D x H)
|
142mm x 169mm x 164mm
(189mm H max height w/ tilt up) |
||
|
Weight
|
1.445 kg
|
||
|
Working Environment
|
Indoor
|
||
|
Operating Temperature
|
-10°C to 40°C
|
||
|
Storage Temperature
|
-40°C to 60°C
|
||
