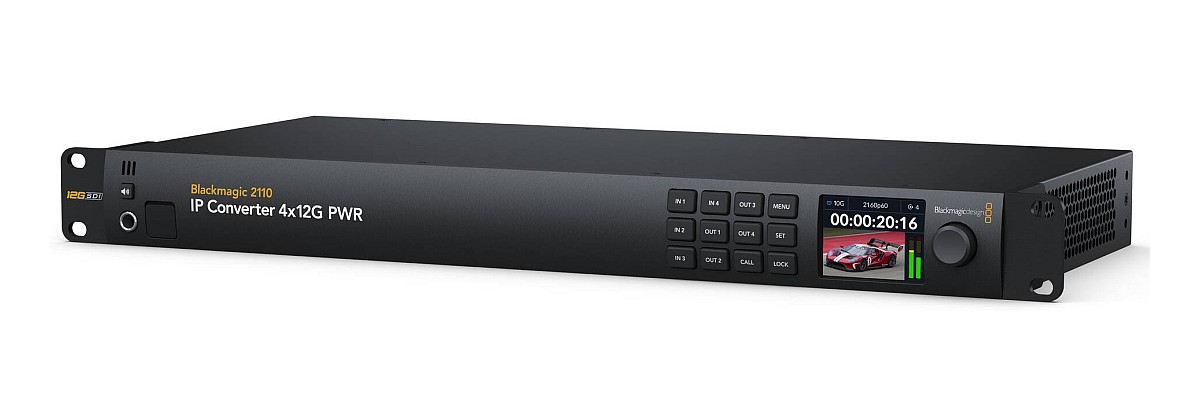

Blackmagic 2110 IP Converter 4x12G PWR
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Lehetővé teszi a 12G-SDI eszközök integrálását SMPTE-2110 IP alapú rendszerekbe
• 4 független, kétirányú 12G-SDI és SMPTE-2110 IP videokonverterrel rendelkezik
• 10G Ethernet csatlakozó, amely egyidejűleg tápellátást is biztosít

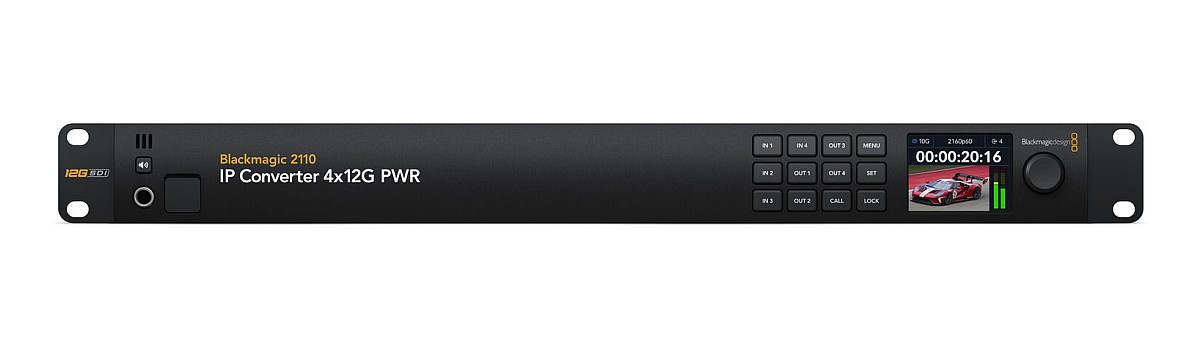

• 1RU kialakítás LCD vezérlőpanellel
• HD és UHD felbontás támogatása 2160p60-ig
• 4 független, kétirányú 12G-SDI és SMPTE-2110 IP videokonverterrel rendelkezik
• 10G Ethernet csatlakozó, amely egyidejűleg tápellátást is biztosít
• 1RU kialakítás LCD vezérlőpanellel
• HD és UHD felbontás támogatása 2160p60-ig
Blackmagic 2110 IP Converter 4x12G PWR Specifications |
|||

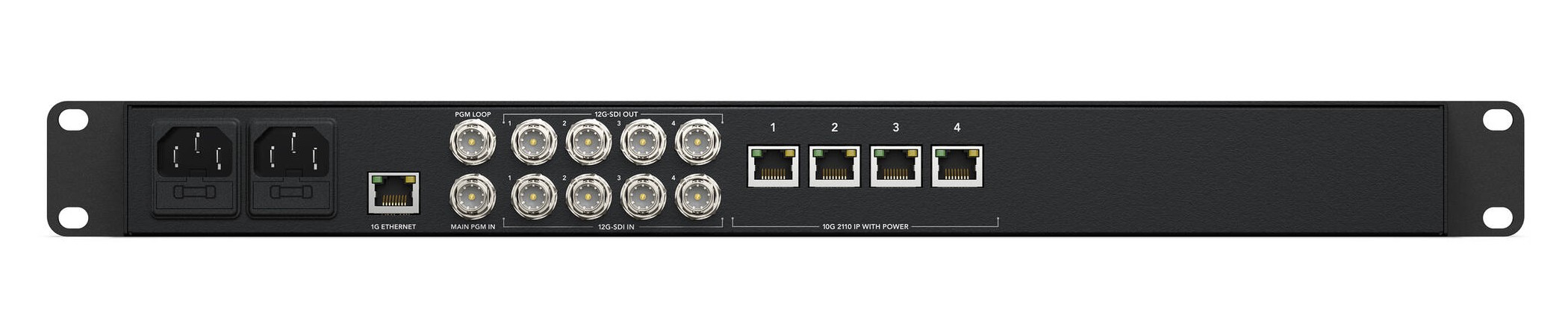

| Connections | |||
|
Total SDI Inputs
|
5 | ||
|
SDI Video Inputs
|
4 | ||
| SDI Main Program Inputs | 1 | ||
|
Total SDI Outputs
|
5 | ||
|
SDI Video Outputs
|
4 | ||
|
SDI Main Program Outputs
|
1 Loop Out. | ||
|
SDI Rates
|
270Mb, 1.5G, 3G, 6G, 12G. | ||
| SMPTE ST-2110 IP Video Inputs | 4 x 10G Ethernet | ||
| SMPTE ST-2110 IP Video Outputs | 4 x 10G Ethernet | ||
| Analog Audio Outputs | 1 x 6.35 mm headphone socket. | ||
| SDI Audio Inputs | 16 Ch embedded audio on SDI input. | ||
| SDI Audio Outputs | 16 Ch embedded audio on SDI loop output. | ||
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. | ||
| SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. | ||
| Multi Rate Support | Auto detection of SD, HD, Ultra HD and 4K. | ||
| Reclocking | Yes | ||
| Ethernet | 4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters.
1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
|
||
| Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. | ||
|
SDI Video Standards
|
|||
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL | ||
|
HDMI HD Video Standards
|
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
|
Ultra HD Video Standards
|
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 | ||
|
4K Video Standards
|
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI | ||
|
SDI Compliance
|
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. | ||
|
SDI Video Rates
|
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. | ||
|
SDI Color Precision
|
4:2:2 | ||
| SDI Color Space | YUV | ||
| SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. | ||
| IP Video Compliance | |||
|
SMPTE 2110-20 (Uncompressed Video)
|
IGMP v2 | ||
|
SMPTE 2110-21 (Traffic Shaping)
|
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
||
|
SMPTE 2110-30 (PCM)
|
Audio Conformance level: Level C | ||
|
SMPTE 2110-40 (Ancillary Data)
|
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. | ||
|
Codec
|
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. | ||
|
Precision Time Protocol
|
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
||
|
NMOS IS-04 Discovery and Registration
|
v1.3.2 Peer-to-peer via mDNS/DNS‑SD |
||
| NMOS IS-05 Connection Management | v1.1.2 | ||
|
NMOS BCP-002-01
|
Natural Grouping | ||
|
NMOS BCP-004-01
|
Receiver capabilities | ||
| Audio | |||
| Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket. | |||
| Control | |||
| 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings | |||
| Power Requirements | |||
| Power Supply | 2 x Internal 100 ‑ 240V AC 50/60Hz with IEC C14 mains input. | ||
| Power Usage | TBA | ||
• Blackmagic 2110 IP Converter 4x12G PWR
• 1 év jótállás
