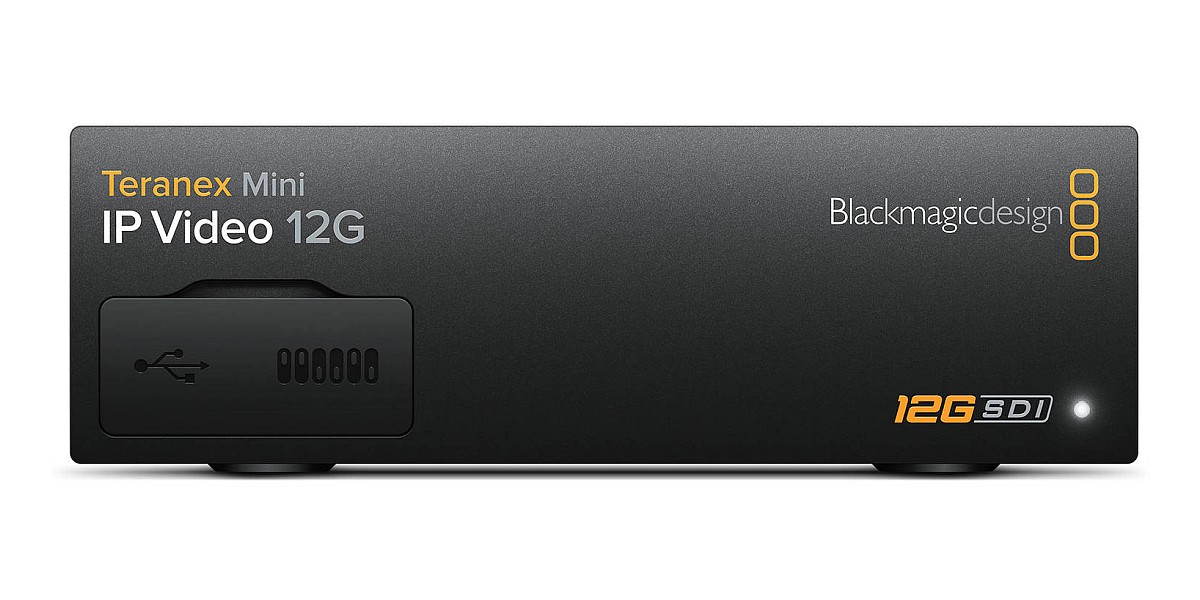

Blackmagic Design Teranex Mini IP Video 12G
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Fejlett nagy adatátviteli sebességű jelátalakító
• TICO Encoder/Decoder
• 4K DCI 4096x2160p
• Két független 12G-SDI 10-bites kimenet
• Gigabites Ethernet akár 1080p60-ig
• Opcionális 10G optikai Ethernet támogatás
• Opcionális LCD intelligens előlap
• Intelligens hőelvezetés
• TICO Encoder/Decoder
• 4K DCI 4096x2160p
• Két független 12G-SDI 10-bites kimenet
• Gigabites Ethernet akár 1080p60-ig
• Opcionális 10G optikai Ethernet támogatás
• Opcionális LCD intelligens előlap
• Intelligens hőelvezetés
Blackmagic Design Teranex IP Video 12G Specifications |
|||

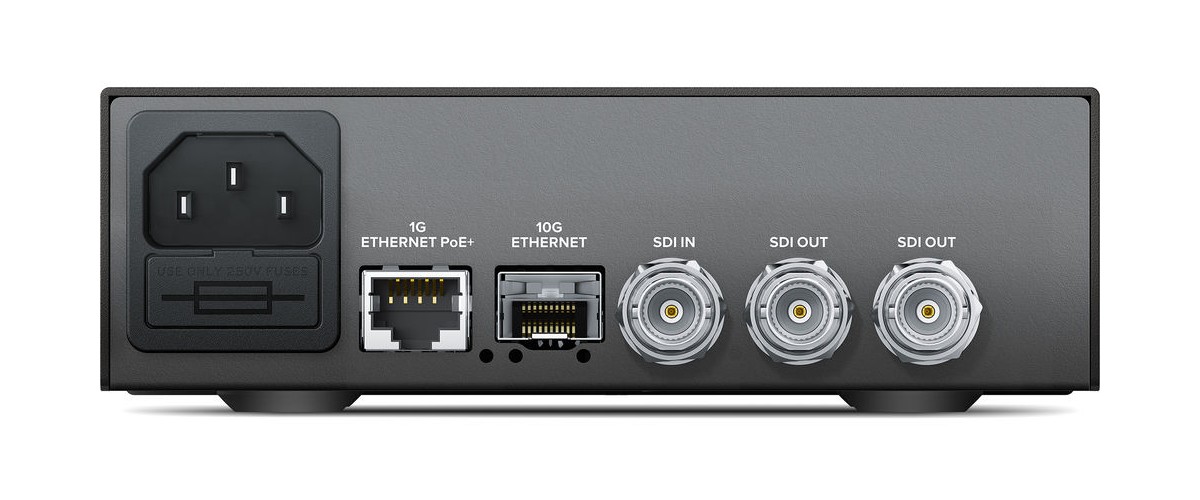

| Connections | |||
SDI Video Inputs |
1 x 10-bit HD-SDI, 6G-SDI and 12G-SDI | ||
SDI Video Outputs |
2 x 10-bit HD-SDI, 6G-SDI and 12G‑SDI | ||
| Ethernet | Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding. | ||
| Multi Rate Support | Auto detection of HD-SDI, 6G-SDI or 12G‑SDI. | ||
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet. | ||
| Configuration | Ethernet or USB 2.0 for firmware updates and IP address setting. | ||
| Reclocking | On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video. | ||
Standards |
|||
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
||
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 | ||
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI | ||
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, ITU‑R BT.656 and ITU‑R BT.601 | ||
| SDI Video Rates | SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G‑SDI. | ||
| SDI Video Sampling | 4:2:2 plus 4:4:4 up to 4K DCI 30p | ||
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. | ||
| SDI Color Precision | 10-bit 4:2:2 and 4:4:4 | ||
| SDI Auto Switching | Automatically selects between HD-SDI, 6G-SDI and 12G‑SDI. | ||
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. | ||
| Display | |||
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings. |
|||
Software |
|||
Software Control |
Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac. | ||
Internal Software Upgrade |
Via included updater application. | ||
Settings Control |
|||
Control |
Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons. | ||
| Power Requirements | |||
| Power Supply | IEC power cable required. 100 - 240V AC input. | ||
| Power Fail Protection | Settings preserved and restored instantly at power on. | ||
| Power over Ethernet | Can be powered via 48V DC using PoE+ (power over Ethernet). | ||
| Power Consumption | 16 Watts | ||
• Blackmagic Design Teranex Mini IP Video 12G
• SD kártya konfigurációs szoftverrel
• 3 év jótállás
• SD kártya konfigurációs szoftverrel
• 3 év jótállás
