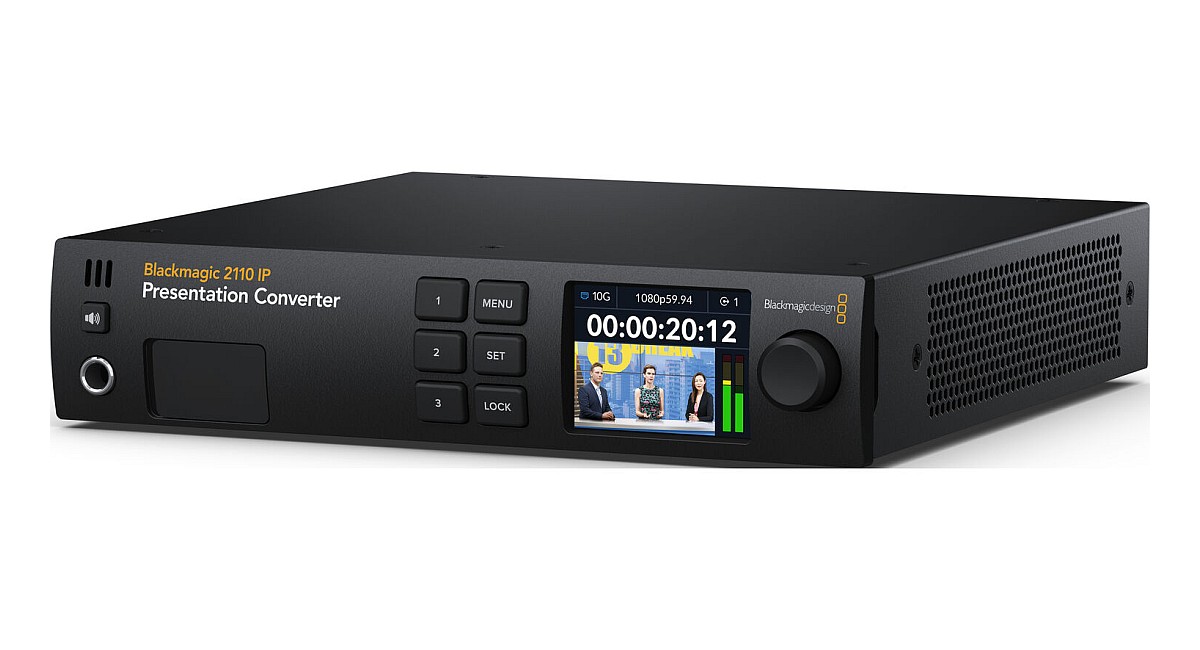

Blackmagic 2110 IP Presentation Converter
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• HDMI és 12G-SDI–SMPTE-2110 IP konverzió
• HDMI I/O projektorokhoz, 12G-SDI kimenet, USB-C interfész
• 10G Ethernet PoE-val
• 3-tűs XLR mic/line in/out
• 1RU kialakítás LCD vezérlőpanellel
• HD és UHD felbontás támogatása 2160p60-ig
• HDMI I/O projektorokhoz, 12G-SDI kimenet, USB-C interfész
• 10G Ethernet PoE-val
• 3-tűs XLR mic/line in/out
• 1RU kialakítás LCD vezérlőpanellel
• HD és UHD felbontás támogatása 2160p60-ig
Blackmagic 2110 IP Presentation Converter Specifications |
|||

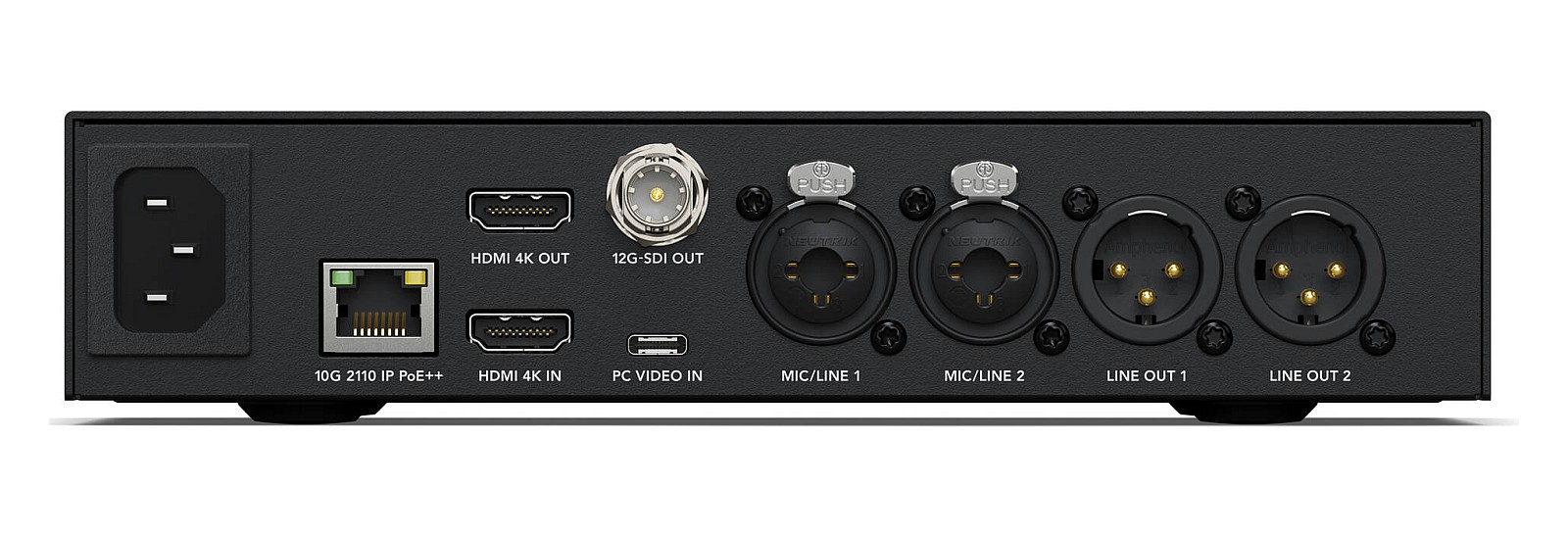

| Connections | |||
|
PC Video Inputs
|
1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability. | ||
|
HDMI 2.0 Video Inputs
|
1 | ||
| HDMI 2.0 Video Outputs | 1 | ||
|
SDI Video Outputs
|
1 Automatically standards converted to destination |
||
|
SDI Rates
|
270Mb, 1.5G, 3G, 6G, 12G. | ||
|
SMPTE ST-2110 IP Video Inputs
|
1 x 10G Ethernet | ||
|
SMPTE ST-2110 IP Video Outputs
|
1 x 10G Ethernet | ||
| Analog Audio Inputs | 2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power. | ||
| Analog Audio Outputs | 2 channels of professional balanced analog audio with 3-pin XLR connectors.
1 x 6.35 mm headphone jack
|
||
| SDI Audio Outputs | 16 Channels embedded in SD/HD/2K/UHD/4K. | ||
| HDMI Audio Inputs | 8 Channels embedded in SD/HD/UHD/4K. | ||
| HDMI Audio Outputs | 8 Channels embedded in SD/HD/UHD/4K. | ||
| USB | 2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). | ||
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. | ||
|
SDI Video Standards
|
|||
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL | ||
|
HD Video Standards
|
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
||
|
Ultra HD Video Standards
|
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
||
|
2K Video Standard
|
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
||
|
SDI Compliance
|
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. | ||
|
SDI Metadata Support
|
RP 188/SMPTE 12M-2 and closed captioning. | ||
|
Multiple Rate Support
|
SDI video connections are switchable between SD/HD/2K/UHD and 4K. | ||
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. | ||
| SDI Video Sampling | 4:2:2, 4:4:4 | ||
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes.
8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
|
||
| SDI Color Space | REC 601, REC 709 and REC 2020 | ||
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. | ||
| HDMI Audio Sampling | |||
|
SD Video Standards
|
525i59.94 NTSC, 625i50 PAL | ||
|
HD Video Standards
|
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
||
|
Ultra HD Video Standards
|
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI | ||
|
4K Video Standards
|
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. | ||
|
HDMI Audio Sampling
|
Television standard sample rate of 48 kHz and 24-bit. | ||
|
HDMI Video Sampling
|
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
||
|
HDMI Color Precision
|
REC 601, REC 709 and REC 2020 | ||
| HDR Support | HDR static metadata packing, HLG and PQ transfer characteristics. | ||
|
HDR Configuration
|
HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. | ||
|
Multiple Rate Support
|
HDMI video connections are switchable between SD/HD/UHD and 4K. | ||
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. | ||
| Ip Video Compliance | |||
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 | ||
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
|
||
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C | ||
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. | ||
| Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. | ||
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
||
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
||
| NMOS IS-05 Connection Management | v1.1.2 | ||
| NMOS BCP-002-01 | Natural Grouping | ||
| NMOS BCP-004-01 | Receiver capabilities | ||
| Control | |||

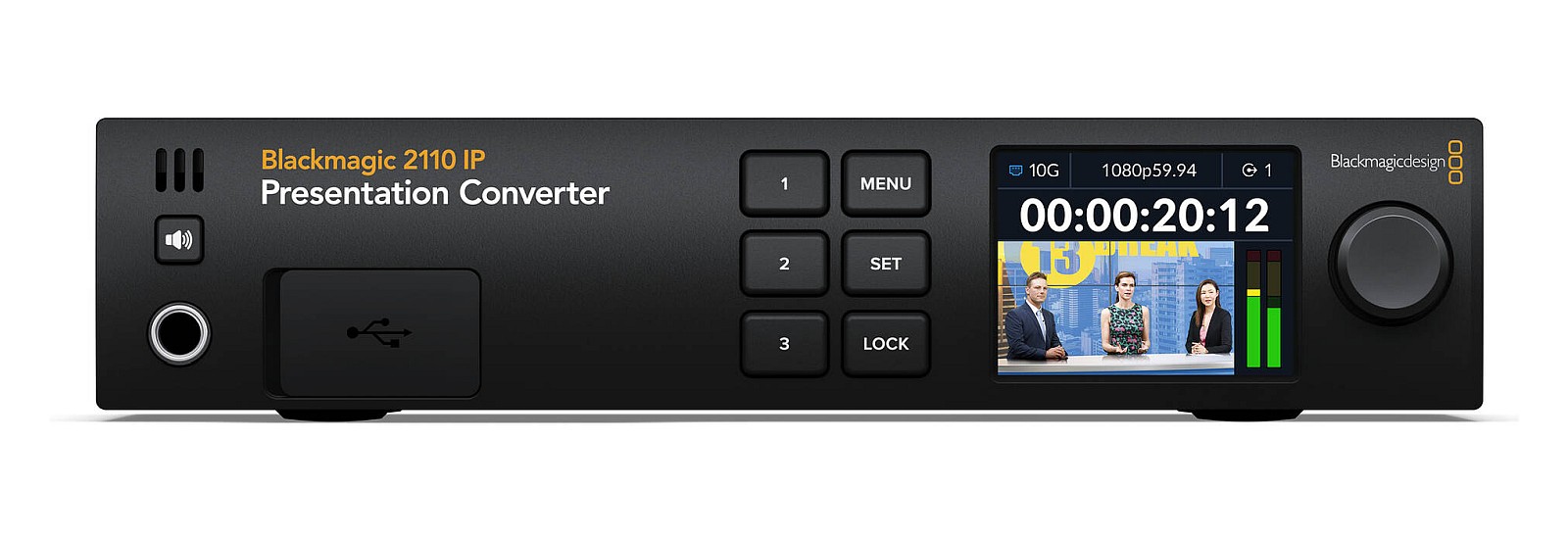

| Built in Control Panel | 6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button. | ||
| Physical Installation | |||
| Half rack unit width, 1 rack unit height. | |||
| Power Requirements | |||
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket. | ||
| Power Usage | TBA | ||
