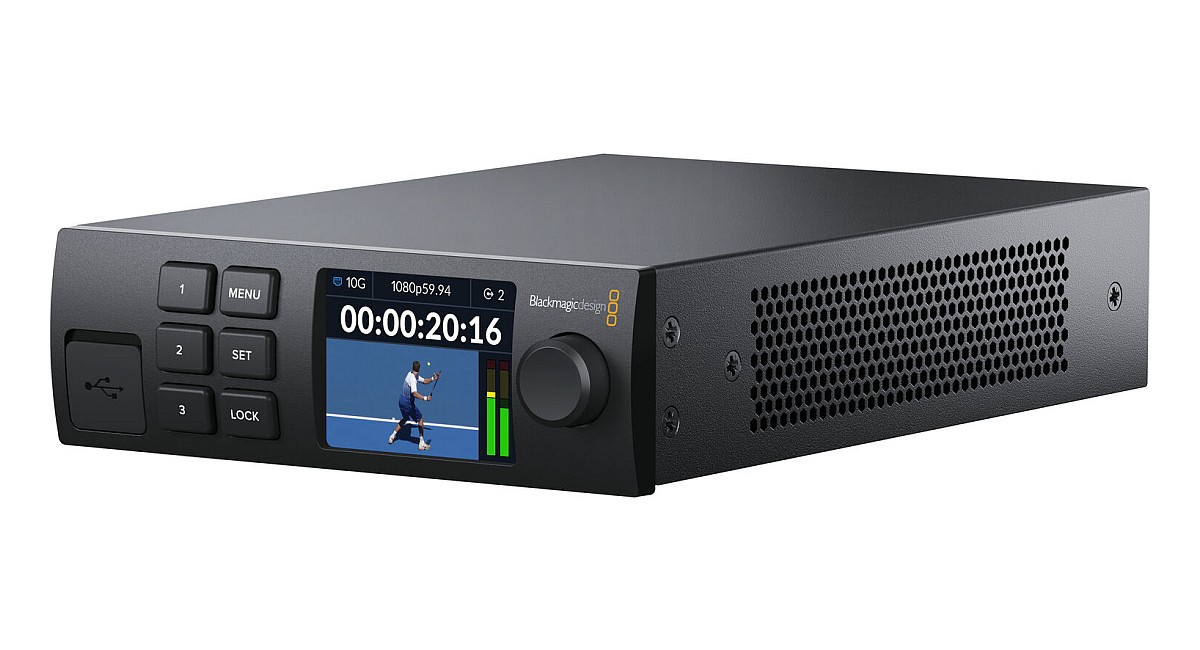

Blackmagic 2110 IP Converter 3x3G
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• A 3G-SDI jeleket átalakítja IP alapú SMPTE 2110 formátumra
• Rackbe szerelhető (1RU)
• 3G-SDI bemenetek, kimenetek, Loop kimenetek
• Integrált 2,2"-os LCD kijelző
• Akár 1080p60 felbontás
• PoE+ támogatás
• Rackbe szerelhető (1RU)
• 3G-SDI bemenetek, kimenetek, Loop kimenetek
• Integrált 2,2"-os LCD kijelző
• Akár 1080p60 felbontás
• PoE+ támogatás
Blackmagic 2110 IP Converter 3x3G Specifications |
|||

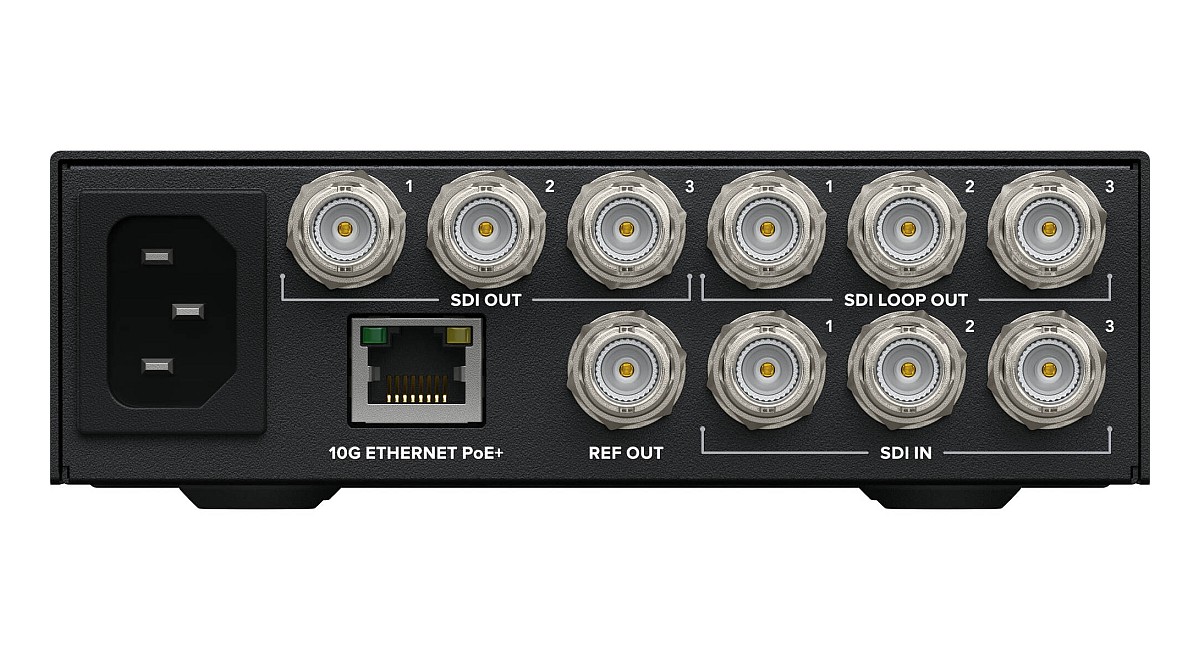

| Connections | |||
SDI Inputs |
3 | ||
SDI Loop Outputs |
3 | ||
SDI Outputs |
3 | ||
SDI Audio Inputs |
16 channels embedded audio. | ||
SMPTE 2110 Input / Output |
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. | ||
10G Ethernet Port |
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. | ||
Reference Output |
Tri-Sync or Black Burst. | ||
Computer Interface |
USB-C for updates, configuration and control. | ||
Video Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL | ||
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 |
||
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601. | ||
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. | ||
Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. | ||
| Color Precision | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. | ||
| Color Space | REC 601, REC 709 | ||
| IP Video Compliance | |||
SMPTE 2110-20 (Uncompressed Video) |
IGMP v2 | ||
SMPTE 2110-21 (Traffic Shaping) |
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous |
||
SMPTE 2110-30 (PCM) |
Audio Conformance level: Level C | ||
SMPTE 2110-40 (Ancillary Data) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. | ||
Precision Time Protocol |
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
||
NMOS IS-04 Discovery and Registration |
v1.3.2 Peer-to-peer via mDNS/DNS-SD |
||
NMOS IS-05 Connection Management |
v1.1.2 | ||
NMOS BCP-002-01 |
Natural Grouping | ||
NMOS BCP-004-01 |
Receiver capabilities | ||
| Control | |||

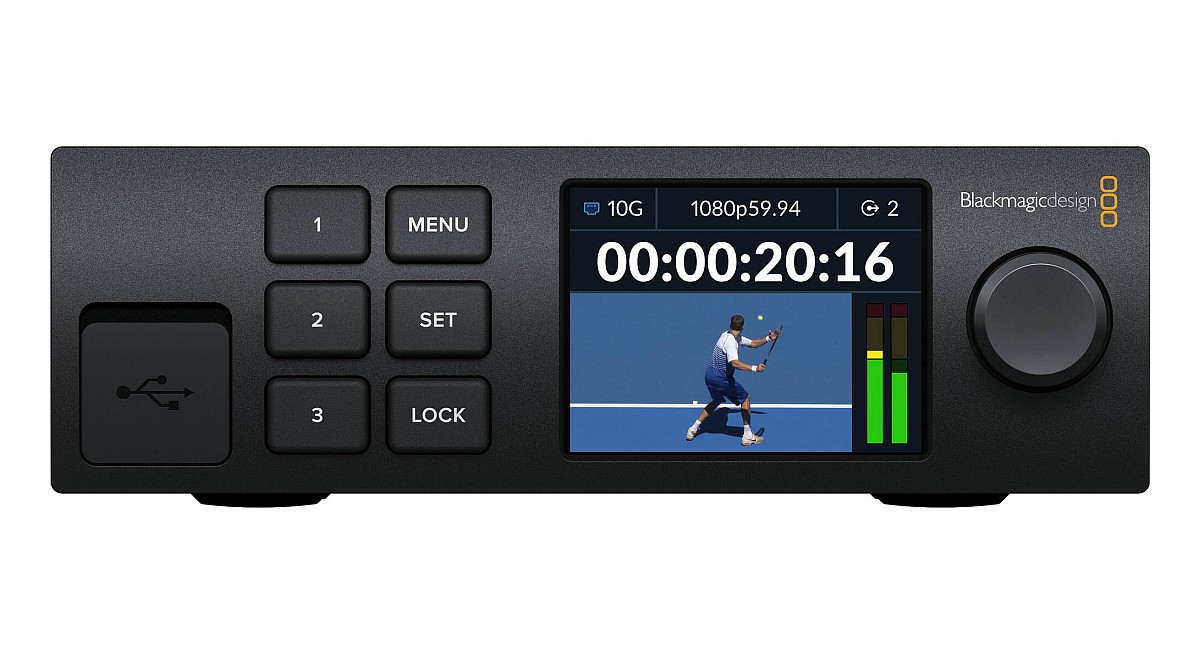

| Built in Control Panel | 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. | ||
| External Control | RJ-45 10Gb/s Ethernet and USB-C. | ||
| Display | |||
| Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings. | |||
| Power Requirements | |||
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. | ||
| Power Inputs | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies |
||
| Power Usage | 20 W | ||
| Environmental Specifications | |||
| Operating Temperature | 5° to 40 ° C (32° to 104° F) | ||
| Storage Temperature | -20° to 60° C (-4° to 140° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
