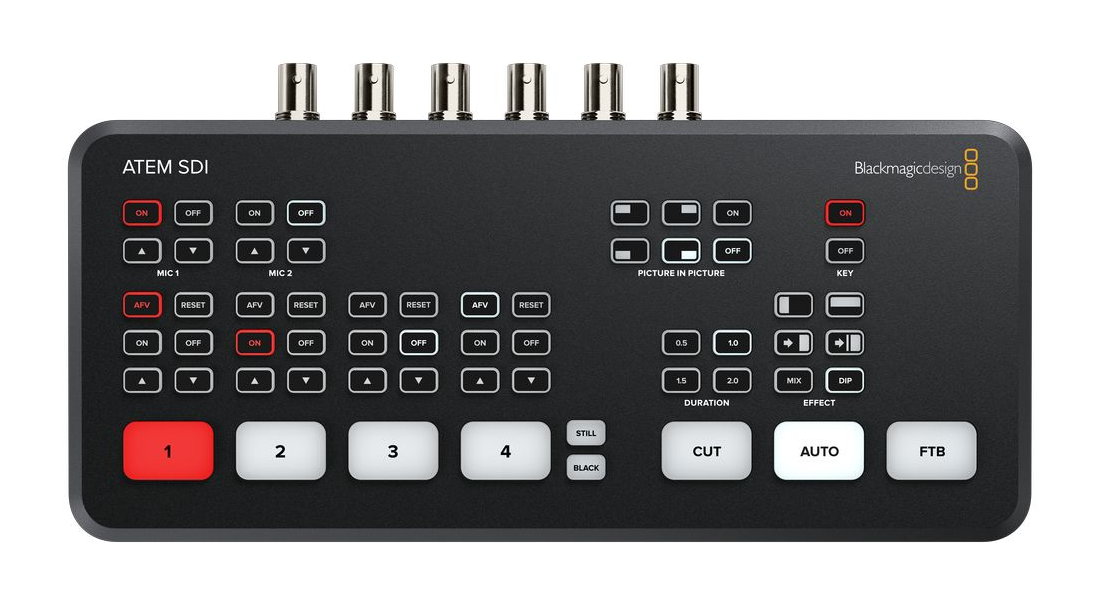

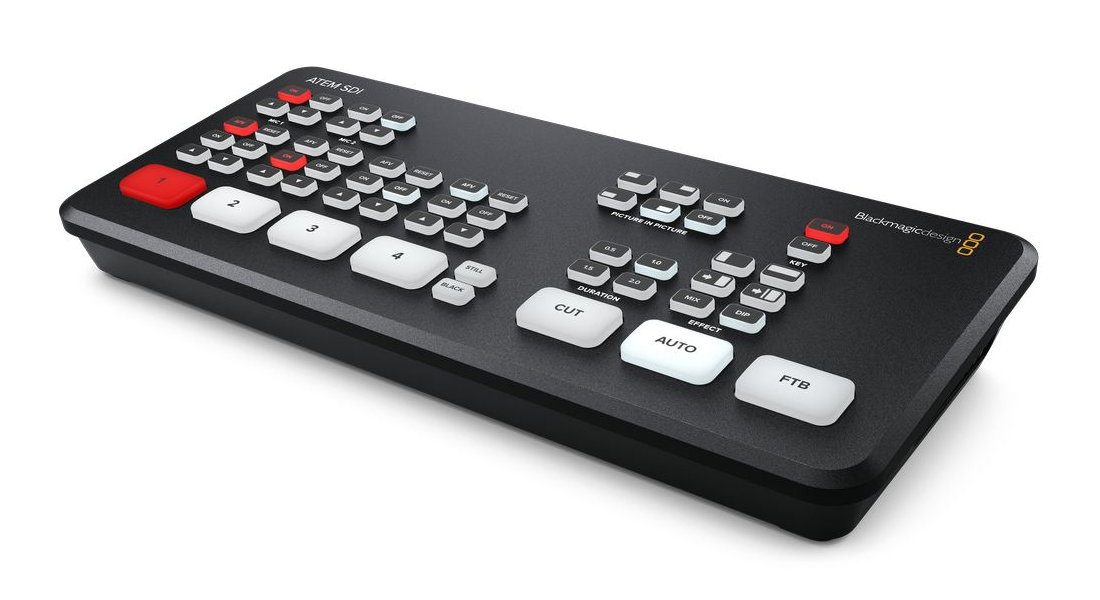

Blackmagic Design ATEM SDI Pro ISO mixer
A Blackmagic Design ATEM SDI Pro ISO switcher tartalmazza az ATEM SDI funkcióit, kiegészülve a beépített
streaminggel és a valós idejű 5 videofolyam felvételével.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések
Blackmagic Design ATEM SDI Pro ISO mixer

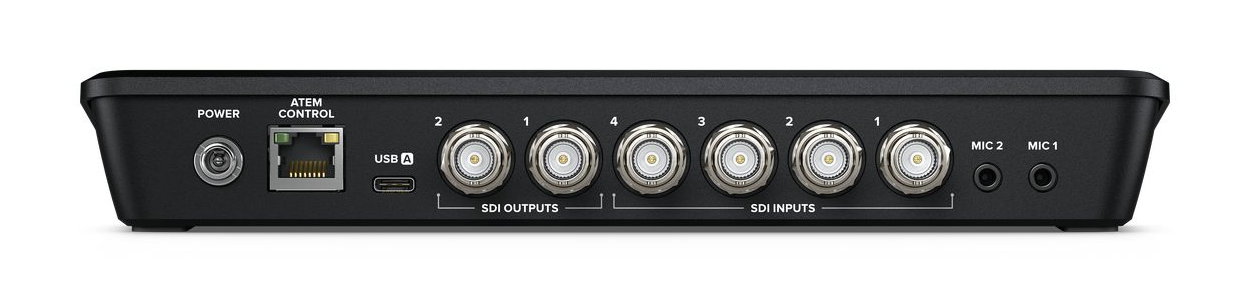

• 4x SDI bemenet, 2x SDI kimenet
• USB kimenet
• Videó streamelése akár 1080p HD felbontásban
• Élő közvetítés közvetlenül a YouTube-ra
• Könnyen kezelhető gombok
• Kompakt méret, gyorsan beállítható és könnyen használható
• 2 db független 3,5 mm-es sztereó audiobemenet, Fairlight hangkeverő
• Automatikusan konvertál bármilyen SDI bemeneti formátumot
• DVE, Chroma/Luma Keyers
• Beépített médiatár
• ATEM Software Control
• USB kimenet
• Videó streamelése akár 1080p HD felbontásban
• Élő közvetítés közvetlenül a YouTube-ra
• Könnyen kezelhető gombok
• Kompakt méret, gyorsan beállítható és könnyen használható
• 2 db független 3,5 mm-es sztereó audiobemenet, Fairlight hangkeverő
• Automatikusan konvertál bármilyen SDI bemeneti formátumot
• DVE, Chroma/Luma Keyers
• Beépített médiatár
• ATEM Software Control
• Blackmagic Design ATEM SDI Pro ISO
• Tápegység
• Jótállás: 1 év
• Tápegység
• Jótállás: 1 év
Blackmagic Design ATEM SDI Pro ISO Specifications |
|||
| Connections | |||
| Total Video Inputs | 4 | ||
| Total Outputs | 3 | ||
| Total Aux Outputs | 2 | ||
| Total Audio Inputs | 2 x 3.5mm stereo mini jack. | ||
| Total Audio Outputs | None, embedded audio only. | ||
| Timecode Connection | None | ||
| SDI Video Inputs | 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio. |
||
| Video Input Re-Sync | On all 4 SDI inputs. | ||
| Frame Rate and Format Converters | On all 4 SDI inputs. | ||
| SDI Program Outputs | 2 | ||
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. | ||
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. | ||
| Standards | |||
| HD Video Input Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
||
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | ||
| Video Streaming Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | ||
| Ultra HD Video Standards | None | ||
| Video Sampling | 4:2:2 YUV | ||
| Color Precision | 10-bit | ||
| Color Space | Rec 709 | ||
| Colorspace Conversion | Hardware based real time. | ||
| Product Specifics | |||
| Upstream Keyers | 1 | ||
| Downstream Keyers | 1 | ||
| Advanced Chroma Keyers | 1 | ||
| Linear/Luma Keyers | 2 | ||
| Transition Keyer | DVE only. | ||
| Total Number of Layers | 5 | ||
| Pattern Generators | 1 | ||
| Color Generators | 2 | ||
| DVE With Borders and Drop Shadow | 1 | ||
| Interface | Minimum monitor resolution of 1366 x 768. | ||
| Audio | |||
| Audio Mixer | 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
||
| Analog Input | Unbalanced stereo | ||
| Analog Input Delay | Up to 8 frames | ||
| Input Impedance | 1.8k | ||
| Max Input Level | +6dBV | ||
| Mic Plug In Power | Available on both 3.5mm mini jack connections. | ||
| Streaming | |||
| Direct Streaming | ATEM SDI Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. | ||
| Recording | |||
| Direct Recording Video and Audio | USB-C 3.1 Gen 1 expansion port can record directly to external media. | ||
| Video Recording | 4 x SDI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. |
||
| Audio Recording | 6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x SDI 2 channel embedded audio inputs. | ||
| Switching | Program switching recorded as a DaVinci Resolve project .drp file. | ||
| Media Format | Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. | ||
| Multi View Monitoring | |||
| Multi View Monitoring | 1 x 10 Views including left right configurable Program/Preview, 4 SDI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. | ||
| Multi View Video Standard | HD | ||
| Media Player | |||
| Media Players | 1 | ||
| Channels | Fill and key for each Media Player. | ||
| Media Pool Still Image Capacity | 20 with fill and key. | ||
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF. | ||
| Control | |||
| Control Panel | Built in control panel. Software control panel with camera control included. Supports optional hardware panel. | ||
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM SDI Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. | ||
| Control Panel Compatibility | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM SDI Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. | ||
| Control Panel Included | ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 64 bit or Windows 11. | ||
| Software | |||
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. | ||
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. | ||
| Other Specifications | |||
| Operating Systems | Mac 11.0 Big Sur, Mac 12.0 Monterey or later. Windows 10, 64-bit. Windows 11. |
||
| Power Requirements | Power Supply: 1 x External 12V power supply. Power Usage: 36W |
||
| Operating Temperature | 5° C to 40° C (41° - 104° F) | ||
| Relative Humidity | 0% to 90% non-condensing | ||
| Storage Temperature | -10° to 60° C (14° to 140° F) | ||
| What's Included |
ATEM SDI Pro ISO |
||
| Warranty |
12 Months Limited Manufacturer's Warranty. |
||
