Panasonic AG-CX350 UHD 4K HDR Kamera
Panasonic AG-CX350 UHD 4K HDR Kamera 1" MOS képérzékelővel, 24,5 mm nagylátószöggel.
20x optikai, 32x intelligens zoom. 5 tengelyes képstabilizálás.
Kapcsolódó termékek
Részletes leírás
Specifikáció
Csomag tartalma
Küldés
Értékelések

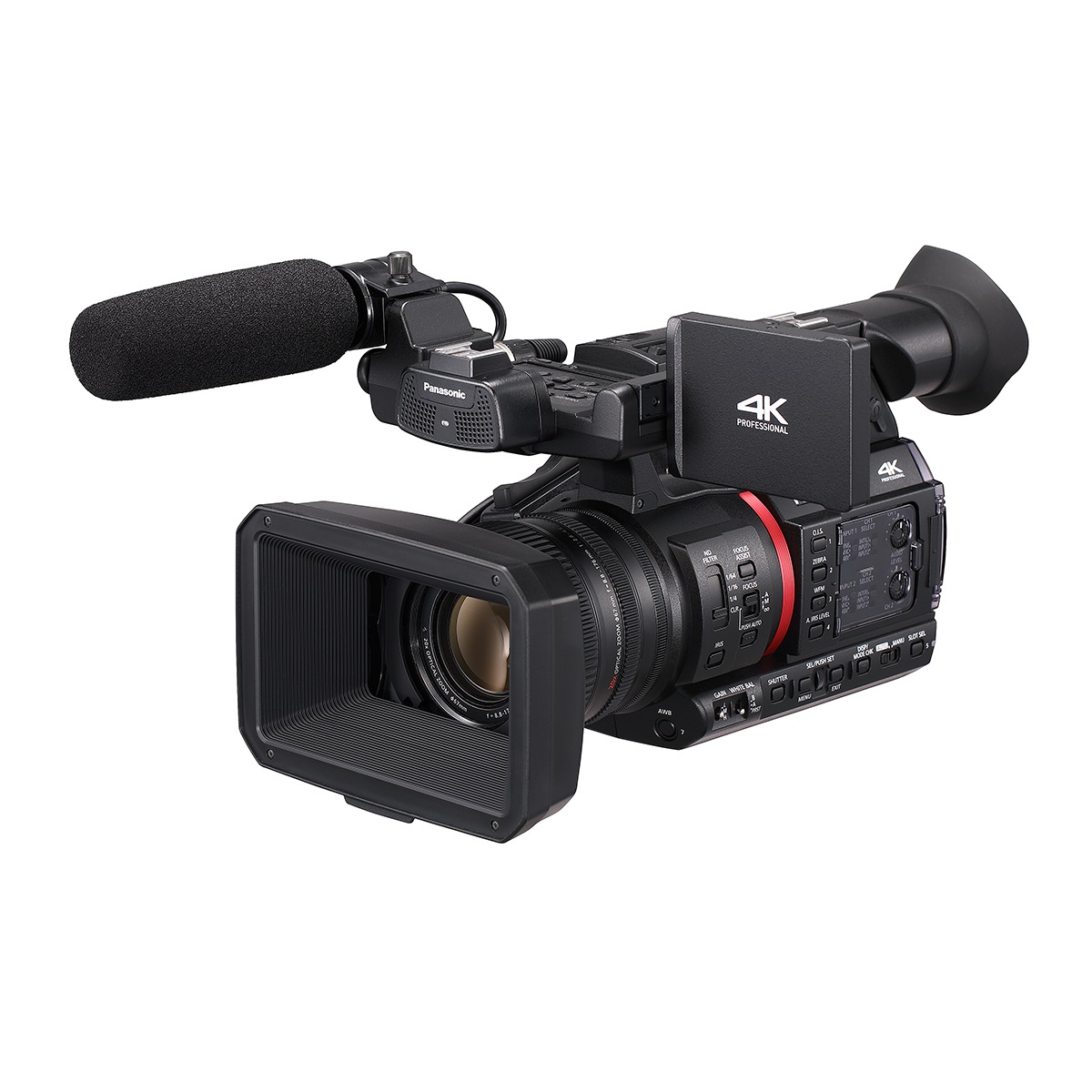

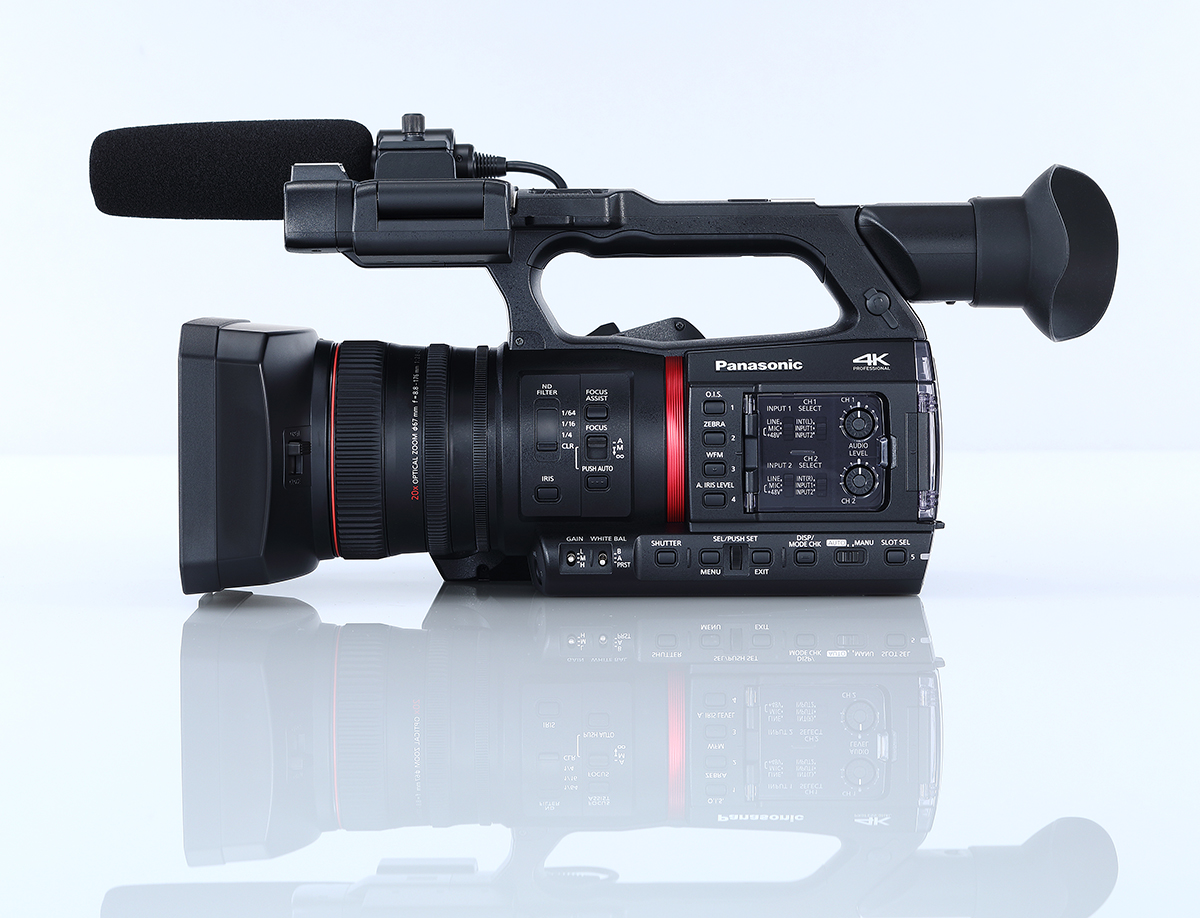

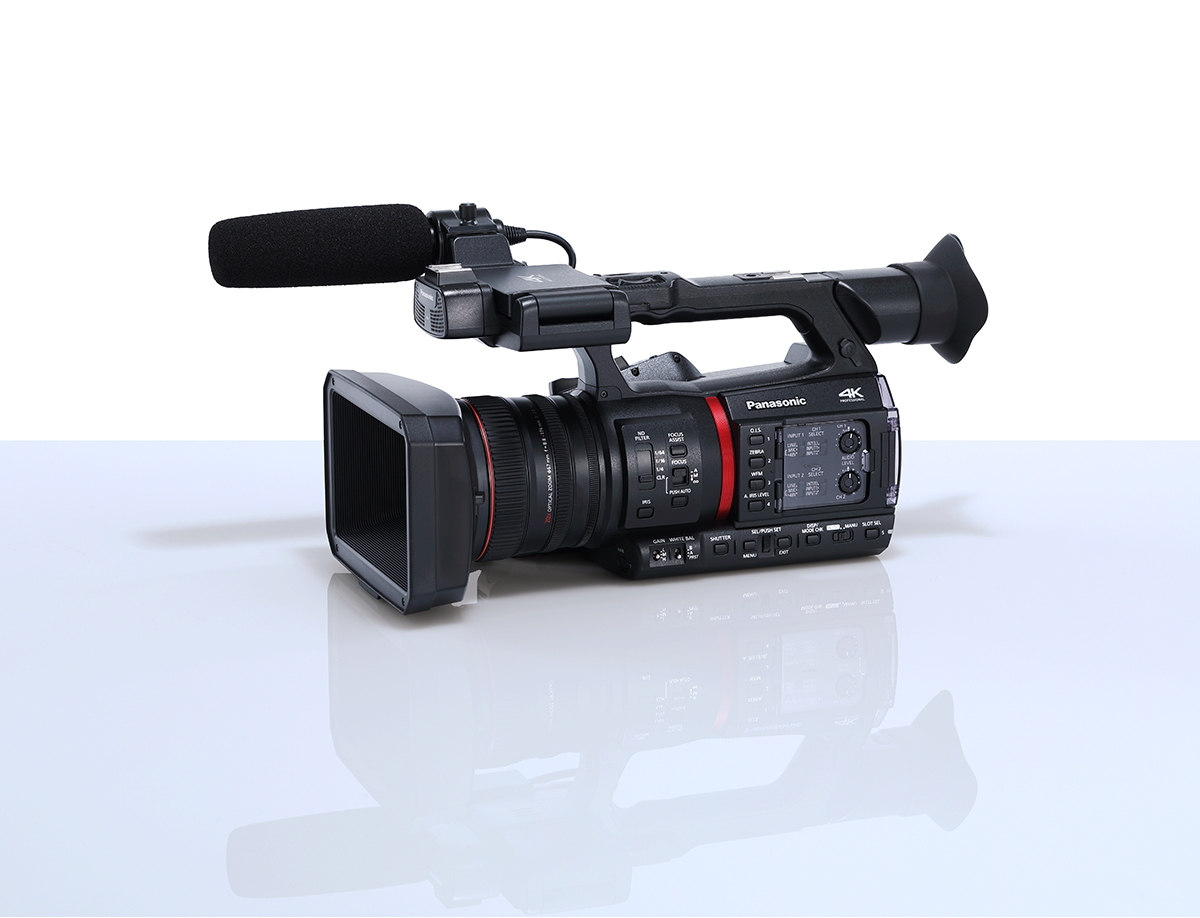

Panasonic AG-CX350 UHD 4K HDR Kamera
A Panasonic AG-CX350 UHD 4K HDR Kamera egy prémium minőségű kamkorder 1" MOS képérzékelővel, 20x optikai, 32x intelligens zoommal. Külön megvásárolható NDI HX és IP kontroll opcióval. TC ki/be, 3G-SDI, HDMI kimenet áll használója rendelkezésére. Emellett megtalálható: USB 3.0 Device, USB 2.0 Host, LAN Port. Szintén opcionális RTMP/RTSP live streaming.
Panasonic AG-CX350 UHD 4K HDR Kamera:
Panasonic AG-CX350 UHD 4K HDR Kamera bemutató videó
• Panasonic AG-CX350 4K Camcorder*
• AG-VBR59 akkumulátor
• AG-BRD50 akkutöltő
• AC adapter és kábel
• Microphone holder kit
• Vállszíj
• Szemkagyló
• Marok-pánt
,
* • puskamikrofont és memóriakártyát nem tartalmaz.
| General | |
| Power | DC 7.28 V (when the battery is used) DC 12 V (when the AC adaptor is used) |
| Power Consumption |
17 W (when the LCD monitor is used) 11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10 % to 80 % (no condensation) |
| Weight | Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories) Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder) |
| Dimensions | 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches) (excluding protrusion and eye cup) |
| Camera Unit | |
| Pickup Device | 1.0-type (effective size) MOS solid state image sensor |
| Effective Pixels | 15,030,000 pixel |
| Lens | Optical image stabilizer lens, optical 20x motorized zoom F value: F2.8 to F4.5 Focal length: f=8.8 mm to 176 mm 35 mm equivalent: 24.5 mm to 490 mm Filter Diameter: 67 mm ND Filter: Clear, 1/4, 1/16, 1/64 IR Filter: Incorporates the ON/OFF control function Shortest Shooting Distance (M.O.D.): Approx. 10 cm (W), 1.0 m (T) from the front lens |
| Gain Setting | L/M/H selector switch –3 dB to 18 dB (Adjustable in 1 dB steps) 24dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button) |
| Color Temperature Setting | ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K) |
| Shutter Speed | When [SYSTEM MODE] = 59.94 Hz • 59.94i/59.94p mode: 1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. • 29.97p mode: 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. • 23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. • 25p mode: 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. |
| Shutter Speed: (Slow Shutter) |
When [SYSTEM MODE] = 59.94 Hz • 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec. • 29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec. • 23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec. • 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. |
| Shutter Speed: (Synchro Scan) |
When [SYSTEM MODE] = 59.94 Hz • 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec. • 29.97p mode: 1/30.0 sec. to 1/7200 sec. • 23.98p mode: 1/24.0 sec. to 1/7200 sec. When [SYSTEM MODE] = 50.00 Hz • 50i/50p mode: 1/50.0 sec. to 1/7200 sec. • 25p mode: 1/25.0 sec. to 1/7200 sec. |
| Shutter Open Angle | 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps) |
| VFR Recording Frame Rate | When [SYSTEM MODE] = 59.94 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps) When [SYSTEM MODE] = 50.00 Hz 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps) |
| Super Slow Recording | When [SYSTEM MODE] = 59.94 Hz 1920 x 1080 (FHD): shooting frame rate 120 fps When [SYSTEM MODE] = 50.00 Hz 1920 x 1080 (FHD): shooting frame rate 100 fps |
| Sensitivity | When [HIGH SENS.] mode F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i) |
| Horizontal Resolution | 2000 TV or higher (UHD: center) 1000 TV or higher (FHD: center) |
| i.Zoom | ×32 (FHD), ×24 (UHD) |
| Digital Zoom | ×2/×5/×10 |
| Lens Hood | Hood with lens cover |
| Memory Card Recorder | |
| Recording Media | SDHC memory card (4 GB to 32 GB), SDXC memory card (32 GB to 128 GB) UHS-I/UHS-II UHS Speed Class3 supported, Video Speed Class V90 supported microP2 card (A series, B series) Please see back cover for the “Available Memory Card” table. |
| Recording Slot | microP2/SDXC UHS-II card slot x 2 |
| Recording Pixels | 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD), 720 × 480(SD), 720 × 576 (SD) |
| System Frequency | 59.94 Hz/50.00 Hz |
| Recording File Format | MOV (AVC), MOV (HEVC), AVCHD |
| Recording Format | Please see page 4 for the “Recording Format” table |
| Recording Time | Please see back cover for the “Recording Time” table. |
| 2 Slot Functions | Relay Rec, Simultaneous Rec, Background Rec |
| Special Recording Functions | Pre Rec, Interval Rec, Time Stamp |
| Digital Video | |
| Quantization | MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC) AVCHD: 4:2:0 8 bit |
| Video Compression Format | H.264/MPEG-4 AVC High Profile H.265/MPEG-H HEVC Main10 Profile |
| Digital Audio | |
| Recording Audio Signal | MOV: 48 kHz/24 bit, 2 ch, Linear PCM AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™ |
| Headroom | 12 dB/18 dB/20 dB switchable (menu) |
| Live Streaming | |
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile |
| Audio Compression Format | AAC-LC |
| Network Protocol | RTSP/RTP/RTMP |
| Video Output | |
| SDI OUT | BNC x 1, SDI REC REMOTE supported HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω, Output format (4:2:2 10 bit): • 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF • 1280 × 720: 59.94p, 50p • 720 × 480: 59.94i • 720 × 576: 50i |
| HDMI OUT | HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported Output format (4:2:2 10 bit): • 3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p • 1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p • 1280 × 720: 59.94p, 50p • 720 × 480: 59.94p • 720 × 576: 50p |
| VIDEO OUT | 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω |
| Audio Input/Output | |
| Built-in Microphone | Stereo microphone |
| Input 1/2 | XLR (3-pin) x 2 (INPUT1, INPUT2) Input high impedance, LINE/MIC/MIC+48V (switchable SW) MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu) LINE: +4 dBu/0 dBu (switchable menu) |
| SDI OUT | Linear PCM 2 ch |
| HDMI OUT | Linear PCM 2 ch |
| Headphone | 3.5 mm diameter stereo mini jack x 1 |
| AV OUT | 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV |
| Speaker | 20 mm diameter, round x 1 |
| Other Input/Output | |
| TC IN/OUT | BNC x 1, Used as the input and output terminals (switchable menu) Input: 1.0 V to 4.0 V [p-p] 10 KΩ Output: 2.0 V ± 0.5 V [p-p] low impedance |
| REMOTE | 2.5 mm diameter super mini jack |
| LAN | RJ-45: 1000BASE-T/100BASE-TX/10BASE-T |
| USB 2.0 HOST | Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option) |
| USB 3.0 DEVICE | USB 3.1 GEN1 Type-C, USB Mass storage function No USB bus power function |
| DC IN 12V | DC 12 V EIAJ Type 4 |
| Monitor/Viewfinder | |
| LCD Monitor | 3.5 type TFTLCD color monitor (3:2), approx. 1,620,000 dots, Touch panel video display (16: 9) area: Approx. 1,370,000 dots |
| Viewfinder | 0.39 type OLED (organic EL display), approx. 2,360,000 dots, video display (16: 9) area: approx. 1,770,000 dots |
| Included Accessories | Battery (AG-VBR59), Battery charger (AG-BRD50), AC adaptor, AC cable, Microphone holder kit, Shoulder strap, Eye cup, Lens hood*, Grip belt* and Operating instructions (Items marked by an asterisk (*) come already attached to the camera) |
