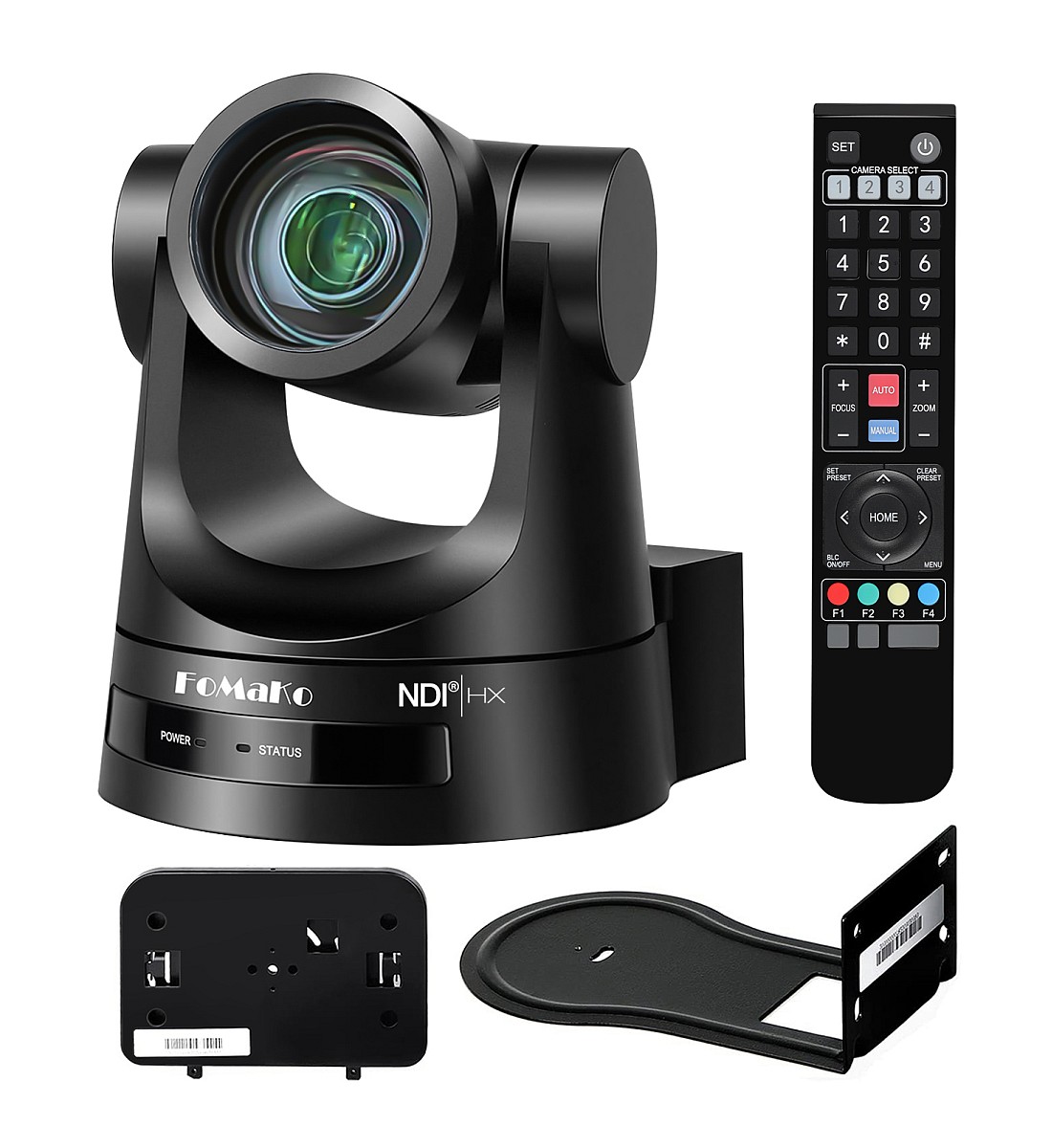

FoMaKo KN12A FullHD NDI|HX PTZ Robotkamera
Nagyításhoz kattintson a képre vagy használja felette az egérgörgőt!
• Full HD NDI|HX PTZ robotkamera
• 12x-es optikai zoom
• Interfész: párhuzamos SDI-HDMI kimenet, LAN (POE), USB 2.0, RS232 (in/out), RS422/485
• Kiemelkedő képminőségű
• Könnyen kezelhető
• Támogatja a H.264/H.265 kódolást
• Kompatibilis a vMix, OBS és más live video streaming szoftverekkel
• Magas SNR CMOS, 2D és 3D zajcsökkentés
FoMaKo KN12A Specifications |
|||
| Camera Parameter | |||
|
Optical Zoom
|
12X f＝4.1-49.2mm |
||
|
Sensor
|
1/2.8 inch high quality HD CMOS sensor | ||
|
Effective Pixels
|
16: 9, 2.07 megapixel | ||
|
Video Format
|
HDMI/SDI： 1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、1080P29.97、720P59.94； USB2.0: H264/H265/MJPEG: |
||
|
View Angle
|
6.6°（N）70.3°（W） | ||
|
AV
|
F1.8 – F2.68 | ||
|
Digital Zoom
|
10X | ||
|
Minimum
Illumination |
0.5 Lux (F1.8, AGC ON) | ||
|
DNR
|
2D & 3D DNR | ||
|
White Balance
|
Auto/Manual/One-push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||
|
Focus Mode
|
Auto/Manual/One Push Focus | ||
|
Exposure Mode
|
Auto/Manual/Shutter Priority, Aperture Priority, Brightness Priority | ||
|
Iris
|
Auto/Manual | ||
|
Electronic Shutter
|
Auto/Manual | ||
| BLC | ON/OFF | ||
| WDR | OFF/ Dynamic level adjustment | ||
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | ||
| SNR | >55 dB | ||
| Input/Output Interface | |||
|
Video Interfaces
|
HDMI、SDI、LAN(POE)、USB2.0、A-IN、RS232-IN、RS232-OUT、RS422(compatible with RS485)、DC12V Power Supply、Rotary Dip Switch、Power Switch | ||
|
Video Output
|
HDMI, SDI, LAN,USB2.0 | ||
|
Video Stream
|
Dual stream output | ||
|
Video Format
|
Main Stream: 1920×1080, 1280×720, 640×480 |
||
|
Video Bitrate
|
64Kbps～40960Kbps | ||
|
Video Compression Format
|
LAN：H.264、H.265 USB 2.0：MJPG、H264、H.265、YUY2、NV12 |
||
|
Audio Input Interface
|
Double track 3.5mm linear input | ||
|
Audio Output Interface
|
HDMI, SDI, LAN | ||
|
Audio Compression
Format |
AAC/MP3/G.711A | ||
| Audio Bitrate | 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps | ||
| Network Interface | 100M Ethernet port（10/100BASE-TX） | ||
| Control Interface | RS232 (IN/OUT), RS485, RS422 | ||
| Control Protocol | VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps | ||
| Power Interface | HEC3800 outlet (DC12V) | ||
| Power Supply | Input AC110V-AC220V; Output DC12V/2.0A | ||
| Input Voltage | DC12V±10% | ||
| Input Current | Maximum: 1A | ||
| Power Consumption | Maximum: 12W | ||
| Network Protocols | TCP/IP, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI, ONVIF, GB/T28181; Support Network VISCA control protocol； Support remote upgrade, reboot and reset |
||
| PTZ Parameter | |||
| Pan/Tilt Rotation | ±170°, -30°～+90° | ||
| Pan Control Speed | 1.4 - 40°/sec | ||
| Tilt Control Speed | 2.9 - 30°/sec | ||
| Preset Speed | Pan: 40°/sec, Tilt: 30°/sec | ||
| Preset Accuracy | ±0.1° | ||
| Preset Number | 255 presets (10 presets via remote control) | ||
| Other Parameter | |||
| Stored Temperature | -10℃~+60℃ | ||
| Stored Humidity | 20%~95% | ||
| Working Temperature | -10℃~+50℃ | ||
| Working Humidity | 20%~80% | ||
| Dimension | 143mm×176mm×169mm | ||
| Weight | 1.2KG | ||
| Accessory | |||
| Package | Power Supply, RS232 Control Cable, IR Remote Control, User Manual | ||
| Optional Accessories | Ceiling / wall Mount (Extra Cost) | ||
• 1x FoMaKo KN12A robotkamera
• 1x távvezérlő
• 1x tápegység
• 1x RS232 kábel
• Kézikönyv
• Néhány csavar
• Jótállás: 1 év
Opcionális fali/mennyezeti konzol
• 1x távvezérlő
• 1x tápegység
• 1x RS232 kábel
• Kézikönyv
• Néhány csavar
• Jótállás: 1 év
Opcionális fali/mennyezeti konzol
